THROTTLE BODY (MODEL K2/K3)

GSX1300RZ HAYABUSA 2002 (K2) USA (E03)

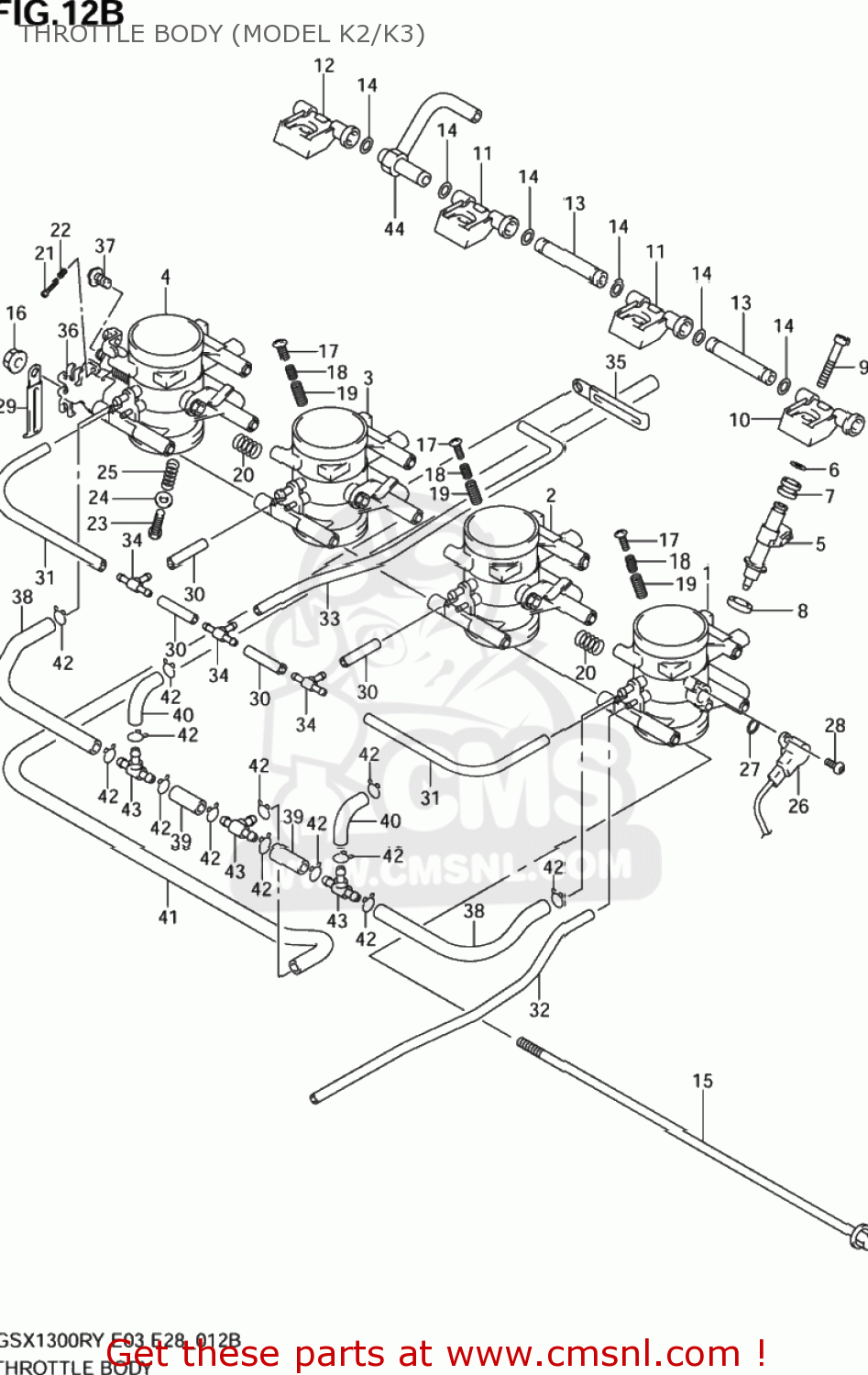

Throttle body (model k2/k3) diagram GSX1300RZ HAYABUSA 2002 (K2) USA (E03)

THROTTLE BODY (MODEL K2/K3) GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
THROTTLE BODY (MODEL K2/K3) GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
THROTTLE BODY (MODEL K2/K3) GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1340124FJ0
ref: 1-1
THROTTLE BODY ASSY, LH
€ 0.00
1-2
1340124FH0
ref: 1-2
THROTTLE BODY ASSY,L
€ 0.00
2-1
1340224FJ0
ref: 2-1
THROTTLE BODY ASSY ML
€ 0.00
2-2
1340224FH0
ref: 2-2
THROTTLE BODY ASSY ML
€ 0.00
3-1
1340324FJ0
ref: 3-1
THROTTLE BODY ASSY MR
€ 0.00
3-2
1340324FH0
ref: 3-2
THROTTLE BODY ASSY MR
€ 0.00
4-1
1340424FJ0
ref: 4-1
THROTTLE BODY ASSY, RH
€ 0.00
4-2
1340424FH0
ref: 4-2
THROTTLE BODY ASSY,R
€ 0.00
5
1571024F00
ref: 5
INJECTOR ASSY
1571024F00
€ 311.00
6
1572124F00
ref: 6
O RING
1572124F00
€ 7.50
7
1572224F00
ref: 7
RING,CUSHION
1572224F00
€ 13.00
8
1367224F00
ref: 8
RING,SEAL
1367224F00
€ 16.00
9
1360135F00
ref: 9
SCREW
1360135F00
€ 7.00
10
1347135F00
ref: 10
JOINT,NO.1
1347135F00
€ 27.00
11
1347135F10
ref: 11
JOINT,NO.2,3
€ 31.50
12
1347135F20
ref: 12
JOINT,NO.4
1347135F20
€ 29.00
13
1347424F00
ref: 13
JOINT
€ 29.00
14
1572124F00
ref: 14
O RING
1572124F00
€ 7.50
15
1361124F00
ref: 15
BOLT
€ 20.00
16
1360724F00
ref: 16
NUT
€ 2.00
17
1342335F00
ref: 17
SCREW,STOP
1342335F00
€ 7.00
18
1354324F00
ref: 18
SPRING
1354324F00
€ 4.50
19
1326803F50
ref: 19
SPRING
1326803F50
€ 5.00
20
1354324F20
ref: 20
SPRING
€ 3.50
21
1360224F10
ref: 21
SCREW
€ 4.00
22
1354324F30
ref: 22
SPRING
€ 3.50
23
1326735F00
ref: 23
SCREW,STOP
1326735F00
€ 26.00
24
1327324F00
ref: 24
WASHER
1327324F00
€ 3.00
25
1327124F00
ref: 25
SPRING
1327124F00
€ 4.50
26
1358040F20
ref: 26
SENSOR ASSY,TH
1358040F20
€ 163.50
27
1357524F00
ref: 27
O RING
1357524F00
€ 4.50
28
1360540F00
ref: 28
SCREW
1360540F00
€ 3.00
29-1
1343224F10
ref: 29-1
CLAMP
€ 7.50
29-2
1361924F10
ref: 29-2
CLAMP
€ 0.00
30
1369724F00
ref: 30
HOSE,RUBBER(L:35)
1369724F00
€ 2.50
31
1369724F20
ref: 31
HOSE,RUBBER(L:100)
1369724F20
€ 3.50
32
1369724F30
ref: 32
HOSE,RUBBER(L:200)
€ 9.00
33
1369724FA0
ref: 33
HOSE,RUBBER(L:230+20)
€ 18.00
34
1347124F30
ref: 34
JOINT
1347124F30
€ 11.50
35
1343224FA0
ref: 35
BAND
€ 7.00
36
1356524F00
ref: 36
PLATE,STAY
€ 73.00
37
1360124F00
ref: 37
SCREW
€ 4.50
38
1369824F00
ref: 38
HOSE,RUBBER(L:80+25)
€ 0.00
39
1369824F10
ref: 39
HOSE,RUBBER(L:35)
€ 0.00
40
1369824F20
ref: 40
HOSE,RUBBER(L:30+30)
€ 0.00
41
1369824F30
ref: 41
HOSE,RUBBER(L:440+30)
€ 0.00
42
1369324F00
ref: 42
CLIP
€ 2.00
43
1368536E50
ref: 43
JOINT
€ 8.00
44
1347335F01
ref: 44
JOINT
1347335F01
€ 82.00
