CRANKCASE (MODEL D)

GSX250 1982 (Z) GENERAL EXPORT (E01)

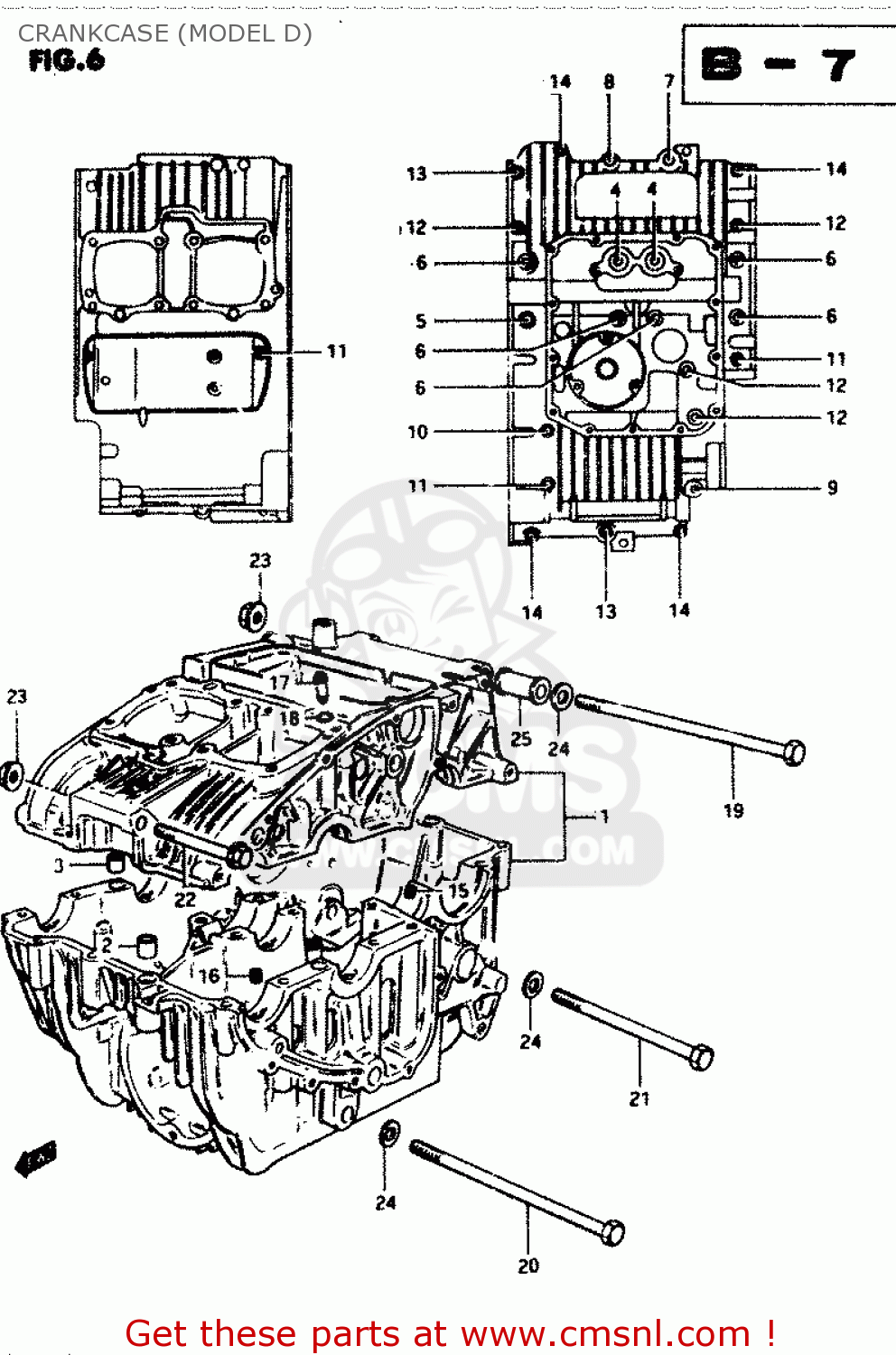

Crankcase (model d) diagram GSX250 1982 (Z) GENERAL EXPORT (E01)

CRANKCASE (MODEL D) GSX250 1982 (Z) GENERAL EXPORT (E01)

CRANKCASE (MODEL D) GSX250 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1130011880
ref: 1

CRANKCASE SET

€ 1,442.00

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611005
ref: 3

PIN (11X20)(SUS)

€ 6.50

4

0910608014
ref: 4

BOLT

€ 4.00

5

0910308078
ref: 5

BOLT

€ 8.00

6

0910308025
ref: 6

BOLT

€ 3.00

7

0151708655
ref: 7

BOLT (8X65)

€ 3.00

8

0151708505
ref: 8

BOLT (8X50)

€ 2.50

9

0151708408
ref: 9

BOLT (8X40)

€ 3.50

10

0910306033
ref: 10

BOLT(6X125)

€ 3.50

11

0910306067
ref: 11

BOLT(6X105)

€ 3.50

12

0151706905
ref: 12

BOLT (6X90)

€ 3.50

13

0151706605
ref: 13

BOLT ,6X60

€ 2.50

14

0151706455
ref: 14

BOLT (6X45)

€ 2.50

15

0949320012
ref: 15

JET,AIR(100)

€ 12.00

16

0949340001
ref: 16

JET,AIR

€ 11.50

17

0949340002
ref: 17

JET,AIR

€ 16.00

18

0928003003
ref: 18

O RING(D:1.05,ID:3.1)

€ 2.50

19

0910010145
ref: 19

BOLT

€ 46.50

20

0910010142
ref: 20

BOLT

€ 0.00

21

0910010136
ref: 21

BOLT

€ 28.50

22

0151710905
ref: 22

BOLT (10X90)

€ 4.00

23

0831931105
ref: 23

NUT 10MM

€ 3.00

24

0832211105
ref: 24

WASHER

€ 2.50

25

1161011410
ref: 25

SPACER,ENGINE MOUNT

€ 9.50
