FRAME

GSX250 1982 (Z) GENERAL EXPORT (E01)

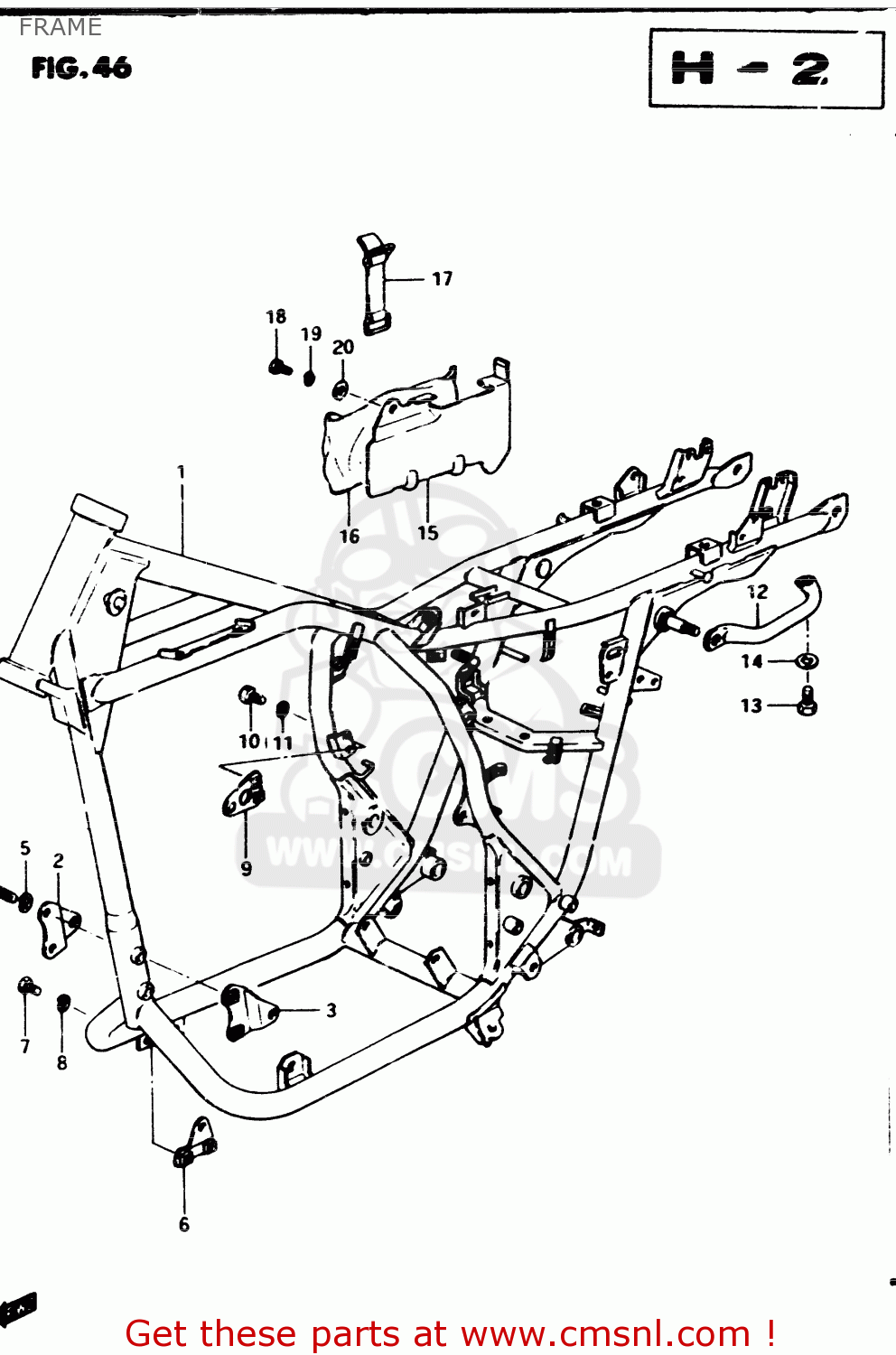

Frame diagram GSX250 1982 (Z) GENERAL EXPORT (E01)

FRAME GSX250 1982 (Z) GENERAL EXPORT (E01)
FRAME GSX250 1982 (Z) GENERAL EXPORT (E01)
FRAME GSX250 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
4110011500019
ref: 1-1
FRAME (BLACK)
€ 945.00
1-2
4110011540019
ref: 1-2
E17
FRAME (BLACK)
€ 0.00
1-3
4110011530019
ref: 1-3
E18
FRAME (BLACK)
€ 0.00
1-4
4110011520019
ref: 1-4
E22,E26
FRAME (BLACK)
€ 0.00
2
4199111500019
ref: 2
PLATE,MOUNTING NO.1,RIGHT
€ 0.00
3
4192011500019
ref: 3
PLATE,ENGINE MOUNTING
€ 0.00
4
0110708608
ref: 4
BOLT
€ 2.50
5
0832121088
ref: 5
LOCK WASHER
0832121088
€ 2.00
6
4192044110019
ref: 6
PLATE,MOUNTING NO.2,LEFT
€ 0.00
7
0110708168
ref: 7
BOLT
€ 2.00
8
0832121088
ref: 8
LOCK WASHER
0832121088
€ 2.00
9
4197011500019
ref: 9
PLATE,MOUNTING NO.4,LEFT
€ 12.00
10
0110708168
ref: 10
BOLT
€ 2.00
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12
4161011500
ref: 12
GRIP,FRAME HANDLE
4161011500
€ 17.00
13
0110708168
ref: 13
BOLT
€ 2.00
14
0832211088
ref: 14
WASHER
0832211088
€ 2.00
15
4743044400
ref: 15
HOLDER,TOOL
€ 11.50
16
0980006800
ref: 16
TOOL SET
€ 52.00
17
0946200072
ref: 17
BAND
0946200072
€ 3.50
18
0110706108
ref: 18
BOLT
€ 2.00
19
0832121068
ref: 19
LOCK WASHER
0832121068
€ 2.50
20
0832221068
ref: 20
WASHER
0832221068
€ 2.00
