RIGHT HANDLE SWITCH (MODEL Z)

GSX250 1982 (Z) GENERAL EXPORT (E01)

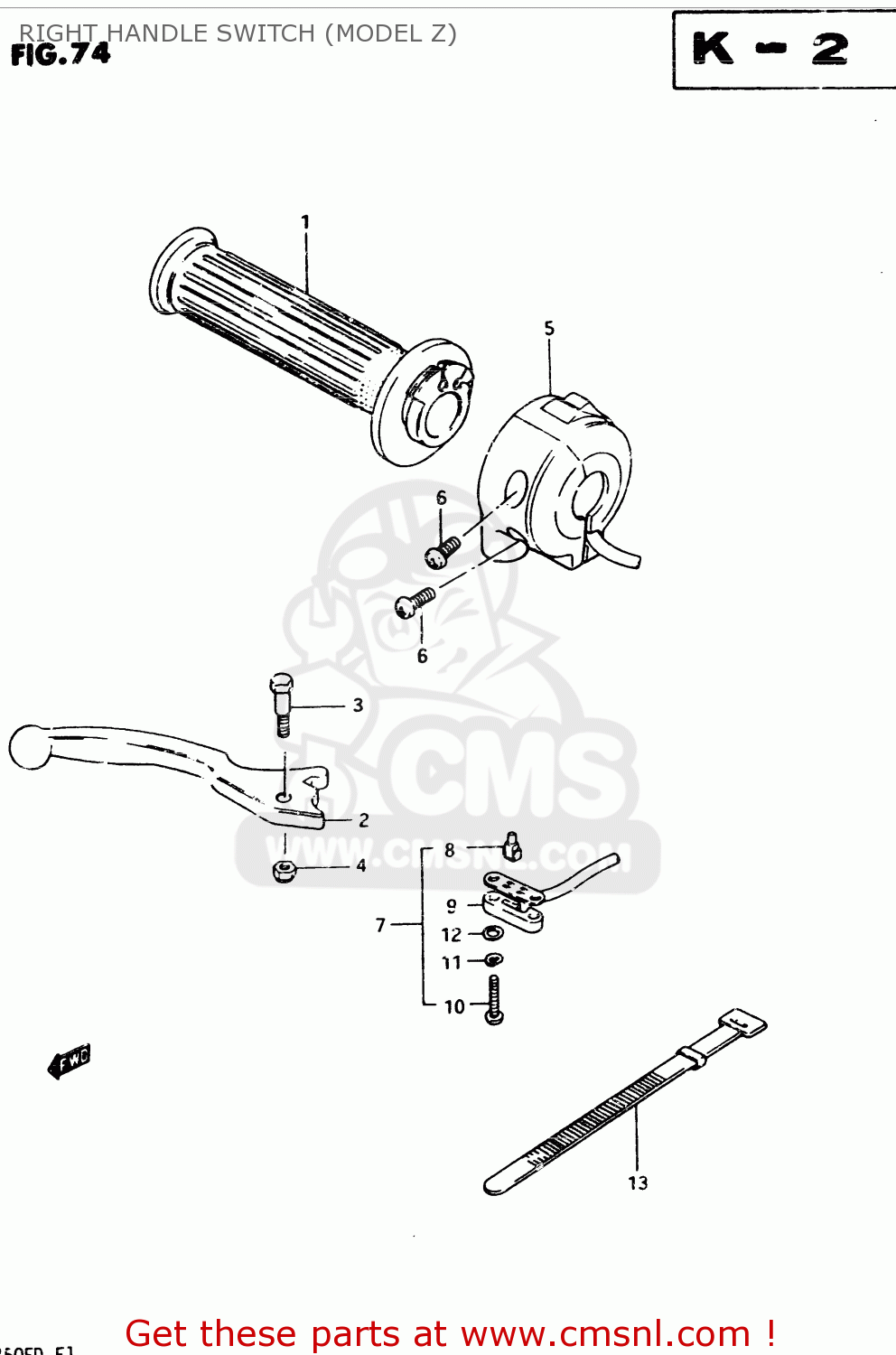

Right handle switch (model z) diagram GSX250 1982 (Z) GENERAL EXPORT (E01)

RIGHT HANDLE SWITCH (MODEL Z) GSX250 1982 (Z) GENERAL EXPORT (E01)

RIGHT HANDLE SWITCH (MODEL Z) GSX250 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5711044011
ref: 1

GRIP,THROTTLE

€ 33.00

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743118621
ref: 3

BOLT

€ 8.00

4

0831921068
ref: 4

NUT 6MM

€ 2.00

5-1

3720049410
ref: 5-1

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 107.00

5-2

3720049420
ref: 5-2
E4,E17,E18,E22,E26,E

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 124.00

6

3759149210
ref: 6

SCREW

€ 2.50

7

5746049300
ref: 7
E4,E6,E17,E18,E21,E2

SWITCH ASSEMBLY

€ 40.00

8

5746518601
ref: 8
E4,E6,E17,E18,E21,E2

CONTACT,SWITCH

€ 4.50

9

5748133010
ref: 9
E4,E6,E17,E18,E21,E2

COVER,FR BK TERMINAL BASE

€ 19.50

10

0912503105
ref: 10
E4,E6,E17,E18,E21,E2

SCREW

€ 2.50

11

0832121038
ref: 11
E4,E6,E17,E18,E21,E2

LOCK WASHER

€ 1.50

12

0832221038
ref: 12
E4,E6,E17,E18,E21,E2

WASHER

€ 2.00

13

0940712402
ref: 13

CLAMP(L:120)

€ 3.00
