CYLINDER HEAD

GSX250 1982 (Z) GENERAL EXPORT (E01)

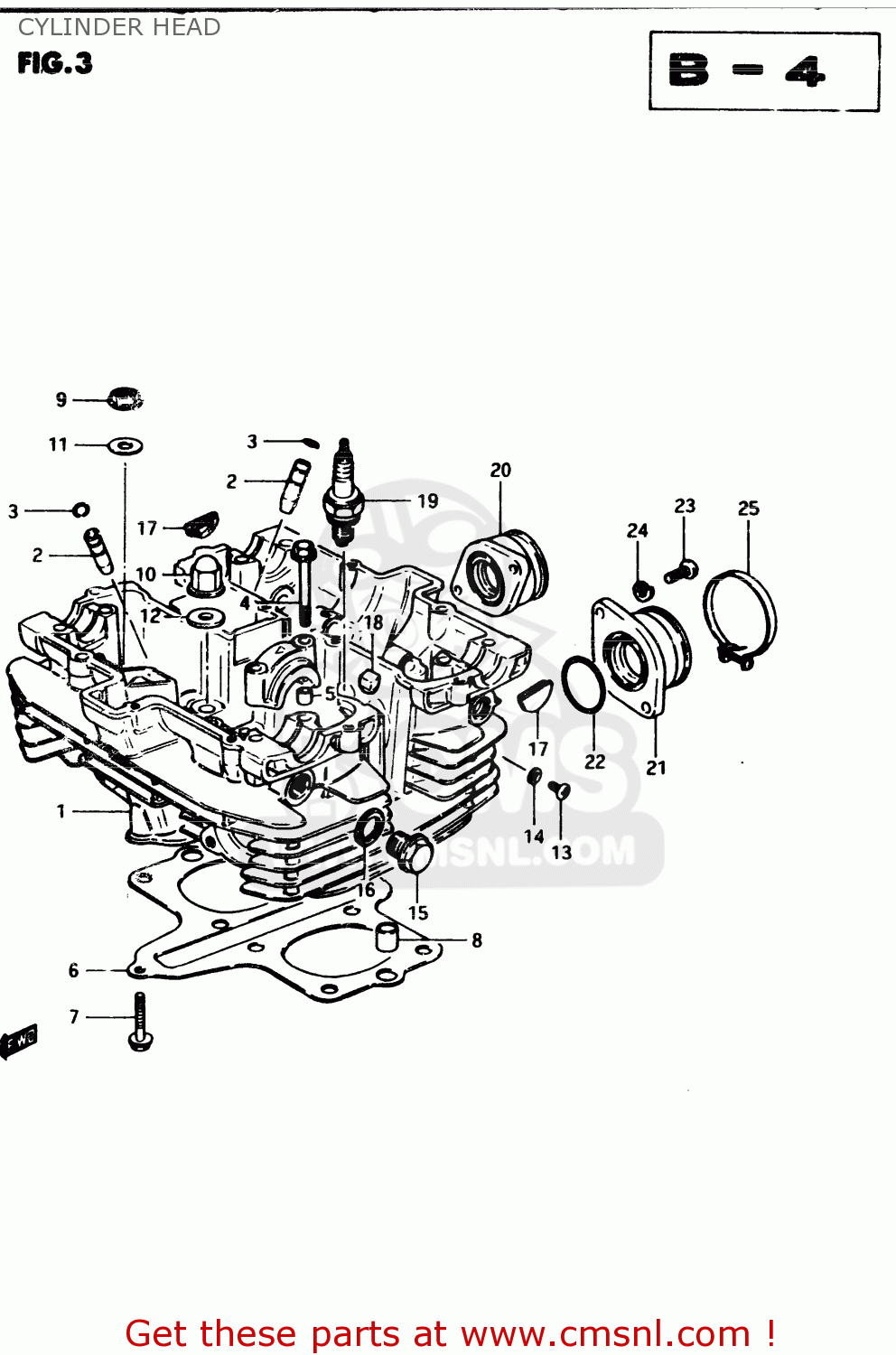

Cylinder head diagram GSX250 1982 (Z) GENERAL EXPORT (E01)

CYLINDER HEAD GSX250 1982 (Z) GENERAL EXPORT (E01)

CYLINDER HEAD GSX250 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1110011420
ref: 1-1
MODEL Z

HEAD ASSEMBLY,CYLINDER

€ 453.50

1-2

1110011450
ref: 1-2
MODEL D

HEAD ASSEMBLY,CYLINDER

€ 453.50

2

1111511470
ref: 2

GUIDE,INTAKE VALVE

€ 15.00

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0910306026
ref: 4

BOLT(6X39)

€ 2.00

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

1114111401
ref: 6

GASKET,CYLINDER HEAD (MCA)

€ 50.50

7-1

0151706308
ref: 7-1
MODEL Z

BOLT

€ 2.00

7-2

0151706305
ref: 7-2
MODEL D

BOLT 6X30

€ 2.50

8

0421111189
ref: 8

PIN

€ 2.00

9

0915908031
ref: 9

NUT

€ 2.00

10

0915908029
ref: 10

NUT

€ 6.00

11

0916008039
ref: 11

WASHER(8.5X19X2.3)

€ 2.00

12

0916808013
ref: 12

GASKET(8.5X20X2.3) (NAS)

€ 4.50

13

0211205088
ref: 13

SCREW

€ 2.00

14

0916805010
ref: 14

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

15

0924714012
ref: 15

PLUG (14X12)

€ 3.50

16

0916814004
ref: 16

GASKET(14X19.2X2) (NAS)

€ 2.50

17

0924123002
ref: 17

PLUG

€ 8.50

18

1115145000
ref: 18

PAD,CYLINDER HEAD

€ 3.00

19-1

0948200184
ref: 19-1

SPARK PLUG D9EA

€ 6.50

19-2

0948200185
ref: 19-2

SPARK PLUG X27ES-U

€ 0.00

19-3

0948200221
ref: 19-3
E2,E4,E6,E17,E18,E21

PLUG,SPARK(DR8ES)

€ 5.50

19-4

0948200224
ref: 19-4
E2,E4,E6,E17,E18,E21

PLUG,SPARK(X27ESR-U)

€ 9.50

20

1311011400
ref: 20

PIPE,INTAKE,R

€ 33.50

21

1312011400
ref: 21

PIPE,INTAKE,L

€ 31.50

22

0928030004
ref: 22

O-RING (D:2.4 ID:29.7)

€ 10.50

23-1

0211206208
ref: 23-1
MODEL Z

SCREW

€ 2.00

23-2

0211206205
ref: 23-2
MODEL D

SCREW

€ 2.00

24-1

0832121068
ref: 24-1
MODEL Z

LOCK WASHER

€ 2.50

24-2

0832121065
ref: 24-2
MODEL D

LOCK WASHER

€ 2.00

25

0940248306
ref: 25

CLAMP

€ 4.50
