CARBURETOR (MODEL Z)

GSX250 1983 (D) GENERAL EXPORT (E01)

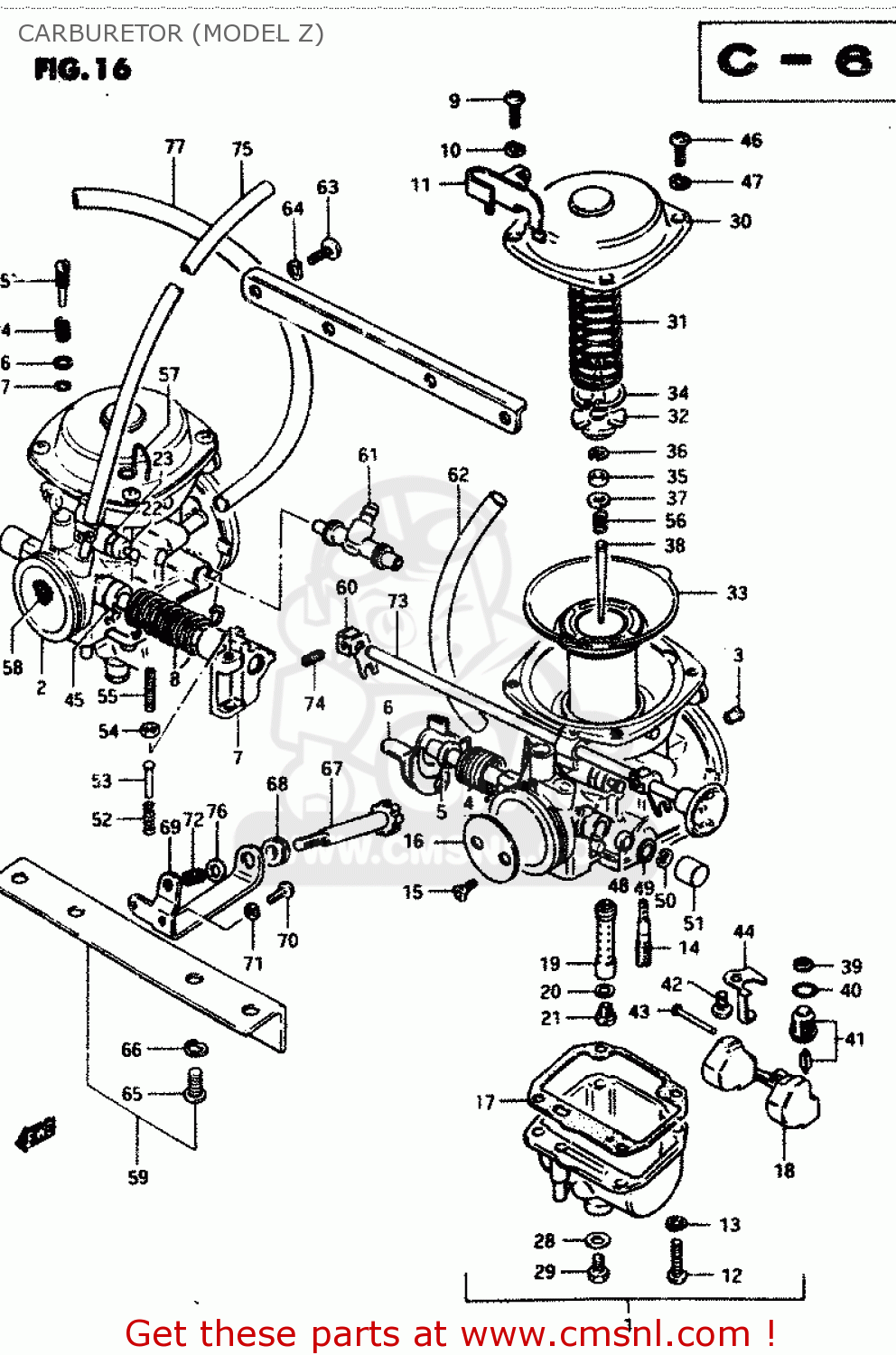

Carburetor (model z) diagram GSX250 1983 (D) GENERAL EXPORT (E01)

CARBURETOR (MODEL Z) GSX250 1983 (D) GENERAL EXPORT (E01)
CARBURETOR (MODEL Z) GSX250 1983 (D) GENERAL EXPORT (E01)
CARBURETOR (MODEL Z) GSX250 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
1320111450
ref: 1-1
CARBURETOR, LH
€ 0.00
1-2
1320111460
ref: 1-2
E4
CARBURETOR, LH
€ 0.00
1-3
1320111970
ref: 1-3
E18
CARBURETOR, LH
€ 0.00
1-4
1320111470
ref: 1-4
E22
CARBURETOR, LH
€ 0.00
1-5
1320111480
ref: 1-5
E24
CARBURETOR, LH
€ 0.00
2-1
1320211450
ref: 2-1
CARBURETOR, RH
€ 0.00
2-2
1320211460
ref: 2-2
E4
CARBURETOR, RH
€ 0.00
2-3
1320211970
ref: 2-3
E18
CARBURETOR, RH
€ 0.00
2-4
1320211470
ref: 2-4
E22
CARBURETOR, RH
€ 0.00
2-5
1320211480
ref: 2-5
E24
CARBURETOR, RH
€ 0.00
3-1
0949126001
ref: 3-1
JET, PILOT AIR (132.5)
€ 18.50
3-2
0949127008
ref: 3-2
E22
JET,MAIN(135)
0949127008
€ 11.50
4
1357311400
ref: 4
LH
SPRING
€ 0.00
5
1357445110
ref: 5
LH
RING
€ 3.50
6
1355011400
ref: 6
LH
SHAFT ASSEMBLY
1355011400
€ 44.50
7
1355011410
ref: 7
RH
SHAFT ASSEMBLY
€ 0.00
8
1357311410
ref: 8
RH
SPRING
€ 0.00
9
0211205128
ref: 9
LH
SCREW
€ 2.50
10
0832121058
ref: 10
LH
LOCK WASHER
0832121058
€ 2.00
11
1362711400
ref: 11
BRACKET
€ 0.00
12
0211204208
ref: 12
SCREW
0211204208
€ 1.00
13
0832121048
ref: 13
LOCK WASHER
0832121048
€ 2.00
14
0949217008
ref: 14
JET
€ 10.50
15
1360444080
ref: 15
SCREW
1360444080
€ 3.50
16-1
1355111400
ref: 16-1
VALVE,THROTTLE (BUTTERFLY)
€ 0.00
16-2
1355111470
ref: 16-2
E22
VALVE, THROTTLE
€ 0.00
17
1325111400
ref: 17
GASKET,FLOAT CAHMBER (NAS)
1325111400
€ 10.50
18
1325044080
ref: 18
FLOAT
1325044080
€ 31.00
19-1
0949400306
ref: 19-1
JET,NEEDLE(P-1)
€ 24.50
19-2
0949400308
ref: 19-2
E22
JET, NEEDLE (P-3)
0949400308
€ 19.00
20
1333244080
ref: 20
WASHER,NEEDLE NOZZLE
€ 2.50
21-1
0949123017
ref: 21-1
JET,MAIN(117.5)
0949123017
€ 11.00
21-2
0949123011
ref: 21-2
E4
JET,MAIN(115)
0949123011
€ 10.50
21-3
0949122015
ref: 21-3
E22
JET,MAIN(112.5)
0949122015
€ 11.00
21-4
0949123017
ref: 21-4
E22
JET,MAIN(117.5)
0949123017
€ 11.00
22
1368209210
ref: 22
CAP,PLUNGER
1368209210
€ 3.00
23
1329515010
ref: 23
O-RING
€ 3.00
24
1326847070
ref: 24
SPRING
1326847070
€ 5.00
25
1327947080
ref: 25
SCREW,PILOT AIR
1327947080
€ 11.50
26
1327744080
ref: 26
GASKET
€ 2.00
27
1327844080
ref: 27
O-RING
€ 4.00
28
1324644080
ref: 28
GASKET (NAS)
1324644080
€ 3.50
29
1324744080
ref: 29
PLUG,DRAIN
1324744080
€ 9.50
30
1350211400
ref: 30
COVER,DIAPHRAGM
€ 0.00
31
1350344080
ref: 31
SPRING
1350344080
€ 11.50
32
1338944030
ref: 32
HOLDER,GUIDE
1338944030
€ 10.50
33-1
1350011410
ref: 33-1
DIAPHRAGM
1350011410
€ 202.50
33-2
1350011970
ref: 33-2
E18
DIAPHRAGM
€ 0.00
34
1358144030
ref: 34
E RING
1358144030
€ 6.50
35
1338747010
ref: 35
RING
1338747010
€ 7.50
36
1339431210
ref: 36
CLIP,NEEDLE
1339431210
€ 3.50
37
1338244030
ref: 37
WASHER
1338244030
€ 3.50
38-1
1338311930
ref: 38-1
NEEDLE, JET (5DFT76-3)
€ 14.00
38-2
1338344200
ref: 38-2
E22
NEEDLE,JET
1338344200
€ 16.00
39
1337665010
ref: 39
FILTER
€ 6.50
40
6626399050
ref: 40
O RING
6626399050
€ 6.00
41
1337011400
ref: 41
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
42
0211204068
ref: 42
SCREW 4X6
0211204068
€ 2.00
43
1325492311
ref: 43
PIN,FLOAT
1325492311
€ 2.00
44
1337311400
ref: 44
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
45
1357411400
ref: 45
RH
RING,THROTTLE VALVE
€ 0.00
46
0211205108
ref: 46
LH:3,RH:4
SCREW
0211205108
€ 2.00
47
0832121058
ref: 47
LH:3,RH:4
LOCK WASHER
0832121058
€ 2.00
48
1365151010
ref: 48
SEAL
1365151010
€ 4.00
49
1355747070
ref: 49
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
50
1361744080
ref: 50
E RING
1361744080
€ 3.50
51
1357847070
ref: 51
CAP
1357847070
€ 5.50
52
1326844010
ref: 52
RH
SPRING,THROTTLE SCREW
1326844010
€ 3.00
53
1357547070
ref: 53
RH
PIN,THROTTLE LEVER
1357547070
€ 2.50
54
1360747070
ref: 54
RH
NUT
1360747070
€ 4.00
55
1360547080
ref: 55
RH
SCREW
1360547080
€ 7.00
56
1338844030
ref: 56
SPRING
1338844030
€ 6.00
57
1369211400
ref: 57
RH
CLIP,HOSE
€ 0.00
58
1328111400
ref: 58
FILTER NET ASSEMBLY
1328111400
€ 17.50
59
1321011450
ref: 59
FLANGE ASSY
€ 0.00
60
1342211400
ref: 60
LEVER
€ 0.00
61
1368511400
ref: 61
NIPPLE,CARBURETOR
€ 19.50
62
1368311450
ref: 62
HOSE
€ 13.00
63
0211205128
ref: 63
SCREW
€ 2.50
64
0832121058
ref: 64
LOCK WASHER
0832121058
€ 2.00
65
0211206168
ref: 65
SCREW
0211206168
€ 2.50
66
0832121068
ref: 66
LOCK WASHER
0832121068
€ 2.50
67
1326711400
ref: 67
SCREW,THROTTLE STOP
1326711400
€ 12.00
68
1368144110
ref: 68
BUSHING,THROTTLE ADJUSTER
1368144110
€ 13.00
69
1362144210
ref: 69
BRACKET,THROTTLE ADJUST
€ 0.00
70
0211205088
ref: 70
SCREW
0211205088
€ 2.00
71
0832121058
ref: 71
LOCK WASHER
0832121058
€ 2.00
72
1327193011
ref: 72
SPRING
1327193011
€ 4.50
73
1341011400
ref: 73
SHAFT,STARTER
1341011400
€ 36.00
74
1360547070
ref: 74
SCREW
1360547070
€ 5.50
75
1368311460
ref: 75
HOSE (8X4.5X225)
€ 14.00
76
1343247090
ref: 76
WASHER
1343247090
€ 2.50
77
1368311400
ref: 77
HOSE
€ 13.00
