STARTING MOTOR (MODEL D)

GSX250 1983 (D) GENERAL EXPORT (E01)

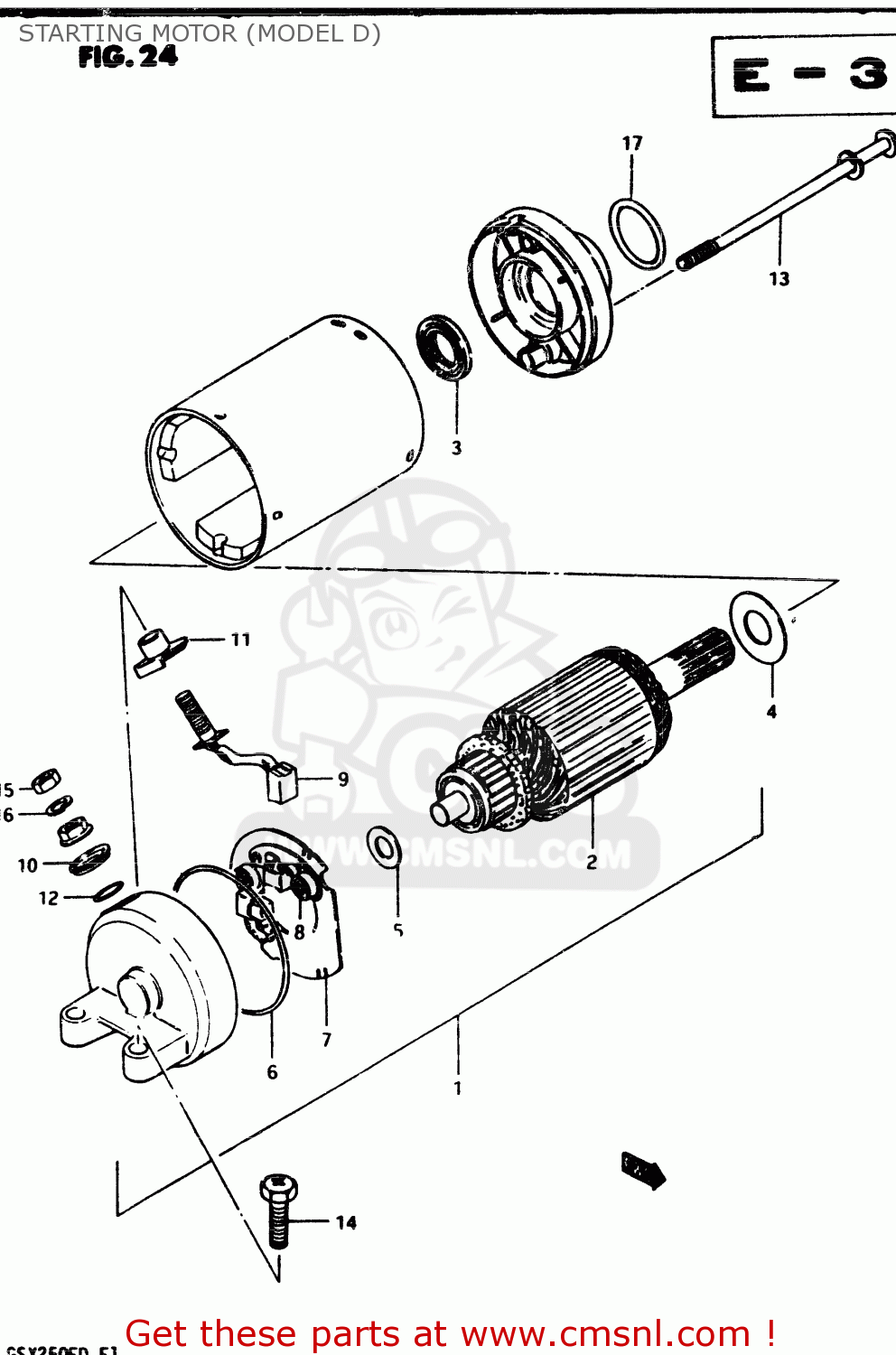

Starting motor (model d) diagram GSX250 1983 (D) GENERAL EXPORT (E01)

STARTING MOTOR (MODEL D) GSX250 1983 (D) GENERAL EXPORT (E01)
STARTING MOTOR (MODEL D) GSX250 1983 (D) GENERAL EXPORT (E01)
STARTING MOTOR (MODEL D) GSX250 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3110044110
ref: 1
MOTOR ASSEMBLY,STARTING
€ 731.50
2
3131144110
ref: 2
ARMATURE
€ 255.00
3
3115345010
ref: 3
SEAL,OIL
3115345010
€ 19.50
4
3136110200
ref: 4
RING,SNAP
3136110200
€ 2.50
5
3136147010
ref: 5
SHIM,ARMATURE
€ 3.50
6
3126444110
ref: 6
O RING
3126444110
€ 8.00
7
3113244110
ref: 7
HOLDER,BRUSH
€ 47.00
8
3113565010
ref: 8
SPRING
3113565010
€ 3.00
9
3113044110
ref: 9
BRUSH (+)
3113044110
€ 12.50
10
3117244110
ref: 10
BUSHING (1)
3117244110
€ 6.00
11
3117144110
ref: 11
BUSH,NO.2
3117144110
€ 8.00
12
3114344110
ref: 12
O-RING
3114344110
€ 3.00
13
3128144110
ref: 13
BOLT,STARTING MOTOR HOUSING
€ 11.50
14
0912806024
ref: 14
SCREW (6X25)
0912806024
€ 2.50
15
0831022068
ref: 15
NUT 6MM
€ 2.50
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
0928024001
ref: 17
O RING(D:2,ID:24.5)
0928024001
€ 2.00
