CRANKSHAFT
GSX250 1983 (D) GENERAL EXPORT (E01)

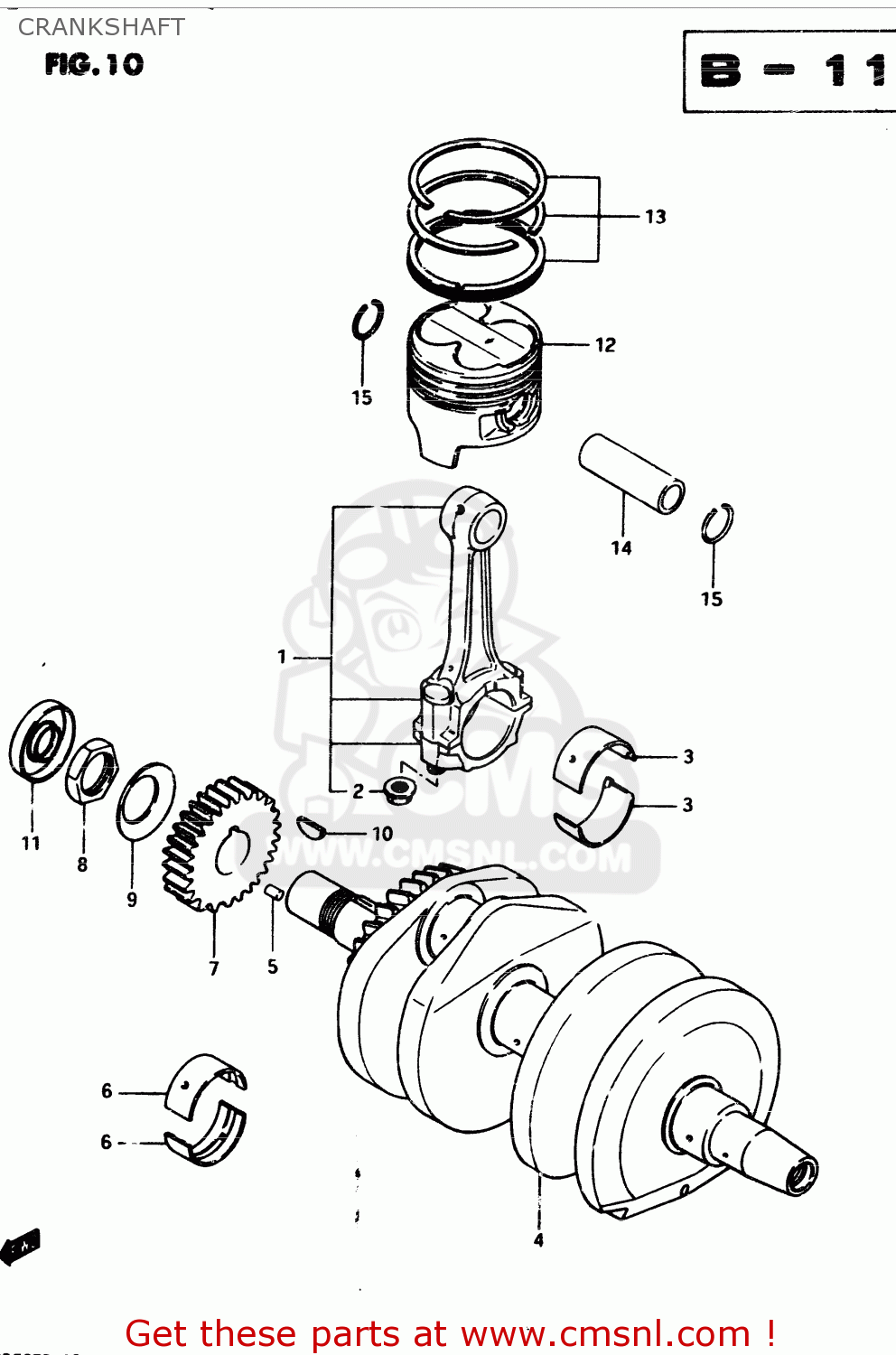

Crankshaft diagram GSX250 1983 (D) GENERAL EXPORT (E01)
CRANKSHAFT GSX250 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1216011400
ref: 1
ROD ASSEMBLY,CONNECTING
€ 95.50
2
0915908033
ref: 2
NUT
€ 2.50
3-1
1216411400010
ref: 3-1
MODEL Z
BEARING,CRANK PIN GREEN
€ 12.00
3-2
1216411400020
ref: 3-2
MODEL Z
BEARING,CRANK PIN BLACK
€ 12.50
3-3
1216411400030
ref: 3-3
MODEL Z
BEARING,CRANK PIN BROWN
€ 12.50
3-4
1216411400040
ref: 3-4
MODEL Z
BEARING,CRANK PIN YELLOW
€ 11.50
3-5
1216411400025
ref: 3-5
OPT
BEARING,CRANK PIN (US: 0.25)
€ 11.50
3-6
1216411400050
ref: 3-6
OPT
BEARING,CRANK PIN (US: 0.5)
€ 11.00
3-7
1216433210010
ref: 3-7
MODEL D
BEARING,CRANK PIN
€ 12.00
3-8
1216433210020
ref: 3-8
MODEL D
BEARING,CRANK PIN
€ 12.50
3-9
1216433210030
ref: 3-9
MODEL D
BEARING,CRANK PIN
€ 12.50
3-10
1216433210040
ref: 3-10
MODEL D
BEARING,CRANK PIN
€ 11.50
4
1222011401
ref: 4
CRANKSHAFT ASSEMBLY
€ 785.00
5
0621103052
ref: 5
PIN 3X5
€ 1.50
6-1
1222911400010
ref: 6-1
METAL CRANKSHAFT (YELLOW)
€ 9.50
6-2
1222911400020
ref: 6-2
METAL CRANKSHAFT (BROWN)
€ 12.00
6-3
1222911400030
ref: 6-3
METAL CRANKSHAFT (BLACK)
€ 10.00
6-4
1222911400040
ref: 6-4
METAL CRANKSHAFT (GREEN)
€ 10.50
6-5
1222911400025
ref: 6-5
OPT
BEARING,CRANKSHAFT(US:0.25)
€ 9.50
6-6
1222911400050
ref: 6-6
OPT
METAL CRANKSHAFT
€ 9.50
7
2111111400
ref: 7
GEAR,PRIMARY DRIVE
€ 0.00
8
0914024007
ref: 8
NUT
€ 4.50
9
0916425001
ref: 9
WASHER
€ 4.50
10
0834131059
ref: 10
KEY
€ 3.00
11
0928322013
ref: 11
OIL SEAL
€ 10.50
12-1
1211111403
ref: 12-1
PISTON
€ 49.00
12-2
1211111410
ref: 12-2
E4
PISTON (STD)
€ 0.00
12-3
1211111403050
ref: 12-3
OPT
PISTON (OS:0.5)
€ 152.50
12-4
1211111410050
ref: 12-4
E4,OPT
PISTON (OS:0.5)
€ 0.00
12-5
1211111403100
ref: 12-5
OPT
PISTON (OS:1.0)
€ 122.00
13-1
1214011421
ref: 13-1
RING SET,PISTON
€ 58.00
13-2
1214011410
ref: 13-2
E4
PISTON RING SET (STD)
€ 0.00
13-3
1214011421050
ref: 13-3
OPT
RING SET,PISTON(OS:0.50)
€ 42.00
13-4
1214011410050
ref: 13-4
E4,OPT
PISTON RING SET (OS:0.5)
€ 0.00
13-5
1214011421100
ref: 13-5
OPT
RING SET,PISTON
€ 58.00
14
1215178110
ref: 14
PIN,PISTON
€ 15.00
15
0938116002
ref: 15
CIRCLIP
€ 1.50
