REAR WHEEL (GSX250Z/D E24, GSX250SZ E24)

GSX250 1983 (D) GENERAL EXPORT (E01)

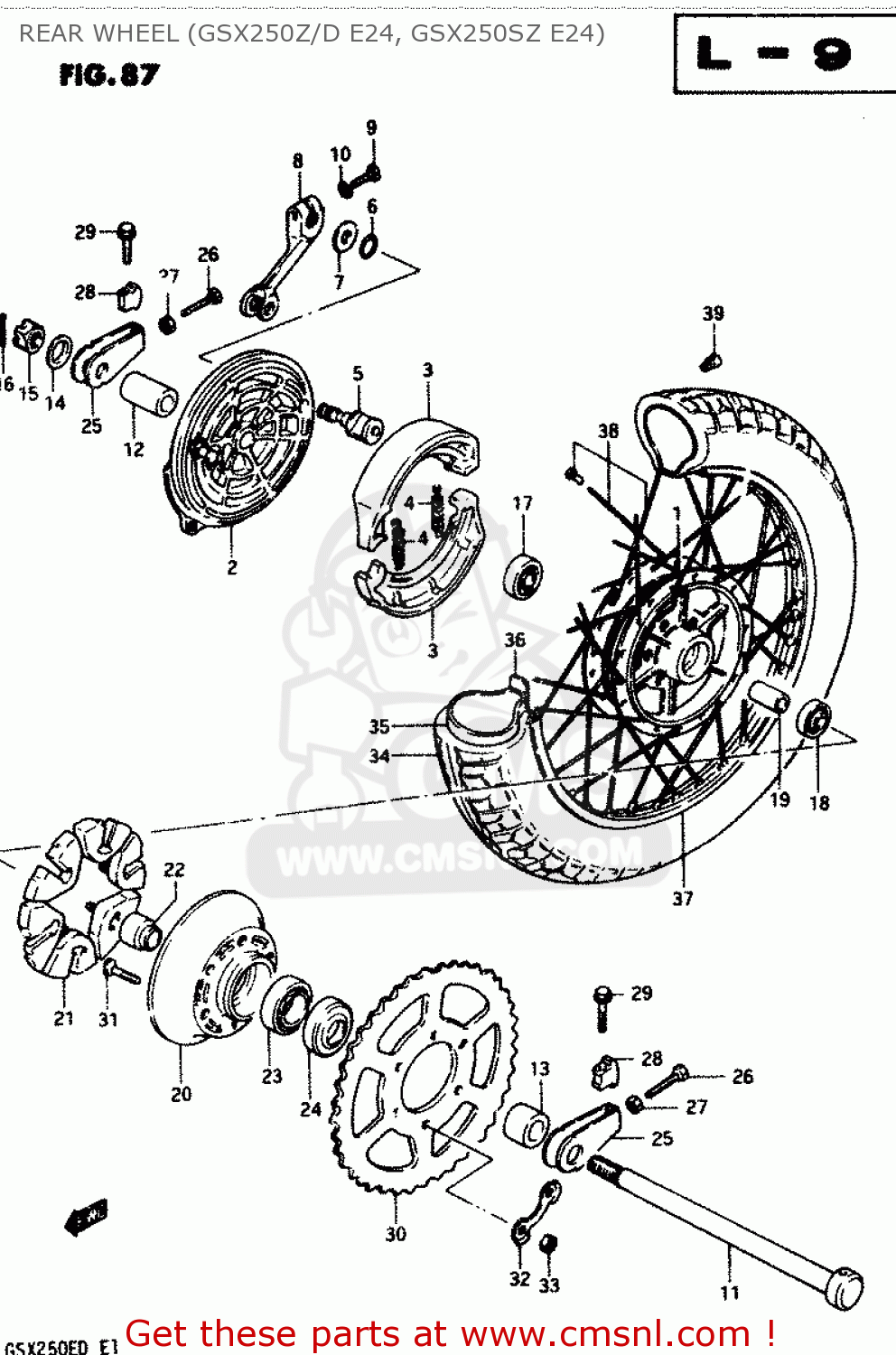

Rear wheel (gsx250z/d e24, gsx250sz e24) diagram GSX250 1983 (D) GENERAL EXPORT (E01)

REAR WHEEL (GSX250Z/D E24, GSX250SZ E24) GSX250 1983 (D) GENERAL EXPORT (E01)
REAR WHEEL (GSX250Z/D E24, GSX250SZ E24) GSX250 1983 (D) GENERAL EXPORT (E01)
REAR WHEEL (GSX250Z/D E24, GSX250SZ E24) GSX250 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
6411037301
ref: 1
DRUM,REAR HUB
€ 266.50
2
6421044060
ref: 2
PANEL,REAR HUB
6421044060
€ 111.50
3
6441011301
ref: 3
SHOE,BRAKE
6441011301
€ 29.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
5542030000
€ 3.50
5
5444008003
ref: 5
CAM,FRONT BRAKE
5444008003
€ 19.00
6
0928015001
ref: 6
O-RING,BOSS
0928015001
€ 2.00
7
0916015001
ref: 7
WASHER (15X24X1.6)
0916015001
€ 2.50
8
6445144400
ref: 8
LEVER,RR BRAKE CAM
6445144400
€ 42.00
9
0110706258
ref: 9
BOLT
€ 2.00
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
11
6471144400
ref: 11
AXLE,REAR
6471144400
€ 33.50
12
0918017043
ref: 12
SPACER(17.5X28X44.8)
0918017043
€ 7.00
13
0918017042
ref: 13
SPACER(17X30.5X22.3)
0918017042
€ 8.50
14
0916017013
ref: 14
WASHER (17X30X3.2)
0916017013
€ 2.00
15
0914116001
ref: 15
NUT
0914116001
€ 6.50
16
0411140308
ref: 16
PIN,COTTER
0411140308
€ 1.50
17
0814363037
ref: 17
BEARING
0814363037
€ 23.00
18
0814362037
ref: 18
BEARING
0814362037
€ 18.50
19
0918017056
ref: 19
SPACER (17.6X24X57)
€ 19.00
20
6461144001
ref: 20
DRUM,REAR SPROCKET MOUNT
6461144001
€ 84.00
21
6465111300
ref: 21
ABSORBER,RR HUB SHOCK
6465111300
€ 12.50
22
6473333000
ref: 22
SPACER,REAR HUB BEARING
6473333000
€ 20.00
23
0811362057
ref: 23
BEARING
0811362057
€ 18.00
24
0928530001
ref: 24
SEAL,OIL(30.5X52X8)
0928530001
€ 20.00
25
6141047200
ref: 25
ADJUSTER,CHAIN
6141047200
€ 58.00
26
0910408018
ref: 26
BOLT 8X50
0910408018
€ 3.00
27
0831012088
ref: 27
NUT
0831012088
€ 2.00
28
6143331000
ref: 28
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
29
0151708508
ref: 29
BOLT
0151708508
€ 3.50
30
6451111510
ref: 30
SPROCKET,RR NT
6451111510
€ 45.00
31
0911910021
ref: 31
BOLT
€ 2.00
32
0916910006
ref: 32
WASHER
0916910006
€ 4.50
33
0914010026
ref: 33
NUT
0914010026
€ 2.00
34-1
6510044111
ref: 34-1
IRC
TIRE,RR(3.50S18)
€ 0.00
34-2
6510044130
ref: 34-2
BS
TIRE
€ 0.00
35
6520018010
ref: 35
IRC
TUBE ASSEMBLY,WHEEL,INNER
€ 35.00
36
5526111010
ref: 36
PROTECTOR,INNER TUBE
5526111010
€ 3.50
37
6531118420
ref: 37
RIM,RR WHEEL
6531118420
€ 115.50
38
6532011300
ref: 38
SPOKE SET,RR
6532011300
€ 57.50
39-1
5541111000
ref: 39-1
BALANCER,WHEEL (B)
€ 4.50
39-2
5541211000
ref: 39-2
BALANCER,WHEEL (30G)
5541211000
€ 8.00
