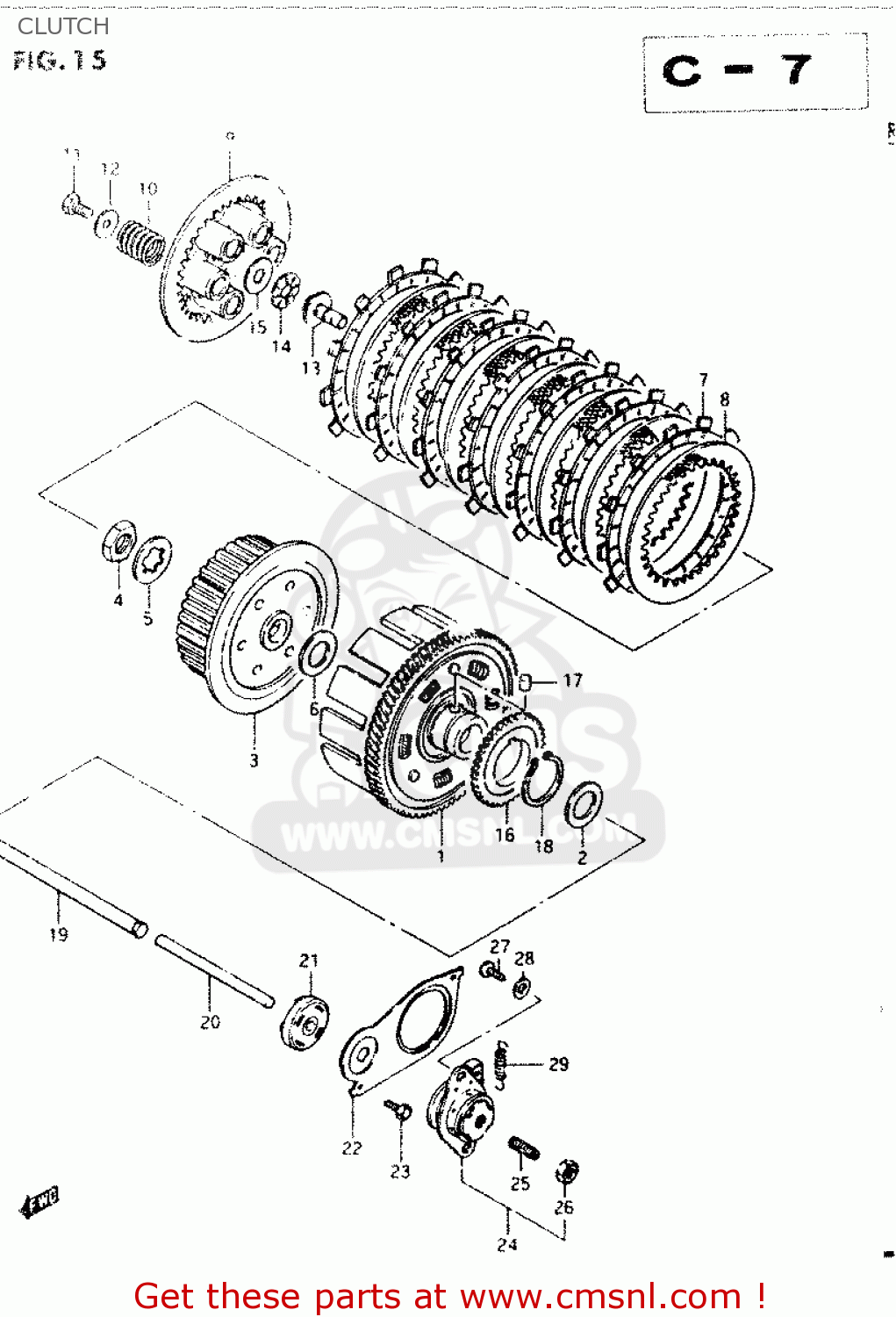

CLUTCH

ref

part #

description

quantity

1

2120044100
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 333.00

2

0821125381
ref: 2

WASHER

€ 3.00

3

2141144100
ref: 3

HUB,CLUTCH SLEEVE

€ 56.50

4

0914020002
ref: 4

NUT (20MM)

€ 3.50

5

0916720006
ref: 5

WASHER,LOCK

€ 3.00

6

0916020015
ref: 6

WASHER(20X44X3)

€ 4.50

7

2144140402
ref: 7

PLATE,CLUTCH DRIVE (MCA)

€ 20.50

8

2145145000
ref: 8

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

9

2146216501
ref: 9

DISC,CLUTCH PRESSURE

€ 51.00

10

0944019013
ref: 10

SPRING

€ 5.50

11

0110706168
ref: 11

BOLT, UPPER

€ 3.00

12

0916006020
ref: 12

WASHER

€ 2.00

13

2312144100
ref: 13

PIECE,CLUTCH PUSH

€ 21.50

14

0926315003
ref: 14

BEARING(15X28X2)

€ 7.00

15

0916015015
ref: 15

WASHER

€ 4.00

16

1632144001
ref: 16

GEAR,OIL PUMP DRIVE

€ 26.00

17

0926106002
ref: 17

PIN(6X6)

€ 1.50

18

0833131389
ref: 18

CIRCLIP

€ 2.50

19

2311044111
ref: 19

ROD,PUSH,R

€ 13.00

20

2311144111
ref: 20
FROM 23111-44110

ROD,CLUTCH PUSH

€ 13.50

21

0928506011
ref: 21

SEAL,OIL(6X34X10)

€ 9.50

22

2311744101
ref: 22

PLATE,CLUTCH PUSH ROD

€ 6.50

23

0110706128
ref: 23

BOLT

€ 2.00

24

2320044101
ref: 24

SCREW ASSY,CLUTCH RELEASE

€ 63.00

25

0913406010
ref: 25

SCREW(6X25)

€ 3.00

26

0831022068
ref: 26

NUT 6MM

€ 2.50

27

0311106168
ref: 27

SCREW

€ 1.50

28

0832221067
ref: 28

WASHER

€ 2.00

29

0944308001
ref: 29

SPRING

€ 3.00
