FRONT FORK RIGHT DAMPER

GSX400E 1985 (F) GENERAL EXPORT (E01)

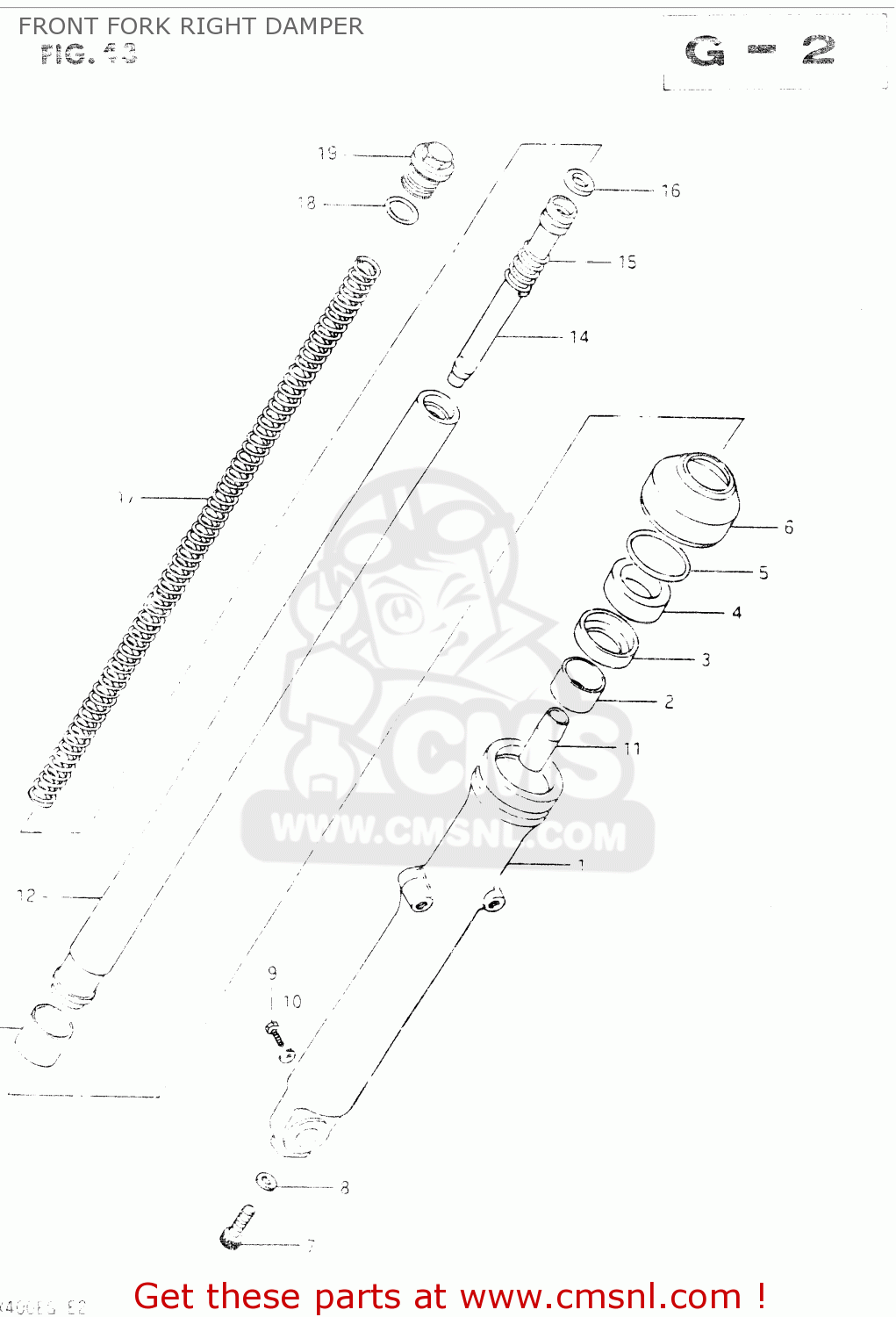

Front fork right damper diagram GSX400E 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5110344420
ref: 0

DUMPER ASSY, RH

€ 406.00

5113011500
ref: 1

OUTER TUBE RH

€ 205.50

5115211420
ref: 2

BUSH,GUIDE

€ 16.50

5116844030
ref: 3

SPACER,OIL SEAL

€ 4.50

5115337310
ref: 4

OIL SEAL,FRONT FORK

€ 15.00

5115633130
ref: 5

CIRCLIP,FORK OIL SEAL

€ 4.50

5157137310
ref: 6

DUST SEAL

€ 22.00

5114748130
ref: 7

BOLT(8X27)

€ 3.50

5114831030
ref: 8

GASKET (NAS)

€ 4.00

0110706088
ref: 9

BOLT

€ 2.50

5118331030
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 4.00

5119548000
ref: 11

PIECE,OIL LOCK

€ 8.50

5111011420
ref: 12

TUBE,INNER

€ 192.50

5112111420
ref: 13

BUSH

€ 16.50

5114644110
ref: 14

CYLINDER,FRONT FORK

€ 42.00

5117711420
ref: 15

SPRING,REBOUND

€ 4.50

5119633130
ref: 16

RING,PISTON

€ 7.50

5117111420
ref: 17

SPRING,FR.FORK

€ 43.50

5118131030
ref: 18

O RING

€ 3.50

5135133130
ref: 19

BOLT

€ 30.50
