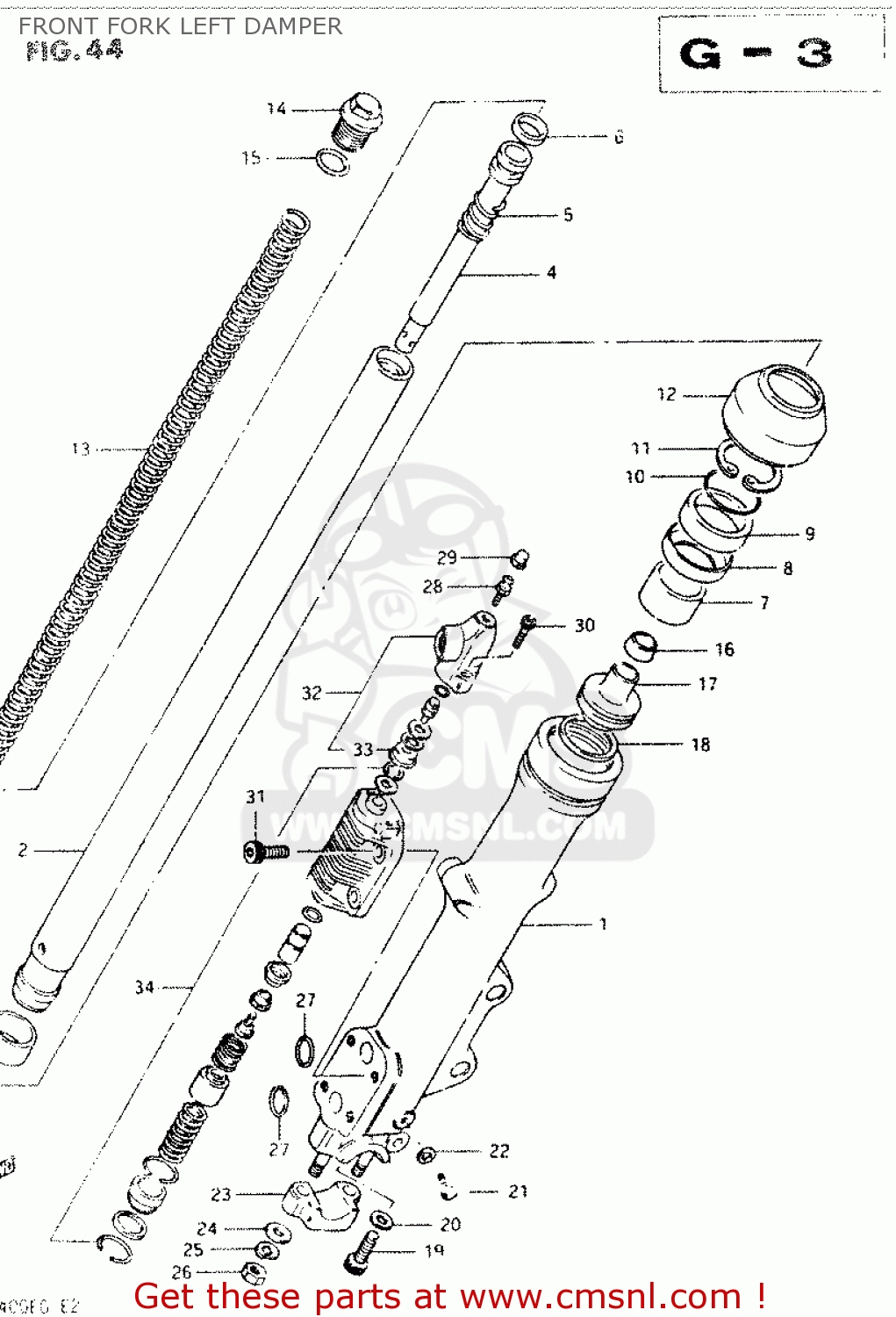

FRONT FORK LEFT DAMPER

ref

part #

description

quantity

0

5110444420
ref: 0

DUMPER ASSY, LH

€ 291.00

1

5114011500
ref: 1

OUTER TUBE LH

€ 108.00

2

5112011420
ref: 2

INNER TUBE,L

€ 168.00

3

5112111420
ref: 3

BUSH

€ 16.50

4

5119411420
ref: 4

CYLINDER, LH

€ 0.00

5

5117711420
ref: 5

SPRING,REBOUND

€ 4.50

6

5119633130
ref: 6

RING,PISTON

€ 7.50

7

5115211420
ref: 7

BUSH,GUIDE

€ 16.50

8

5116844030
ref: 8

SPACER,OIL SEAL

€ 4.50

9

5115337310
ref: 9

OIL SEAL,FRONT FORK

€ 15.00

10

5115811420
ref: 10

RING,BACKUP

€ 4.00

11

5115611420
ref: 11

RING,OIL SEAL STOPPER

€ 4.50

12

5157137310
ref: 12

DUST SEAL

€ 22.00

13

5117111420
ref: 13

SPRING,FR.FORK

€ 43.50

14

5135133130
ref: 14

BOLT

€ 30.50

15

5118131030
ref: 15

O RING

€ 3.50

16

5112511420
ref: 16

VALVE,OIL LOCK PIEACE

€ 7.50

17

5119511420
ref: 17

PIECE,OIL LOCK

€ 21.50

18

5112311420
ref: 18

RING, PISTON

€ 2.50

19

5114748130
ref: 19

BOLT(8X27)

€ 3.50

20

5114831030
ref: 20

GASKET (NAS)

€ 4.00

21

0110706088
ref: 21

BOLT

€ 2.50

22

5118331030
ref: 22

GASKET,DRAIN,PLUG (NAS)

€ 4.00

23

511324404015T
ref: 23

HOLDER,AXLE

€ 38.50

24

0832221088
ref: 24

WASHER

€ 2.00

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0831012088
ref: 26

NUT

€ 2.00

27

5179911420
ref: 27

O RING,FR FORK

€ 2.00

28

5177811420
ref: 28

BREATHER

€ 8.50

29

5177911420
ref: 29

CAP

€ 4.50

30

5179711420
ref: 30

BOLT

€ 2.50

31

5179611420
ref: 31

BOLT

€ 3.00

32

5170011810
ref: 32

MODULATOR PARTS SET,FRONT

€ 92.50

33

5177711420
ref: 33

SEPARATOR,FRONT FORK MODULATOR

€ 5.00

34

5170011821
ref: 34

MODULATOR VALVE SET

€ 133.00
