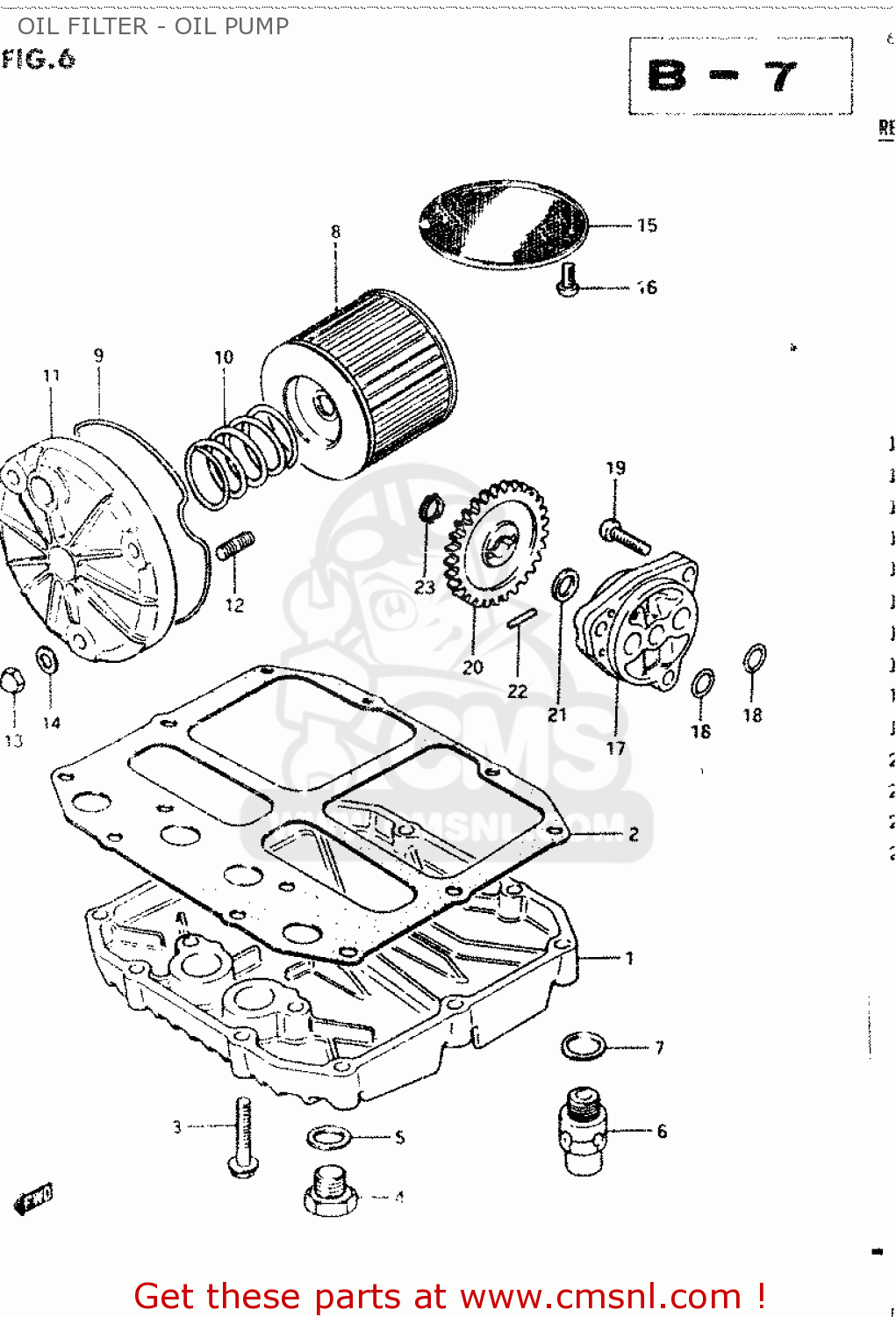

OIL FILTER - OIL PUMP - GSX400E 1985 (F) GENERAL EXPORT (E01)

ref

part #

description

quantity

1

1151144110
ref: 1

PAN,OIL

€ 83.50

2

1148944101
ref: 2

GASKET,OIL PAN (MCA)

€ 11.00

3

0151706305
ref: 3

BOLT 6X30

€ 2.50

4

0924714001
ref: 4

PLUG

€ 5.00

5

0916814004
ref: 5

GASKET(14X19.2X2) (NAS)

€ 2.50

6

1644033300
ref: 6

VALVE ASSEMBLY,OIL RELIEF

€ 37.00

7

0821214181
ref: 7

WASHER

€ 2.00

8

1651045040
ref: 8

FILTER ASSY,ENGINE OIL

€ 7.50

9

1651845000
ref: 9

O RING,OIL FILTER CHAMBER CAP

€ 7.50

10

0944032004
ref: 10

SPRING

€ 13.50

11

1651244410
ref: 11

CAP,OIL FILTER

€ 47.00

12

0142106208
ref: 12

STUD 6X20

€ 2.50

13

0831311065
ref: 13

NUT 6MM

€ 2.00

14

0832221064
ref: 14

WASHER

€ 2.00

15

1652045010
ref: 15

STRAINER,ENGINE OIL

€ 12.00

16

0211206128
ref: 16

SCREW 6X12

€ 2.00

17

1640044100
ref: 17

PUMP ASSY,ENGINE OIL

€ 164.50

18

0928013004
ref: 18

O RING(D:1.9,ID:13)

€ 2.50

19

0211206258
ref: 19

SCREW

€ 2.00

20

1633144000
ref: 20

GEAR,OIL PUMP DRIVEN

€ 34.00

21

0822110185
ref: 21

SHIM

€ 2.00

22

0926104009
ref: 22

PIN(4X15.8)

€ 1.50

23

0833131109
ref: 23

CIRCLIP

€ 2.00

OIL FILTER - OIL PUMP

all assemblies
