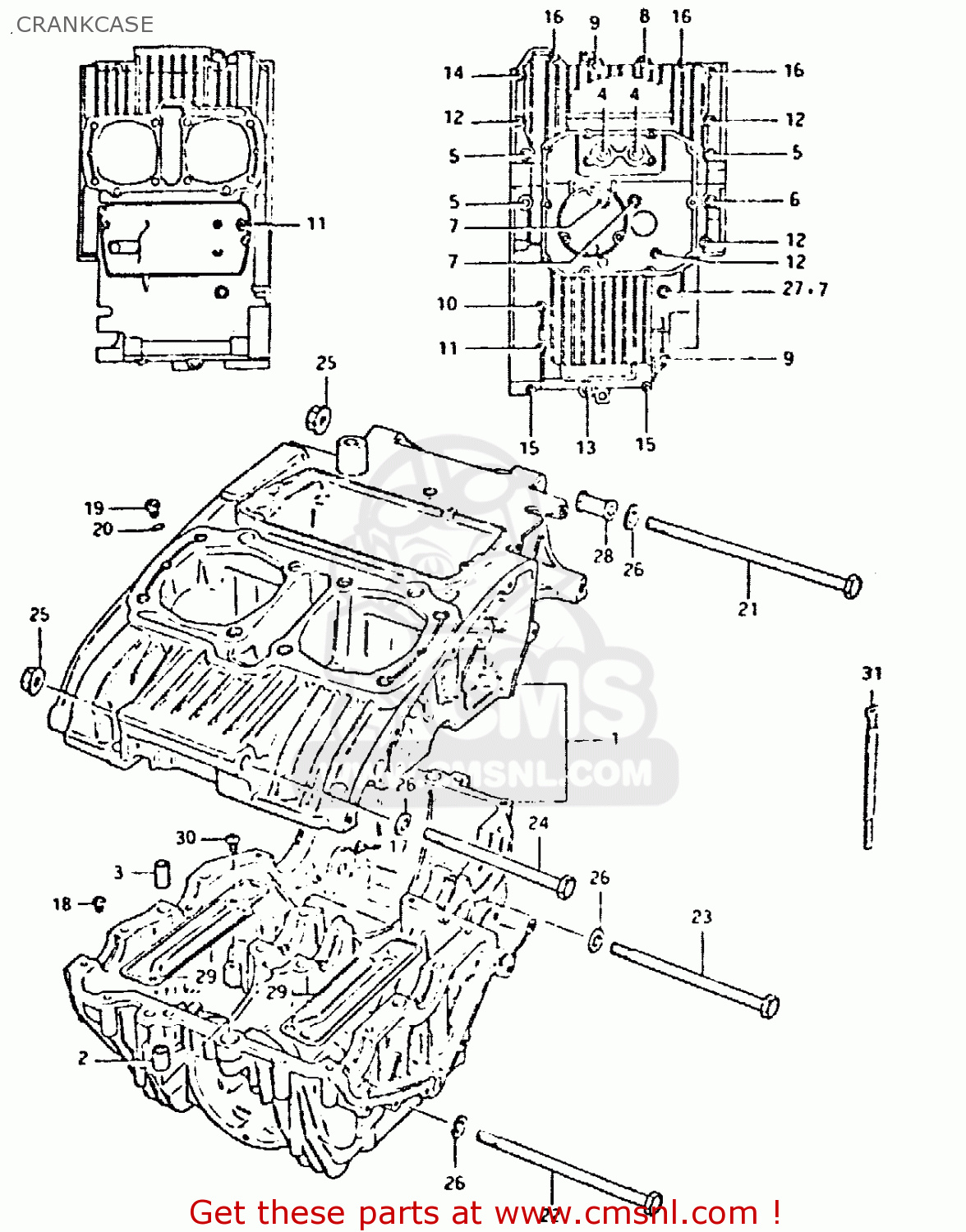

CRANKCASE

ref

part #

description

quantity

1

1130044861
ref: 1

CRANKCASE ASSEMBLY

€ 1,272.50

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611005
ref: 3

PIN (11X20)(SUS)

€ 6.50

4

0910608014
ref: 4

BOLT

€ 4.00

5

0910308020
ref: 5

BOLT

€ 8.00

6

0910308024
ref: 6

BOLT

€ 3.00

7

0910308009
ref: 7

BOLT

€ 5.00

8

0151708658
ref: 8

BOLT 8X65

€ 3.00

9

0151708458
ref: 9

BOLT (8X45)

€ 3.00

10

0910306031
ref: 10

BOLT

€ 3.50

11

0910306025
ref: 11

BOLT

€ 3.50

12

0151706908
ref: 12

BOLT (6X90)

€ 2.00

13

0151706708
ref: 13

BOLT (6X70)

€ 3.00

14

0151706658
ref: 14

BOLT 6X65

€ 3.00

15

0151706508
ref: 15

BOLT ,6X50

€ 2.00

16

0151706458
ref: 16

BOLT,UNDER

€ 2.50

17

0949328008
ref: 17

JET

€ 0.00

18

0949332002
ref: 18

JET

€ 11.50

19

0949324008
ref: 19

JET

€ 16.00

20

0928003003
ref: 20

O RING(D:1.05,ID:3.1)

€ 2.50

21

0910110010
ref: 21

BOLT 10X250

€ 49.50

22

0910010033
ref: 22

BOLT(10X210)

€ 46.50

23

0910010092
ref: 23

BOLT 10X160

€ 28.50

24

0910010051
ref: 24

BOLT

€ 6.50

25

0831931105
ref: 25

NUT 10MM

€ 3.00

26

0832211108
ref: 26

WASHER

€ 2.50

27

0916808008
ref: 27

GASKET 8.2X14X1 (NAS)

€ 1.00

28

1161044100
ref: 28

SPACER,ENGINE MOUNT

€ 9.50

29

1152144100
ref: 29

PLATE,OIL SEPARATOR

€ 3.00

30

0211206088
ref: 30

SCREW

€ 2.00

31

0940718301
ref: 31

CLAMP

€ 6.00
