STARTING MOTOR

GSX400T 1981 (X) UNITED KINGDOM (E02)

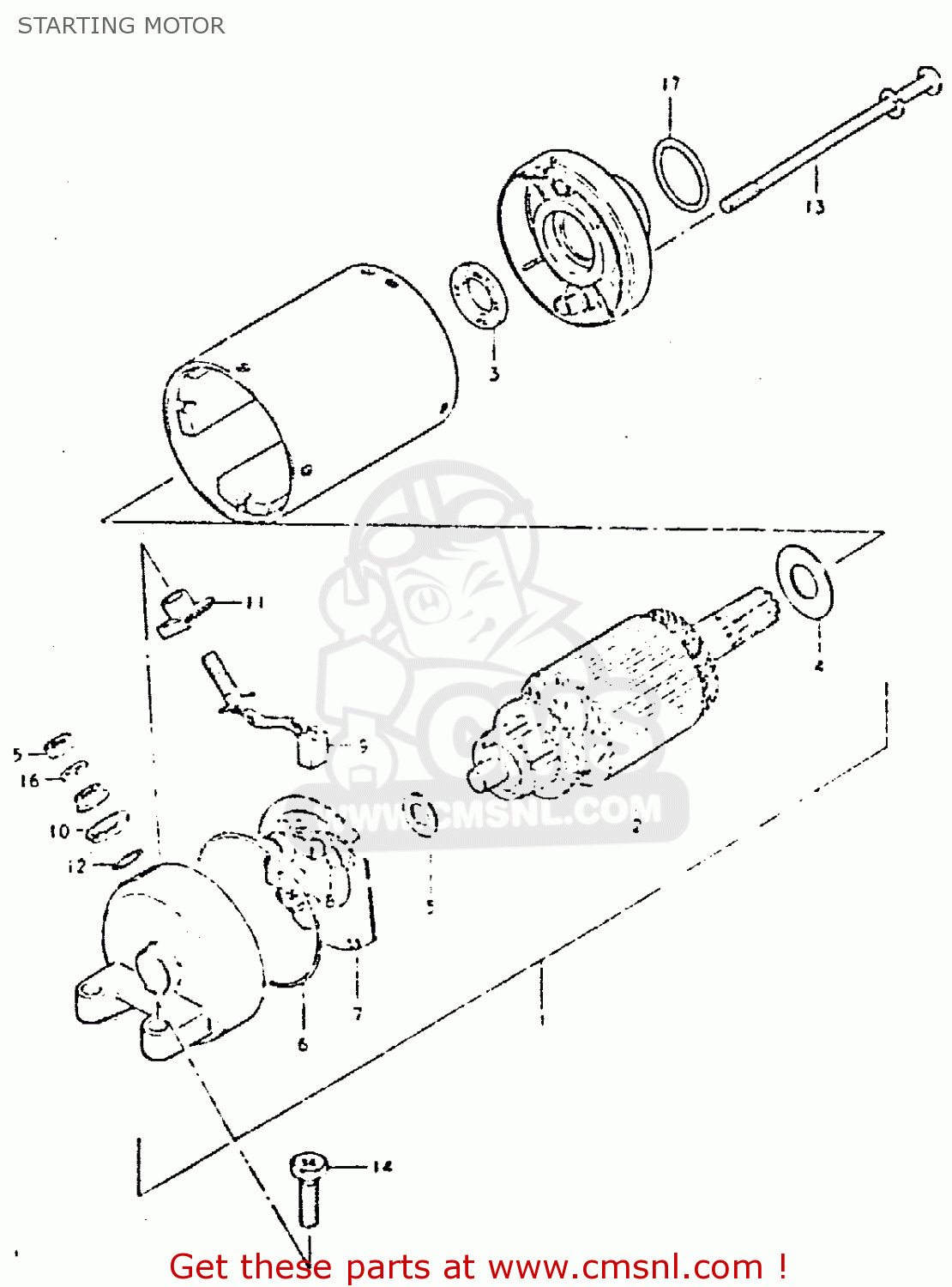

Starting motor diagram GSX400T 1981 (X) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

3110044110
ref: 1

MOTOR ASSEMBLY,STARTING

€ 731.50

3131144110
ref: 2

ARMATURE

€ 255.00

3115345010
ref: 3

SEAL,OIL

€ 19.50

3136110200
ref: 4

RING,SNAP

€ 2.50

3136147010
ref: 5

SHIM,ARMATURE

€ 3.50

3126444110
ref: 6

O RING

€ 8.00

3113244110
ref: 7

HOLDER,BRUSH

€ 47.00

3113565010
ref: 8

SPRING

€ 3.00

3113044110
ref: 9

BRUSH (+)

€ 12.50

3117244110
ref: 10

BUSHING (1)

€ 6.00

3117144110
ref: 11

BUSH,NO.2

€ 8.00

3114344110
ref: 12

O-RING

€ 3.00

3128144110
ref: 13

BOLT,STARTING MOTOR HOUSING

€ 11.50

0912806024
ref: 14

SCREW (6X25)

€ 2.50

0831022068
ref: 15

NUT 6MM

€ 2.50

0832121068
ref: 16

LOCK WASHER

€ 2.50

0928024001
ref: 17

O RING(D:2,ID:24.5)

€ 2.00

STARTING MOTOR

all assemblies
