CYLINDER

GSX400T 1981 (X) UNITED KINGDOM (E02)

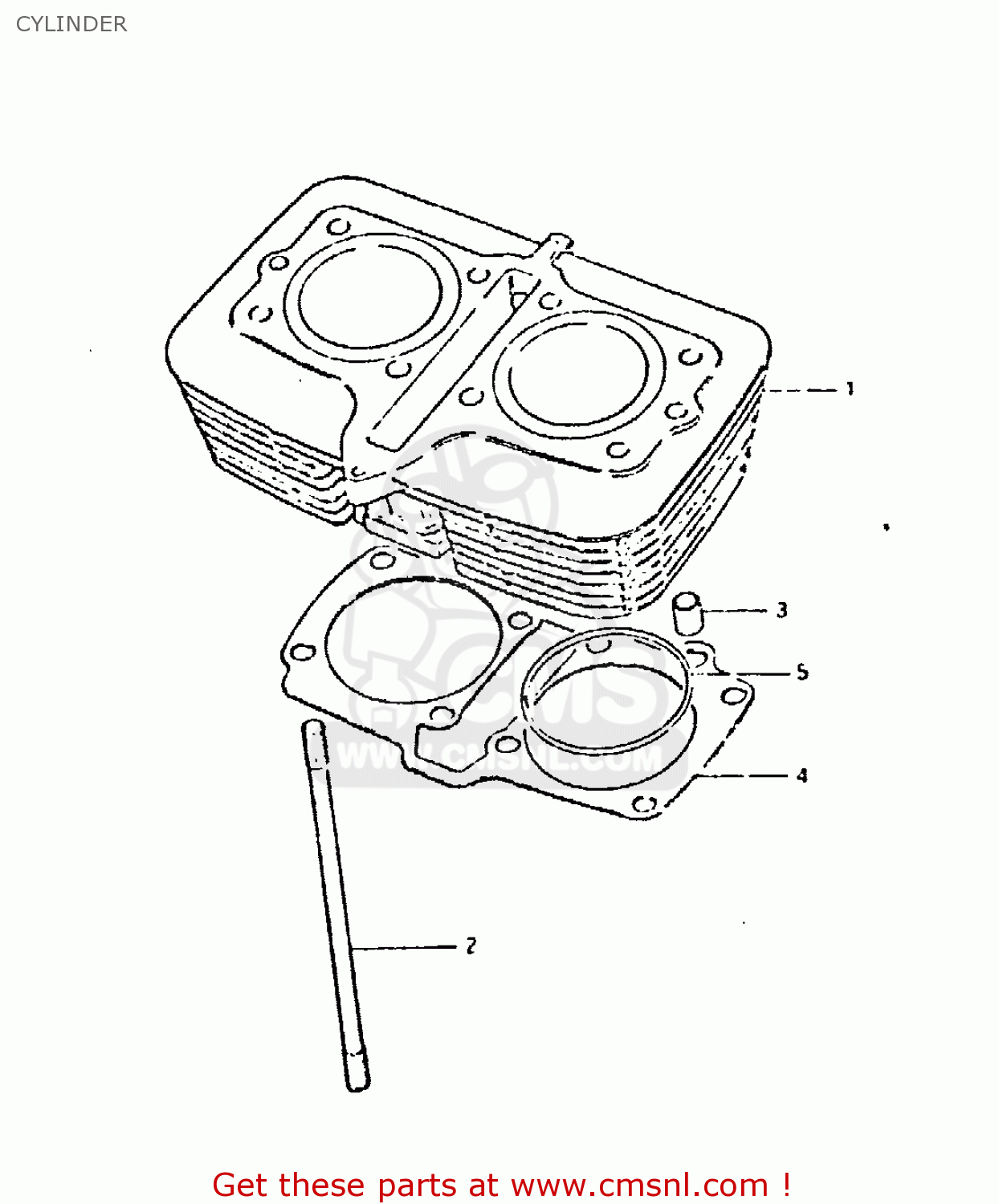

Cylinder diagram GSX400T 1981 (X) UNITED KINGDOM (E02)

CYLINDER GSX400T 1981 (X) UNITED KINGDOM (E02)

CYLINDER GSX400T 1981 (X) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1

1121044200
ref: 1

CYLINDER

€ 515.50

2

0910810028
ref: 2

STUD

€ 9.00

3

0421111189
ref: 3

PIN

€ 2.00

4

1124144100
ref: 4

GASKET,CYLINDER (MCA)

€ 12.50

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50
