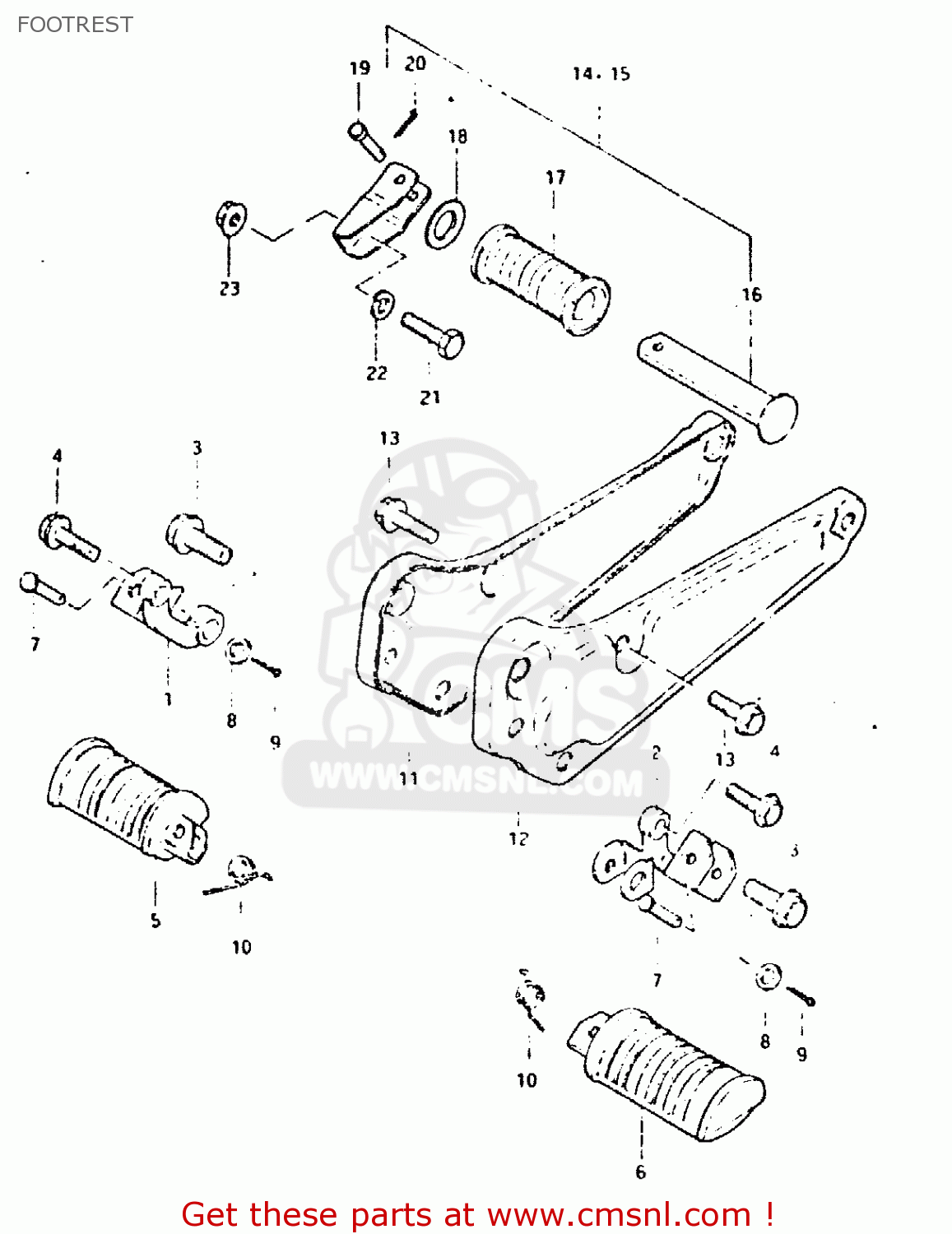

FOOTREST

ref

part #

description

quantity

1

4351044300
ref: 1

BAR,FRONT FOOTREST,RIGHT

€ 29.00

2

4352044300
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 0.00

3

0152710308
ref: 3

BOLT

€ 3.50

4

0152708307
ref: 4

BOLT

€ 3.50

5

4355049002
ref: 5

RUBBER,FRONT FOOTREST

€ 22.50

6

4356049002
ref: 6

FOOTREST

€ 22.50

7

0920008002
ref: 7

PIN

€ 2.00

8

0832211088
ref: 8

WASHER

€ 2.00

9

0411120158
ref: 9

PIN

€ 1.50

10

0944814012
ref: 10

SPRING

€ 3.00

11

4381044101
ref: 11

BRACKET

€ 54.50

12

4382044101
ref: 12

BRACKET

€ 46.00

13

0152710207
ref: 13

BOLT

€ 3.00

14

4360044300
ref: 14

FOOTREST ASSEMBLY,REAR,RIGHT

€ 10.00

15

4370044300
ref: 15

FOOTREST ASSEMBLY,REAR,LEFT

€ 10.50

16

4361044000
ref: 16

BAR,PILLION FOOTREST

€ 14.50

17

4361244100
ref: 17

RUBBER,PILLION FOOTREST

€ 4.50

18

0916019006
ref: 18

WASHER (19.5X32X2)

€ 2.00

19

0920006010
ref: 19

PIN

€ 2.50

20

0411120158
ref: 20

PIN

€ 1.50

21

0110710358
ref: 21

BOLT,M10X1.25X

€ 2.50

22

0832121108
ref: 22

LOCK WASHER

€ 2.00

23

0831616108
ref: 23

NUT

€ 2.00
