BATTERY

GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

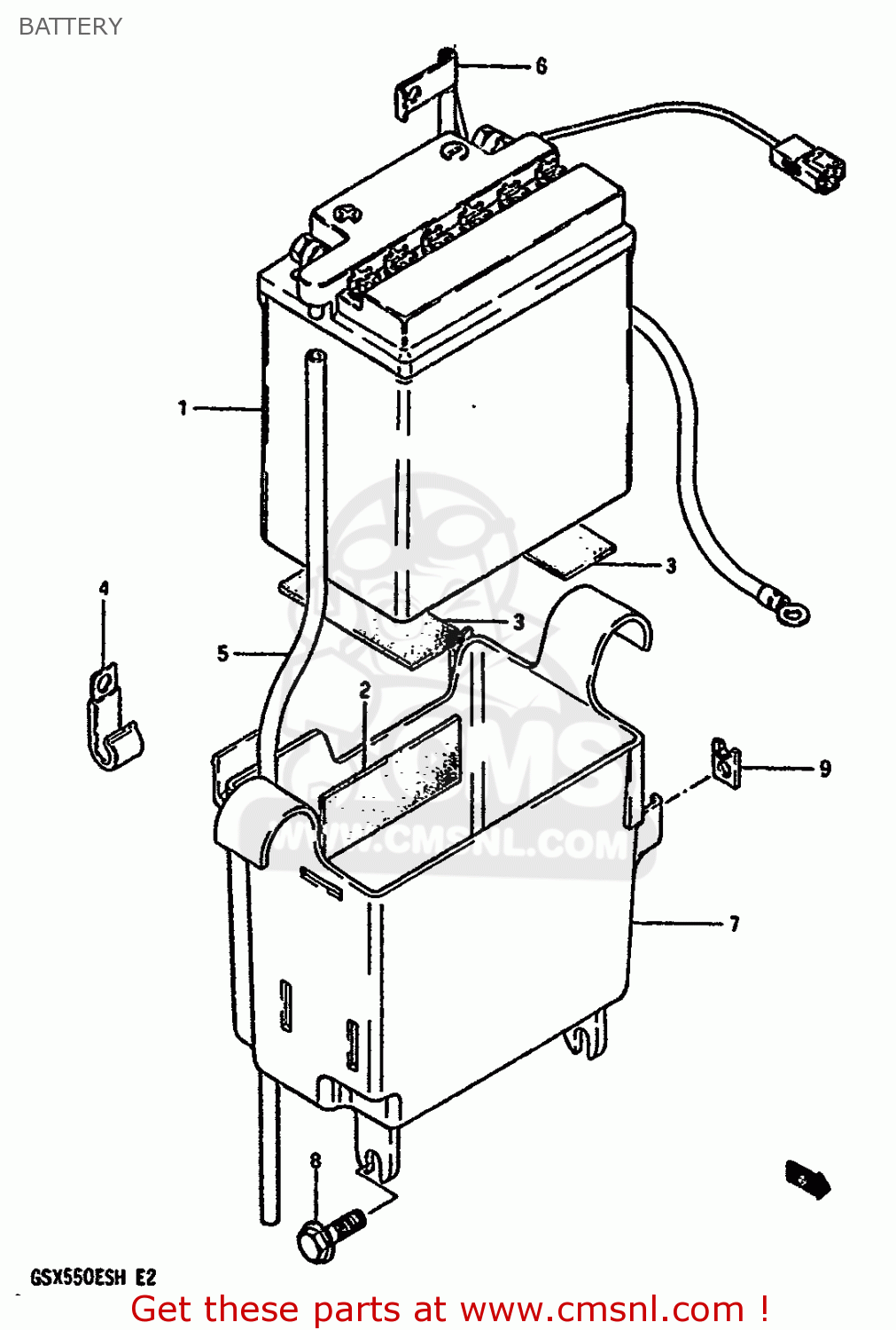

Battery diagram GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

prices are in EUR

ref

part #

description

quantity

3361008310
ref: 1

BATTERY(YB10L-B,12V12AH)

€ 78.50

3365234000
ref: 2

PROTECTOR(30X80X2)

€ 4.50

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

0940309303
ref: 4

CLAMP

€ 5.50

3368031003
ref: 5

HOSE,BATTERY EXHAUST

€ 4.50

3386018A00
ref: 6
FROM 33850-43400

WIRE,BATTERY MINUS LEAD

€ 10.50

4154143400
ref: 7

HOLDER,BATTERY

€ 20.50

0151706164
ref: 8

BOLT

€ 2.50

4154843400
ref: 9

WASHER,IGNITER

€ 0.00
