REAR SHOCK ABSORBER

GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

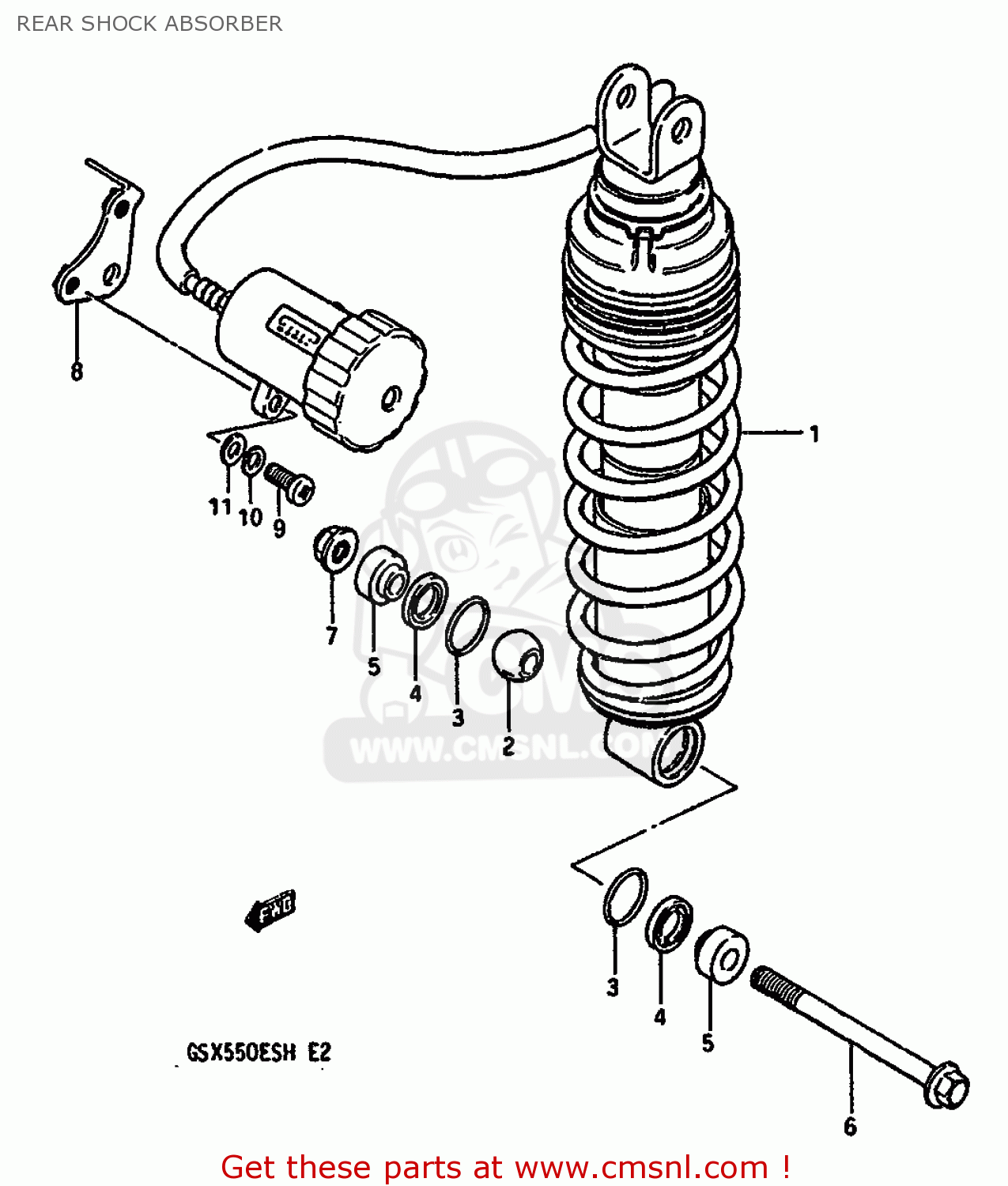

Rear shock absorber diagram GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

prices are in EUR

ref

part #

description

quantity

6210043470
ref: 1

SHOCK ABSORBER, REAR

€ 807.00

6217543400
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

6227714200
ref: 3

RING

€ 1.50

6222643410
ref: 4

SEAL,DUST

€ 7.50

6218743400
ref: 5

COLLAR

€ 5.00

0910310063
ref: 6

BOLT(10X115)

€ 5.00

0831931107
ref: 7

NUT

€ 3.00

6241143402
ref: 8

BRACKET,RESERVOIR TANK

€ 0.00

0211206255
ref: 9

SCREW

€ 1.50

0832121064
ref: 10

WASHER,LOCK

€ 2.00

0832221064
ref: 11

WASHER

€ 2.00
