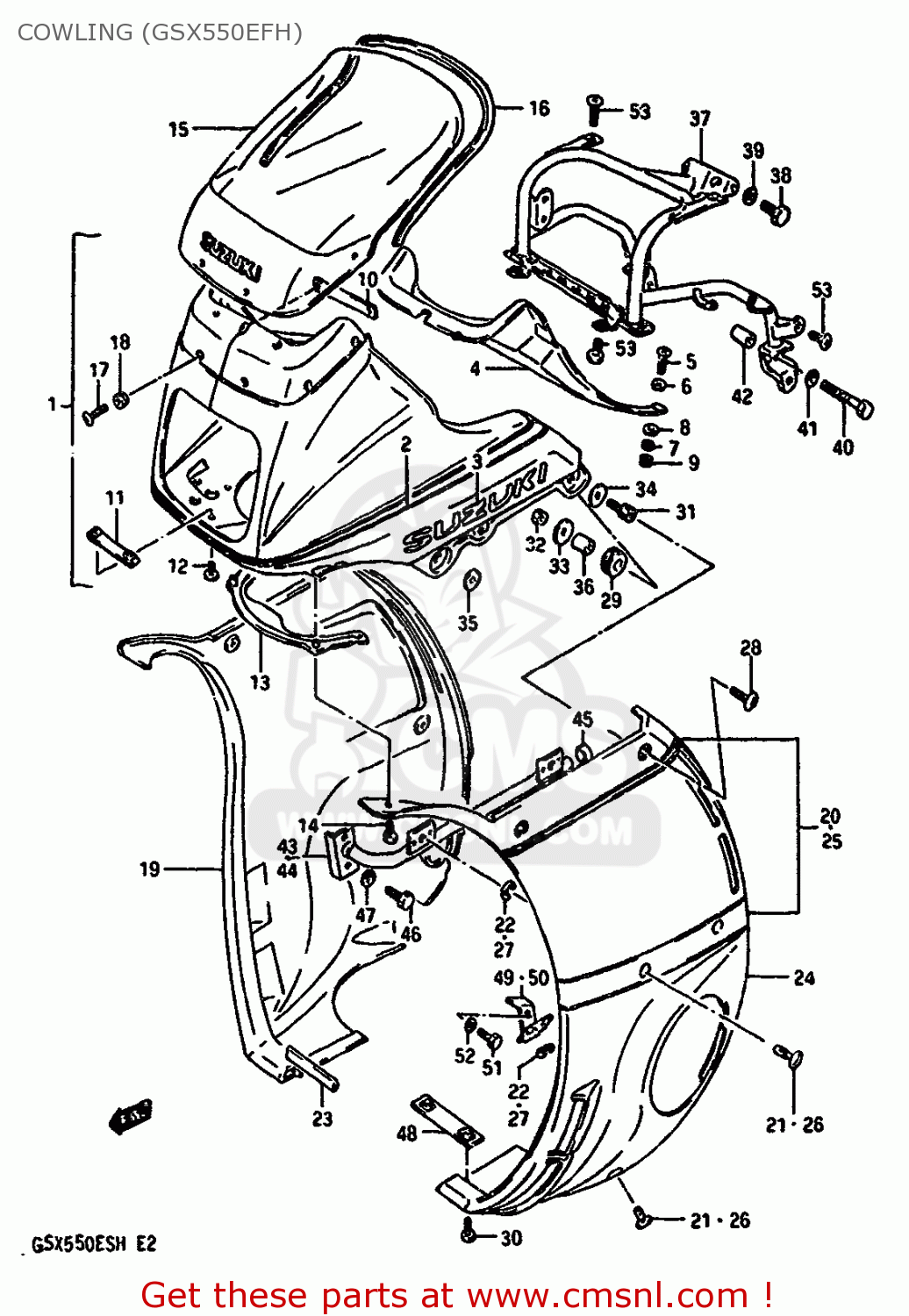

COWLING (GSX550EFH)

GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

Cowling (gsx550efh) diagram GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

COWLING (GSX550EFH) GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)
COWLING (GSX550EFH) GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)
COWLING (GSX550EFH) GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)
prices are in EUR
ref
part #
description
quantity
1-1
94700436007JH
ref: 1-1
COWLING ASSY (WHITE/BLUE)
€ 0.00
1-2
94700436008ZP
ref: 1-2
COWLING ASSY (WHITE/RED)
€ 960.50
2-1
68190434607JF
ref: 2-1
FOR 7JH
TAPE SET
€ 0.00
2-2
68190434609AP
ref: 2-2
FOR 8ZP
TAPE SET
€ 0.00
3
6811109300064
ref: 3
EMBLEM,FUEL TA
€ 11.50
4
9442243400
ref: 4
PANEL,COWLING,UPPER
€ 16.50
5
0214205165
ref: 5
SCREW
0214205165
€ 2.50
6
0832221055
ref: 6
WASHER,5MM
0832221055
€ 2.50
7
0832121055
ref: 7
WASHER,LOCK
0832121055
€ 3.00
8
0832221055
ref: 8
WASHER,5MM
0832221055
€ 2.50
9
0831012055
ref: 9
NUT ,5MM
0831012055
€ 2.50
10
9441643400
ref: 10
BRACKET,COWLING,UPPER
€ 3.50
11
9442043400
ref: 11
BRACKET,COWLING,LOWER
€ 2.50
12
0214205127
ref: 12
SCREW
0214205127
€ 1.50
13
9448043410
ref: 13
COVER,COWLING,LOWER
9448043410
€ 19.00
14
0214205164
ref: 14
SCREW
0214205164
€ 2.50
15-1
9461143421
ref: 15-1
WINDOW
9461143421
€ 281.50
15-2
9461143431
ref: 15-2
E17
WINDOW,COWLING
€ 281.50
16-1
9463144110
ref: 16-1
L:1920 700
MOLD,COWLING
9463144110
€ 18.00
16-2
9463143410
ref: 16-2
E17
MOULDING
€ 14.00
17
0214205164
ref: 17
SCREW
0214205164
€ 2.50
18
0932005008
ref: 18
CUSHION
0932005008
€ 5.00
19-1
94450434507JH
ref: 19-1
FOR 7JH
COVER,RH (WHITE/BLUE)
€ 0.00
19-2
94450434508ZP
ref: 19-2
FOR 8ZP
COVER,RH (WHITE/RED)
€ 148.00
20-1
68680434807JF
ref: 20-1
FOR 7JH
TAPE SET
€ 0.00
20-2
68680434809AP
ref: 20-2
FOR 8ZP
TAPE SET
€ 0.00
21
9449143400
ref: 21
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
22
0833211075
ref: 22
E-RING
€ 2.00
23
9463143450
ref: 23
MOLDING,LOWER
€ 3.50
24-1
94460434507JH
ref: 24-1
FOR 7JH
COVER,LH (WHITE/BLUE)
€ 0.00
24-2
94460434508ZP
ref: 24-2
FOR 8ZP
COVER,LH (WHITE/RED)
€ 175.50
25-1
68690434807JF
ref: 25-1
FOR 7JH
TAPE SET
€ 0.00
25-2
68690434809AP
ref: 25-2
FOR 8ZP
TAPE SET
€ 0.00
26
9449143400
ref: 26
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
27
0833211075
ref: 27
E-RING
€ 2.00
28
9443943400
ref: 28
SCREW,COWLING SIDE COVER
9443943400
€ 3.50
29
0932008018
ref: 29
CUSHION
0932008018
€ 4.00
30
0214206127
ref: 30
SCREW 6X12
0214206127
€ 1.50
31
9447543400
ref: 31
BOSS,COWLING BODY,SIDE
9447543400
€ 8.50
32
0831011065
ref: 32
NUT
€ 2.00
33
0916006004
ref: 33
WASHER (6.5X24X1.6)
0916006004
€ 1.50
34
0916006081
ref: 34
WASHER, QUTER, REAR
€ 2.00
35
0916006028
ref: 35
WASHER(6.5X18X1)
0916006028
€ 1.50
36
0918006027
ref: 36
SPACER (6.3X9.1X6.7)
0918006027
€ 3.00
37
9451043400
ref: 37
BRACE,COWLING
9451043400
€ 112.50
38
0110708165
ref: 38
BOLT
€ 2.00
39
0832121084
ref: 39
WASHER,LOCK,8.
0832121084
€ 2.50
40
0110708455
ref: 40
BOLT
€ 2.50
41
0832121084
ref: 41
WASHER,LOCK,8.
0832121084
€ 2.50
42
0918008057
ref: 42
SPACER (8.2X12.5X23.5)
0918008057
€ 2.00
43
9452043400
ref: 43
BRACE,COWLING SIDE,RIGHT
9452043400
€ 33.50
44
9456043400
ref: 44
BRACE,COWLING SIDE,LEFT
9456043400
€ 33.50
45
0932912004
ref: 45
CUSHION
0932912004
€ 1.50
46
0110706125
ref: 46
BOLT
€ 2.00
47
0832121064
ref: 47
WASHER,LOCK
0832121064
€ 2.00
48
9457043400
ref: 48
BRACE,COWLING,LOWER,FRONT
9457043400
€ 3.50
49
9458043400
ref: 49
BRACKET,COWLING SIDE,RIGHT
9458043400
€ 7.00
50
9459043400
ref: 50
BRACKET,COWLING SIDE,LEFT
9459043400
€ 7.50
51
0110706125
ref: 51
BOLT
€ 2.00
52
0832121064
ref: 52
WASHER,LOCK
0832121064
€ 2.00
53
0214206125
ref: 53
SCREW 6X12
0214206125
€ 2.00
