STEERING STEM (GSX550EF/EUF/EG/EUG/EUH)

GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

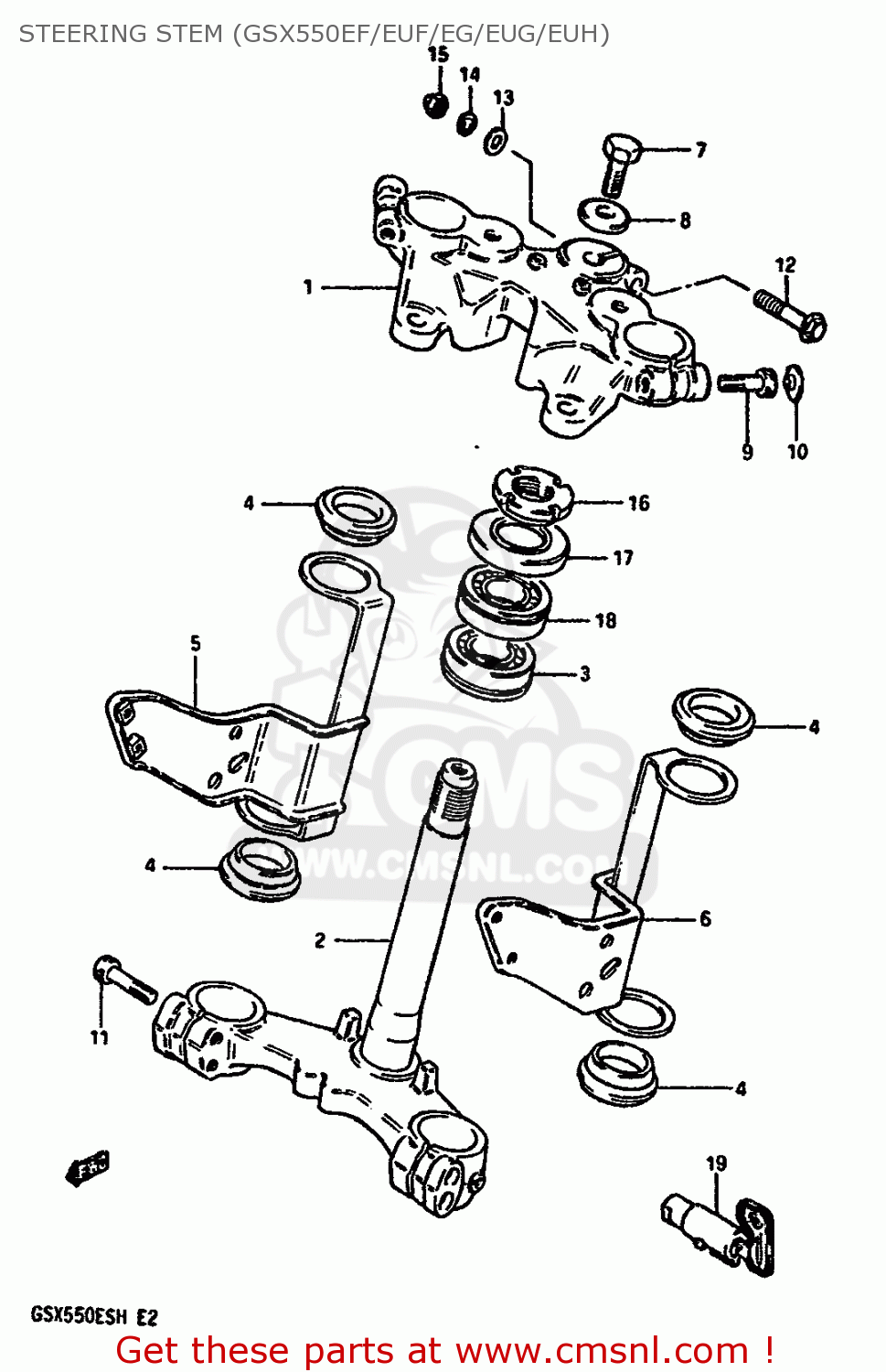

Steering stem (gsx550ef/euf/eg/eug/euh) diagram GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

STEERING STEM (GSX550EF/EUF/EG/EUG/EUH) GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

STEERING STEM (GSX550EF/EUF/EG/EUG/EUH) GSX550E 1986 (G) GENERAL EXPORT GERMANY (E01 E22)

prices are in EUR

ref

part #

description

quantity

1

513114340015T
ref: 1

HEAD,STEERING STEM

€ 134.00

2

514104342015T
ref: 2

STEM,STEERING

€ 217.00

3

0926530005
ref: 3

BEARING

€ 49.50

4

5155349000
ref: 4

CUSHION,HEADLAMP BRACKET

€ 4.50

5

515304340115T
ref: 5

BRACKET,HEADLAMP,RIGHT

€ 37.00

6

515404340115T
ref: 6

BRACKET,HEADLAMP,LEFT

€ 39.00

7

5135345380
ref: 7

NUT,STEM HEAD

€ 8.50

8

5135649300A
ref: 8

WASHER,STEERING STEM B

€ 4.00

9

5135200A00
ref: 9

BOLT,FORK INNER TUBE FITTING

€ 6.00

10

0925008010
ref: 10

CAP(OD:20)

€ 2.50

11

0711008305
ref: 11

BOLT, REAR (8X30)

€ 3.00

12

0151708504
ref: 12

BOLT, UPPER

€ 2.50

13

0832211084
ref: 13

WASHER

€ 1.50

14

0832121084
ref: 14

WASHER,LOCK,8.

€ 2.50

15

0831311085
ref: 15

NUT,M8X1.25X12

€ 2.00

16

5163134200
ref: 16

NUT,STEERING STEM

€ 23.00

17

5164340502
ref: 17

DUST SEAL,STEERING UPR

€ 8.00

18

0926525008
ref: 18

TAPER,ROLLER BEARING

€ 48.50

19

5190030901
ref: 19
E22

LOCK ASSY,STEERING(NEIMAN)

€ 168.50
