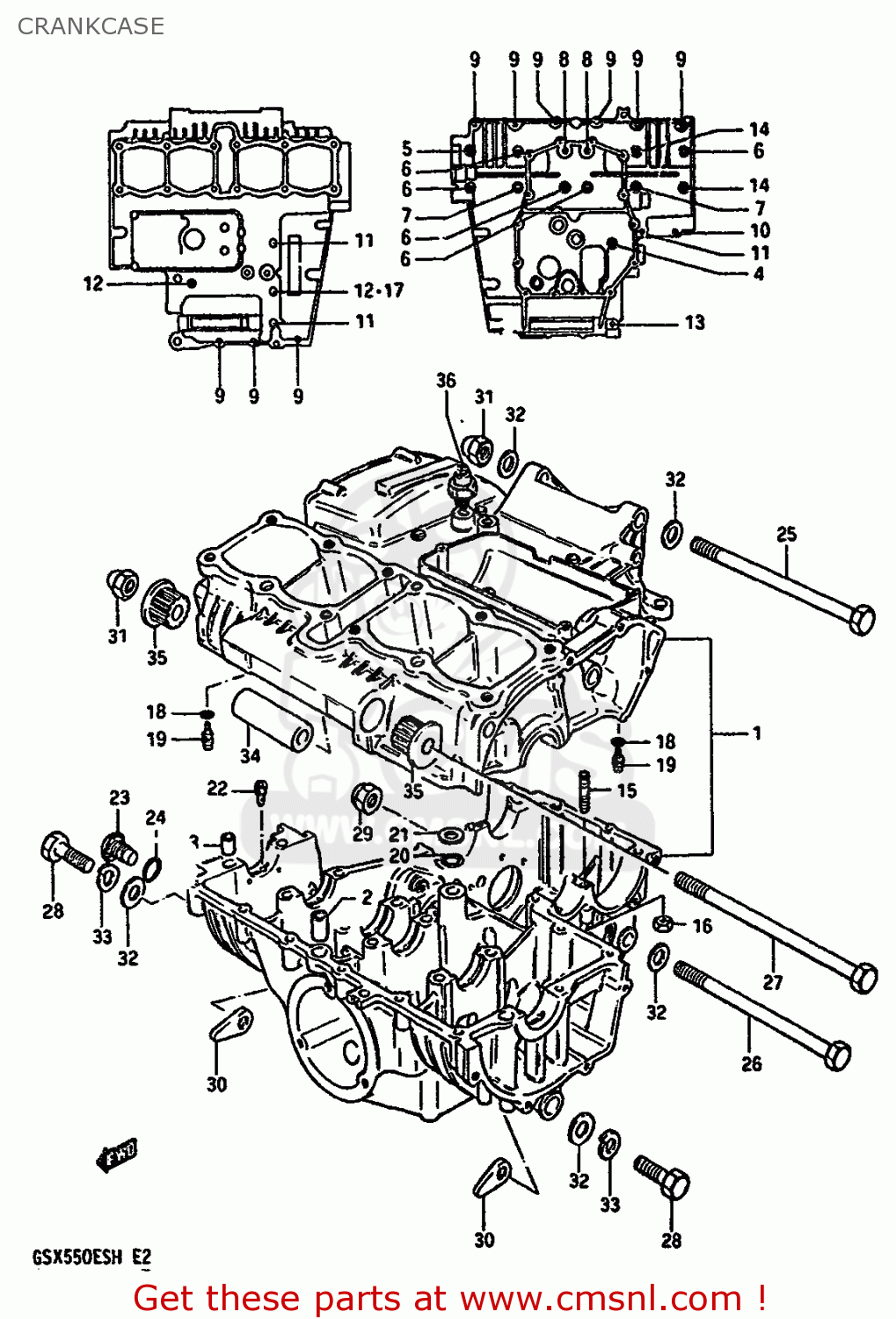

CRANKCASE

ref

part #

description

quantity

1

1130043832
ref: 1

CRANKCASE SET

€ 900.50

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611005
ref: 3

PIN (11X20)(SUS)

€ 6.50

4

0910306060
ref: 4

BOLT(6X100)

€ 2.50

5

0910308061
ref: 5

BOLT

€ 3.50

6

0910308024
ref: 6

BOLT

€ 3.00

7

0910308091
ref: 7

BOLT

€ 3.50

8

0711008556
ref: 8

BOLT

€ 3.50

9

0151706404
ref: 9

BOLT

€ 2.00

10

0151706555
ref: 10

BOLT 6X55

€ 2.00

11

0151706855
ref: 11

BOLT

€ 2.50

12

0151706955
ref: 12

BOLT (5X95)

€ 3.00

13

0151708605
ref: 13

BOLT 8X60

€ 3.50

14

0151708905
ref: 14

BOLT (8X90)

€ 3.50

15

0142106505
ref: 15

STUD BOLT

€ 2.50

16

0831616064
ref: 16

NUT 6MM

€ 2.50

17

0916806018
ref: 17

GASKET(6.2X13X1.2) (NAS)

€ 2.00

18

0928004004
ref: 18

O RING(D:1.2,ID:4)

€ 2.00

19

0949320014
ref: 19

JET,OIL GALLERY

€ 8.00

20

0928013001
ref: 20

O RING(D:3.2,ID:12.9)

€ 4.00

21

0821110201
ref: 21

WASHER,THRUST

€ 2.00

22

0949328011
ref: 22

JET,AIR

€ 12.50

23

0924816003
ref: 23

PLUG

€ 16.50

24

0928017002
ref: 24

O RING(D:2.4,ID:16.8)

€ 3.50

25

0910010136
ref: 25

BOLT

€ 28.50

26

0910010137
ref: 26

BOLT

€ 10.50

27

0910310072
ref: 27

BOLT

€ 7.00

28

0110710355
ref: 28

BOLT

€ 2.50

29

0831931105
ref: 29

NUT 10MM

€ 3.00

30

0915910020
ref: 30

NUT

€ 7.50

31

0915910039
ref: 31

NUT

€ 8.50

32

0832211105
ref: 32

WASHER

€ 2.50

33

0832121104
ref: 33

WASHER,LOCK

€ 3.00

34

0918010093
ref: 34

SPACER (10.2X16X105.5)

€ 9.00

35

0931910042
ref: 35

BUSH

€ 16.50

36

3782033200
ref: 36

SWITCH ASSEMBLY

€ 29.00
