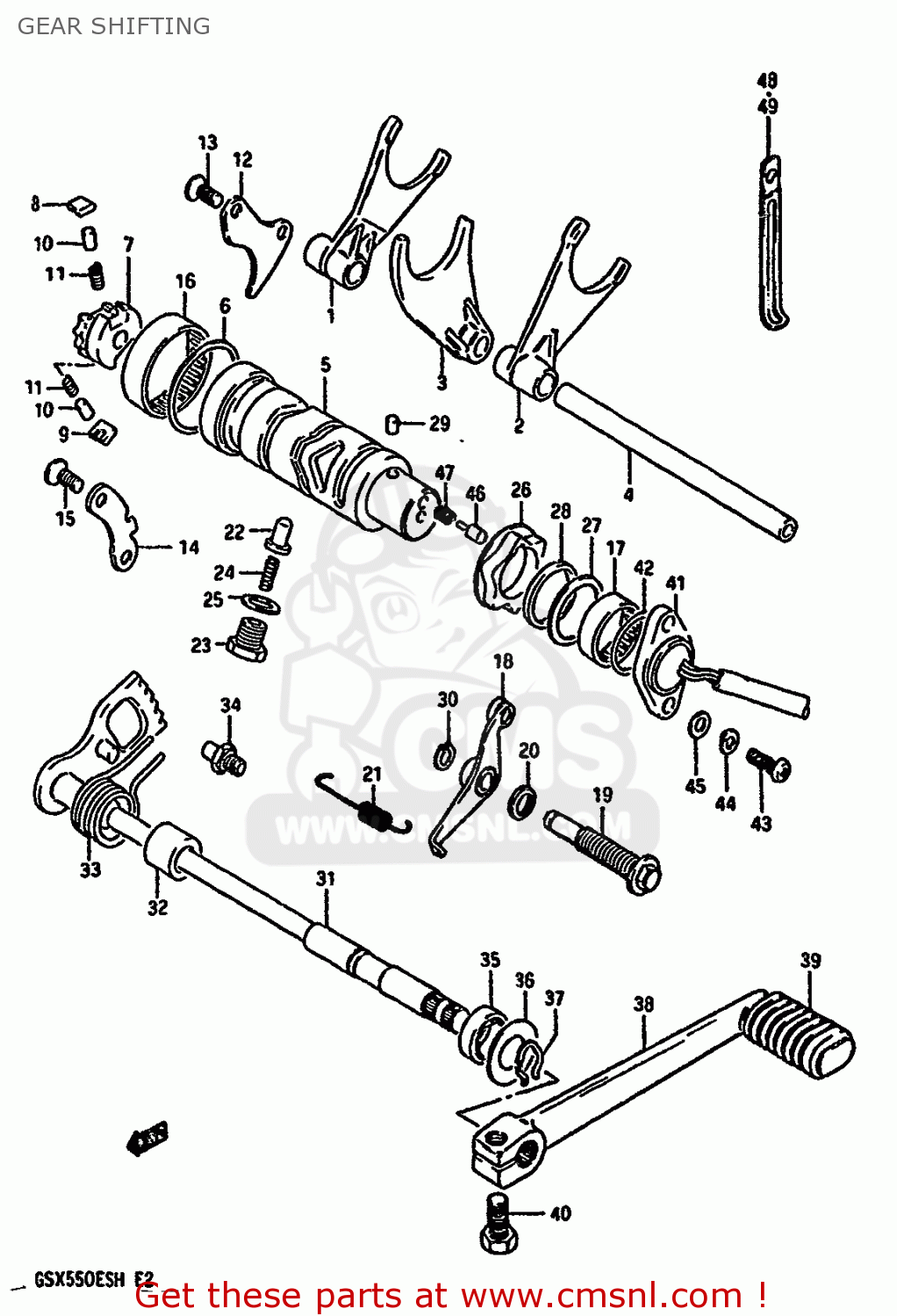

GEAR SHIFTING

ref

part #

description

quantity

1

2521143400
ref: 1

FORK,GEAR SHIFT NO.1

€ 35.50

2

2522143400
ref: 2

FORK,GEAR SHIFT NO.2

€ 65.50

3

2523143400
ref: 3

FORK,GEAR SHIFT NO.3

€ 22.00

4

2541115501
ref: 4

SHAFT,GEAR SHIFT FORK

€ 16.50

5

2531043400
ref: 5

CAM,GEAR SHIFT

€ 122.50

6

0916040006
ref: 6

WASHER (40X49X1)

€ 1.50

7

2532231301
ref: 7

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

8

2532334200
ref: 8

PAWL,GEAR SHIFT NO.1

€ 6.00

9

2532434200
ref: 9

PAWL,GEAR SHIFT NO.2

€ 6.00

10

0926105003
ref: 10

PIN(5X8)

€ 1.50

11

0944004003
ref: 11

SPRING

€ 1.50

12

2533115501
ref: 12

LIFTER,GEAR SHIFT PAWL

€ 3.00

13

0212206128
ref: 13

SCREW

€ 3.00

14

2534143400
ref: 14

GUIDE,GEAR SHIFT CAM

€ 4.50

15

0212206128
ref: 15

SCREW

€ 3.00

16

0926343001
ref: 16

BEARING(43X49X12)

€ 30.00

17

0926325018
ref: 17

BEARING(25X32X12)

€ 17.50

18

2535043400
ref: 18

STOPPER,GEAR SHIFTING

€ 11.50

19

2535343400
ref: 19

HOLDER,SHIFTING CAM STOPPER

€ 0.00

20

0916810002
ref: 20

GASKET(10X14X3.6) (NAS)

€ 2.00

21

0944308032
ref: 21

SPRING

€ 2.50

22

2535131302
ref: 22

STOPPER,GEAR SHIFTING

€ 6.50

23

2535430000
ref: 23

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

24

0944006027
ref: 24

SPRING

€ 3.00

25

0916814004
ref: 25

GASKET(14X19.2X2) (NAS)

€ 2.50

26

2538104700
ref: 26

PLATE,GEAR SHIFT CAM STOPPER

€ 13.00

27

0821125321
ref: 27

WASHER

€ 3.00

28

0821225305
ref: 28

WASHER

€ 0.00

29

0621104063
ref: 29

PIN 4X6

€ 2.00

30

0833131086
ref: 30

CIRCLIP

€ 2.00

31

2551043400
ref: 31

SHAFT,GEAR SHIFT

€ 66.50

32

0918012068
ref: 32

SPACER(12X20X15.3)

€ 3.00

33

0944426013
ref: 33

SPRING

€ 3.50

34

2567101000
ref: 34

STOPPER,GEAR SHIFT CAM

€ 3.00

35

0928512002
ref: 35

OIL SEAL

€ 7.00

36

0916012020
ref: 36

WASHER (12.5X27X1.6)

€ 2.00

37

0938412001
ref: 37

SPRING,RETAINER

€ 2.00

38

2560043402
ref: 38

LEVER ASSEMBLY,GEAR SHIFTING

€ 52.50

39

2565249300
ref: 39

RUBBER,PEDAL

€ 5.50

40

0110708208
ref: 40

BOLT

€ 3.00

41

3772043400
ref: 41

TERMINAL BASE ASSY,GEAR SHIFT

€ 59.00

42

0928026003
ref: 42

O-RING (D:2.4 ID:26.2)

€ 2.50

43

0912505102
ref: 43

SCREW(5X14)

€ 2.50

44

0832121057
ref: 44

LOCK WASHER

€ 2.00

45

0832221057
ref: 45

WASHER

€ 2.50

46

0920905011
ref: 46

PIN(5X15.5)

€ 2.00

47

0944004010
ref: 47

SPRING

€ 1.50

48

0940406401
ref: 48

CLAMP L:35

€ 2.50

49

0940406404
ref: 49

CLAMP

€ 3.00
