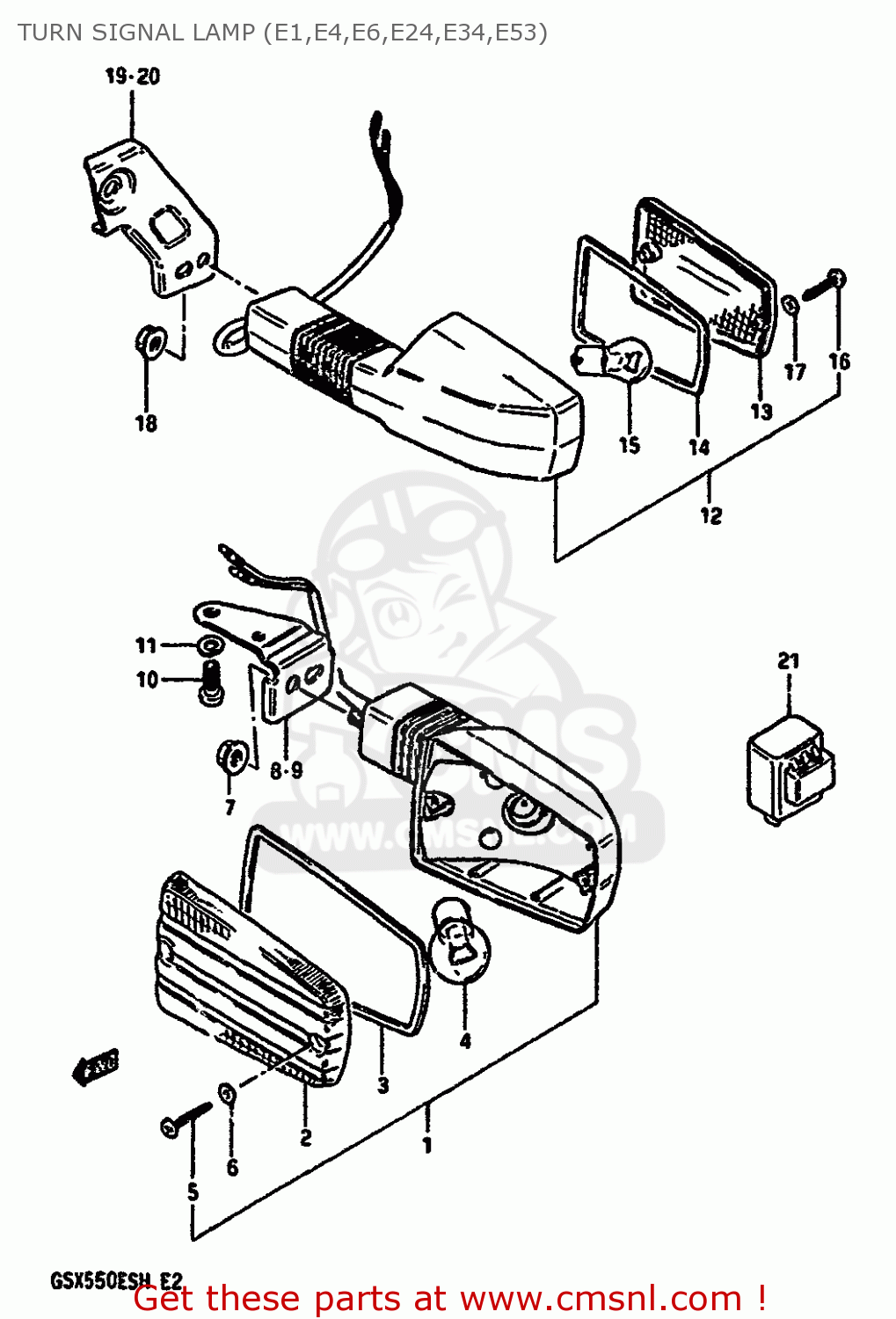

TURN SIGNAL LAMP (E1,E4,E6,E24,E34,E53)

ref

part #

description

quantity

1-1

3560143400
ref: 1-1
E1,E6,E24

LAMP ASSY,REAR TURN SIGNAL

€ 98.50

1-2

3560143421
ref: 1-2
E4,E34,E53

LAMP ASSY, FRONT TURN SIGNAL

€ 98.50

2

3561243410
ref: 2

LENS

€ 11.00

3

3561343410
ref: 3

GASKET (NAS)

€ 3.50

4-1

0947112006
ref: 4-1
E1,E6,E24

BULB(12V23W,STANLEY,A4577A)

€ 4.00

4-2

0947112045
ref: 4-2
E4,E34,E53 EXECUTED

BULB(12V21W)

€ 5.00

5

0321104208
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0831626085
ref: 7

NUT M8

€ 1.50

8

3567143400
ref: 8
GSX550ESF/EFF/ESG/EF

BRACKET,FRONT TURN SIGNAL

€ 5.00

9

3568143400
ref: 9
GSX550ESF/EFF/ESG/EF

BRACKET,FRONT TURN SIGNAL

€ 5.50

10

0211206166
ref: 10

SCREW

€ 2.00

11

0832121066
ref: 11

WASHER,LOCK

€ 2.00

12-1

3560143400
ref: 12-1
E1,E6,E24

LAMP ASSY,REAR TURN SIGNAL

€ 98.50

12-2

3560343421
ref: 12-2
E4,E34,E53

LAMP ASSY, REAR TURN SIGNAL

€ 75.00

13-1

3561243410
ref: 13-1
E1,E6,E24

LENS

€ 11.00

13-2

3565243420
ref: 13-2
E4,E34,E53

LENS,TURN SIGN

€ 11.50

14

3561343410
ref: 14

GASKET (NAS)

€ 3.50

15-1

0947112006
ref: 15-1
E1,E6,E24

BULB(12V23W,STANLEY,A4577A)

€ 4.00

15-2

0947112045
ref: 15-2
E4,E34,E53 EXECUTED

BULB(12V21W)

€ 5.00

16

0321104208
ref: 16

SCREW

€ 1.50

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

0831626086
ref: 18

NUT

€ 1.50

19

3562143400
ref: 19

BRACKET,REAR TURN SIGNAL

€ 7.50

20

3564143400
ref: 20

BRACKET,REAR TURN SIGNAL

€ 7.50

21

3861031310
ref: 21

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

all assemblies
