Buy Suzuki GSX Parts Online


FUEL TANK (GSX550EF/EUF/EG/EUG)

GSX550EU 1985 (F) GERMANY (E22)

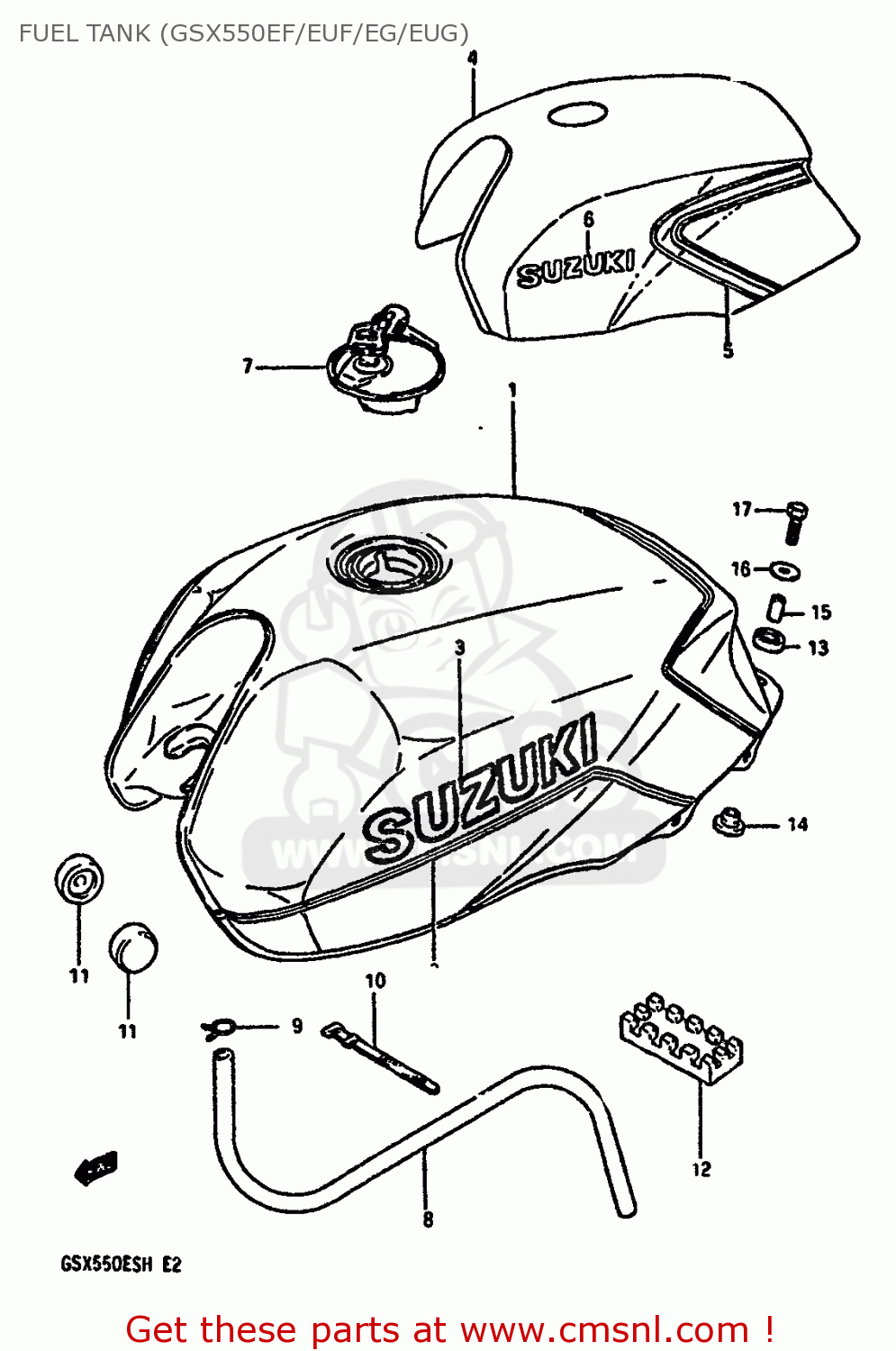

Fuel tank (gsx550ef/euf/eg/eug) diagram GSX550EU 1985 (F) GERMANY (E22)

FUEL TANK (GSX550EF/EUF/EG/EUG) GSX550EU 1985 (F) GERMANY (E22)
FUEL TANK (GSX550EF/EUF/EG/EUG) GSX550EU 1985 (F) GERMANY (E22)
FUEL TANK (GSX550EF/EUF/EG/EUG) GSX550EU 1985 (F) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1-1
49100434107JH
ref: 1-1
MODEL F
TANK ASSEMBLY,FUEL
€ 582.00
1-2
49100434607JH
ref: 1-2
MODEL F E22
TANK ASSY,FUEL
€ 582.00
1-3
49100434107JJ
ref: 1-3
MODEL F
TANK ASSEMBLY,FUEL
€ 582.00
1-4
49100434607JJ
ref: 1-4
MODEL F E22
TANK ASSY,FUEL
€ 582.00
2-1
68110434407JF
ref: 2-1
MODEL F,FOR 7JH
TAPE SET,FUEL TANK
€ 0.00
2-2
68110434407JG
ref: 2-2
MODEL F,FOR 7JJ
TAPE SET,FUEL TANK
€ 40.00
3
6811143400019
ref: 3
MODEL F
EMBLEM
6811143400019
€ 9.50
4-1
49200434107JH
ref: 4-1
MODEL G
TANK ASSEMBLY,FUEL
€ 0.00
4-2
44100436107JH
ref: 4-2
MODEL G E22
TANK ASSY,FUEL
€ 582.00
4-3
49200434107JK
ref: 4-3
MODEL G
TANK ASSEMBLY,FUEL
€ 0.00
4-4
44100436107JK
ref: 4-4
MODEL G E22
TANK ASSY,FUEL
€ 582.00
5-1
68110434807JF
ref: 5-1
MODEL G,FOR 7JH
TAPE SET,FUEL TANK
€ 0.00
5-2
68110434808BE
ref: 5-2
MODEL G,FOR 7JK
TAPE SET,FUEL TANK
€ 43.50
6-1
6811143400019
ref: 6-1
MODEL G,FOR 7JH
EMBLEM
6811143400019
€ 9.50
6-2
681114340022R
ref: 6-2
MODEL G,FOR 7JK
EMBLEM
681114340022R
€ 8.00
7
4420043410KEY
ref: 7
CAP ASSY,FUEL TANK
4420043410KEY
€ 125.50
8
0934305165
ref: 8
HOSE,FUEL
0934305165
€ 13.00
9
0940108402
ref: 9
CLIP
0940108402
€ 1.50
10
0940718401
ref: 10
CLAMP(L:187)
0940718401
€ 2.00
11
0932910007
ref: 11
CUSHION
0932910007
€ 3.00
12
4454143400
ref: 12
CUSHION,FUEL TANK
4454143400
€ 7.50
13
0932014013
ref: 13
CUSHION
0932014013
€ 3.00
14
0932010020
ref: 14
CUSHION
0932010020
€ 4.00
15
0918006107
ref: 15
SPACER (6.4X9X20)
0918006107
€ 3.00
16
0916006072
ref: 16
WASHER (6.5X24X1.6)
0916006072
€ 2.00
17
0110706306
ref: 17
BOLT
0110706306
€ 2.50
