AIR CLEANER (SEE NOTE 1)

GSX600F 1996 (T) (E02 E17 E22 E25 E34)

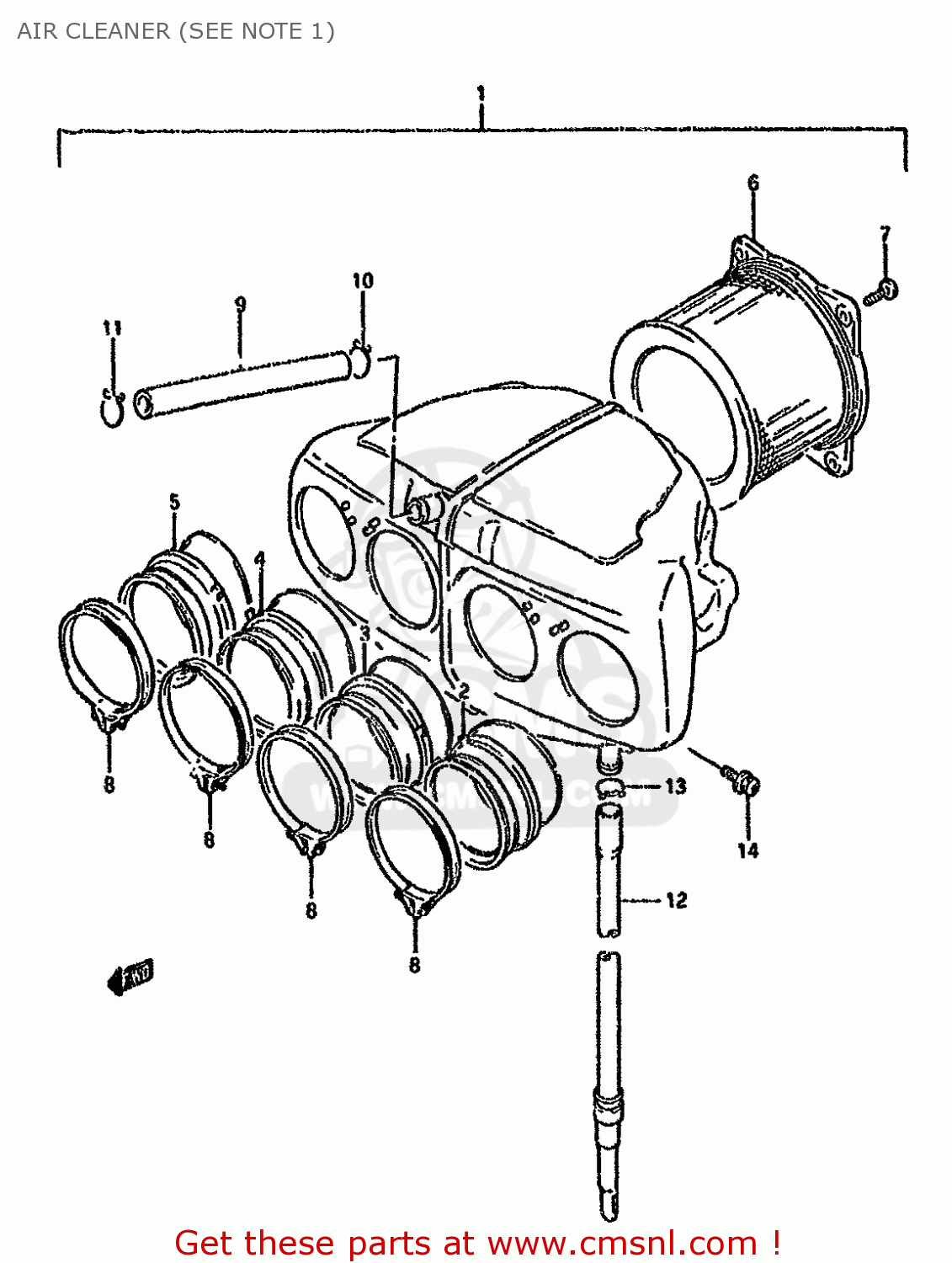

Air cleaner (see note 1) diagram GSX600F 1996 (T) (E02 E17 E22 E25 E34)

AIR CLEANER (SEE NOTE 1) GSX600F 1996 (T) (E02 E17 E22 E25 E34)
AIR CLEANER (SEE NOTE 1) GSX600F 1996 (T) (E02 E17 E22 E25 E34)
AIR CLEANER (SEE NOTE 1) GSX600F 1996 (T) (E02 E17 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1370020C01
ref: 1-1
MODEL L/M/N/P SEE NO
CLEANER ASSEMBLY,AIR
€ 233.50
1-2
1370020C03
ref: 1-2
MODEL R/S
CLEANER ASSY,AIR
€ 233.50
1-3
1370020C23
ref: 1-3
MODEL T
CLEANER ASSY, AIR
€ 174.50
2
1388120C01
ref: 2
TUBE,OUTLET,L
1388120C01
€ 24.50
3
1388220C01
ref: 3
TUBE,OUTLET ML
1388220C01
€ 28.50
4
1388320C01
ref: 4
TUBE,OUTLET MR
1388320C01
€ 22.50
5
1388420C01
ref: 5
TUBE,OUTLET,R
1388420C01
€ 24.50
6
1378020C00
ref: 6
FILTER ASSY
1378020C00
€ 43.50
7
0214205123
ref: 7
SCREW 5X12
0214205123
€ 1.50
8
0940266208
ref: 8
-13826-20C00
CLAMP
0940266208
€ 6.50
9
1385319C00
ref: 9
TUBE,BREATHER
1385319C00
€ 14.00
10
0940116401
ref: 10
-13828-37300
CLIP
0940116401
€ 3.00
11
0940114301
ref: 11
CLIP
0940114301
€ 2.00
12
1387011458
ref: 12
-13870-11477
TUBE,DRAIN
1387011458
€ 13.50
13
0940113409
ref: 13
-13824-00A00
CLIP
0940113409
€ 2.50
14
0211276163
ref: 14
SCREW
0211276163
€ 2.00
