GEAR SHIFTING
GSX600F 1996 (T) (E02 E17 E22 E25 E34)

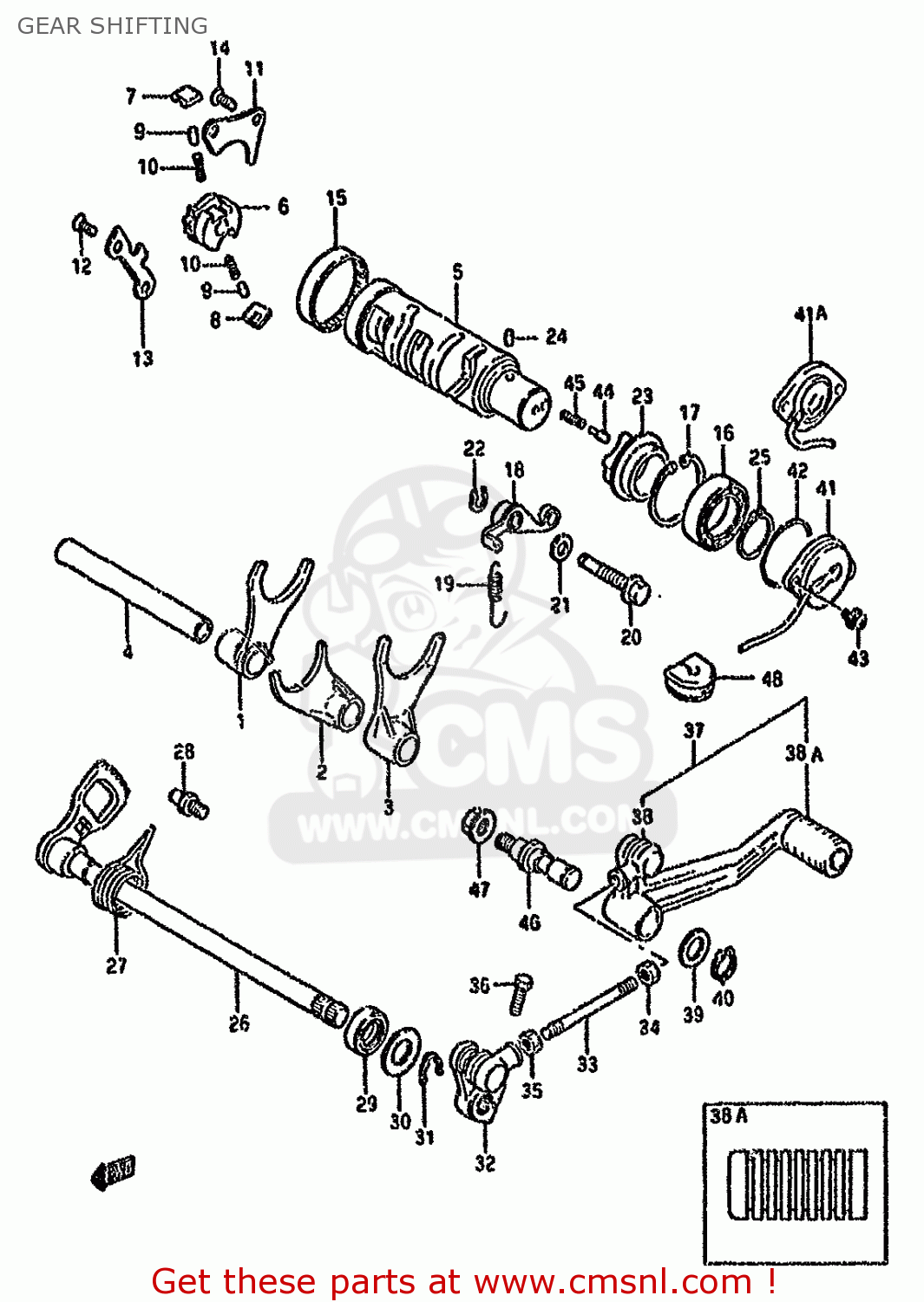

Gear shifting diagram GSX600F 1996 (T) (E02 E17 E22 E25 E34)
GEAR SHIFTING GSX600F 1996 (T) (E02 E17 E22 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
1
2521127A00
ref: 1
FORK,GEAR SHIFT NO.1
€ 102.50
2
2522127A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 83.50
3
2523127A00
ref: 3
FORK,GEAR SHIFT NO.3
€ 84.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5
2531027A02
ref: 5
CAM,GEAR SHIFT
€ 196.50
6
2532231301
ref: 6
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533131301
ref: 11
LIFTER,GEAR SHIFT PAWL
€ 7.00
12-1
0212206128
ref: 12-1
MODEL J/K/L/M/N/P/R
SCREW
€ 3.00
12-2
0212206123
ref: 12-2
MODEL S/T
SCREW
€ 3.00
13
2534127A00
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14-1
0212206128
ref: 14-1
MODEL J/K/L/M/N/P/R
SCREW
€ 3.00
14-2
0212206123
ref: 14-2
MODEL S/T
SCREW
€ 3.00
15
0926343001
ref: 15
BEARING(43X49X12)
€ 30.00
16
0811369050
ref: 16
BEARING
€ 36.00
17
0833141426
ref: 17
CIRCLIP
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
€ 13.00
19
0944309031
ref: 19
SPRING
€ 4.00
20
2535327A00
ref: 20
SHAFT,GEAR SHIFT CAM STOPPER
€ 5.50
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
€ 2.00
22
0833131086
ref: 22
CIRCLIP
€ 2.00
23
2538138400
ref: 23
PLATE,STOPPER
€ 22.00
24
0422104069
ref: 24
PIN
€ 2.00
25
0833131256
ref: 25
CIRCLIP
€ 2.00
26-1
2551019C00
ref: 26-1
MODEL J/K/L/M/N/P/R/
SHAFT,GEAR SHIFT
€ 91.50
26-2
2551019C01
ref: 26-2
MODEL T
SHAFT,GEAR SHIFT
€ 91.50
27
0944426017
ref: 27
SPRING
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
OIL SEAL
€ 7.00
30
0916012020
ref: 30
WASHER (12.5X27X1.6)
€ 2.00
31
0833131126
ref: 31
-09384-12001
CIRCLIP,12 MM
€ 2.00
32
2552019C02
ref: 32
ARM,GEAR SHIFT LINK
€ 53.50
33-1
2552527A10
ref: 33-1
MODEL J/K/L/M/N/P/R
ROD,GEAR SHIFT LINK
€ 6.00
33-2
2552527A20
ref: 33-2
MODEL S
ROD,GEAR SHIFT LINK
€ 6.00
33-3
2552527A30
ref: 33-3
MODEL T
ROD,GEAR SHIFT LINK
€ 6.00
34
0914006011
ref: 34
NUT
€ 1.50
35-1
0831011067
ref: 35-1
MODEL J/K/L/M/N/P
NUT 6MM
€ 2.50
35-2
0831000067
ref: 35-2
MODEL R/S/T
NUT
€ 2.50
36-1
0110706257
ref: 36-1
MODEL J/K/L/M/N/P
BOLT
€ 2.00
36-2
0150006257
ref: 36-2
MODEL R/S/T
BOLT
€ 2.00
37
2560019C04
ref: 37
-25600-19C03
LEVER ASSY,GEAR SHIFT
€ 81.00
38
2552647000
ref: 38
COVER,DUST
€ 3.50
38A
2565220C00
ref: 38A
RUBBER,GEAR SHIFT PEDAL
€ 8.00
39
0916012011
ref: 39
WASHER(12.5X20X1)
€ 1.50
40
0833131126
ref: 40
CIRCLIP,12 MM
€ 2.00
41
3772048B00
ref: 41
MODEL J/K/L/M/N/P/R/
TERMINAL BASE ASSY,NEUTRAL
€ 57.00
41A
3772020C00
ref: 41A
MODEL T
BASE ASSY,GEAR SHIFT TERMINAL
€ 88.50
42-1
0928036001
ref: 42-1
MODEL J/K/L/M/N/P
O RING(D:2.4,ID:36.5)
€ 4.50
42-2
0928035006
ref: 42-2
MODEL R/S/T
O RING(D:2.4,ID:35.5)
€ 4.00
43-1
0913805003
ref: 43-1
MODEL J/K/L/M/N/P
SCREW
€ 1.50
43-2
0211275163
ref: 43-2
MODEL R/S/T
SCREW
€ 2.50
44
0920905011
ref: 44
PIN(5X15.5)
€ 2.00
45
0944004010
ref: 45
SPRING
€ 1.50
46
2561720A00
ref: 46
SHAFT,GEAR SHIFT LEVER
€ 37.00
47-1
0831616108
ref: 47-1
MODEL J/K/L/M/N/P
NUT
€ 2.00
47-2
0831610103
ref: 47-2
MODEL R/S/T
NUT
€ 2.00
48
3388527A01
ref: 48
GROMMET,LEADWIRE
€ 20.50
