OIL PUMP
GSX600F 1996 (T) (E02 E17 E22 E25 E34)

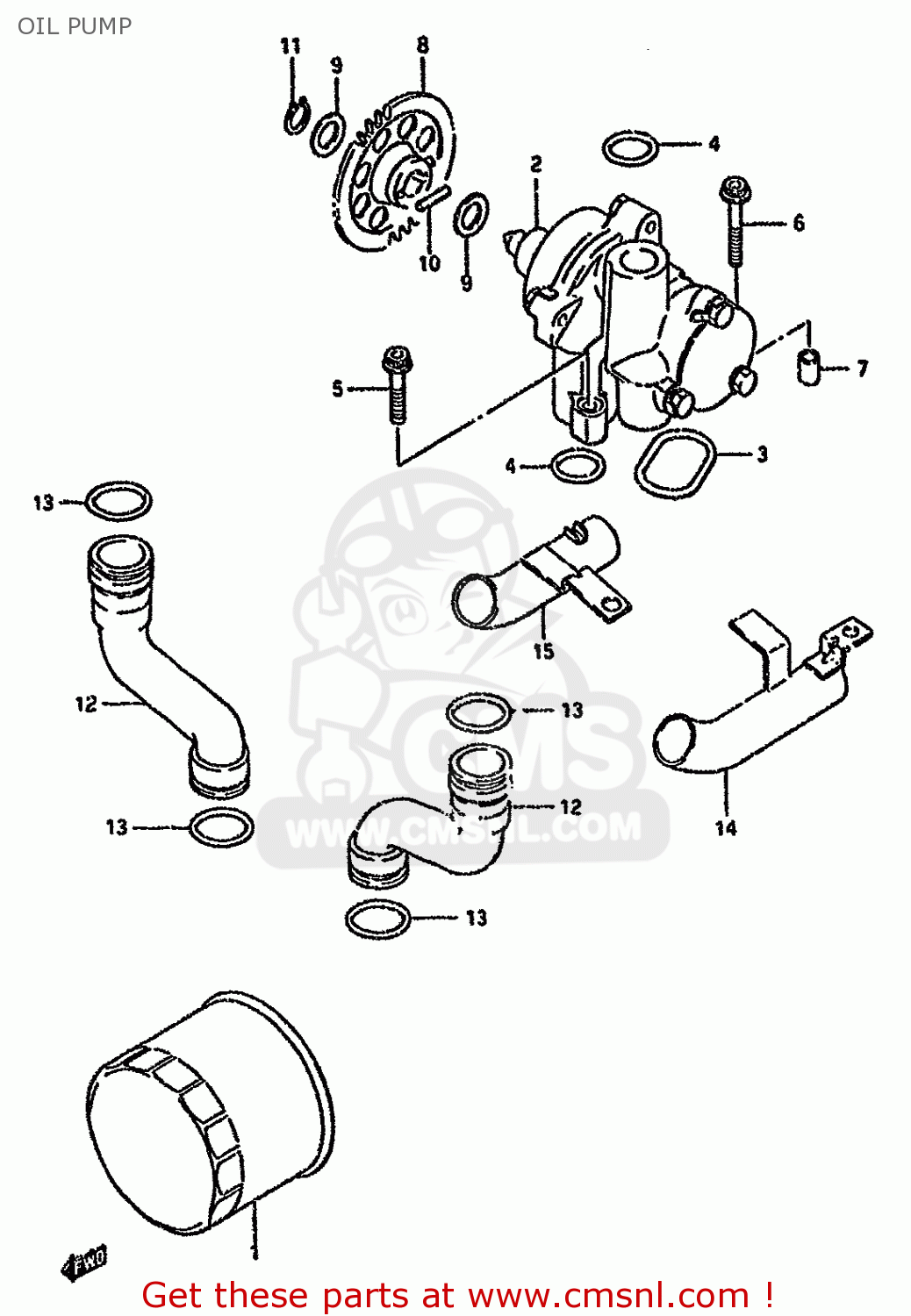

Oil pump diagram GSX600F 1996 (T) (E02 E17 E22 E25 E34)
OIL PUMP GSX600F 1996 (T) (E02 E17 E22 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1651006B01
ref: 1
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
2
1640006B01
ref: 2
-16400-27A00
PUMP ASSY,OIL
€ 348.50
3
1649127A01
ref: 3
O RING,OIL PUMP
€ 13.50
4
0928018009
ref: 4
O RING(D:3.2,ID:17.8)
€ 8.00
5-1
0712006308
ref: 5-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
5-2
0713006303
ref: 5-2
MODEL R/S/T
BOLT
€ 3.00
6-1
0712006358
ref: 6-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
6-2
0713006353
ref: 6-2
MODEL R/S/T
BOLT
€ 3.50
7
0421109129
ref: 7
PIN
€ 2.00
8
1633219C00
ref: 8
GEAR,OIL PUMP DRIVEN(NT:37)
€ 60.00
9
0822112205
ref: 9
SHIM
€ 1.50
10
0926105006
ref: 10
PIN(5X18)
€ 1.50
11
0833131126
ref: 11
CIRCLIP,12 MM
€ 2.00
12
1648117D00
ref: 12
PIPE,OIL OUTLET
€ 47.00
13
0928022016
ref: 13
O RING(D:3.7,ID:21.7)
€ 5.50
14
1653027A02
ref: 14
PIPE,OIL OUTLET UNDER,L
€ 22.00
15
1654027A02
ref: 15
PIPE,OIL OUTLET UNDER,R
€ 23.00
