STARTER CLUTCH

GSX600F 1996 (T) (E02 E17 E22 E25 E34)

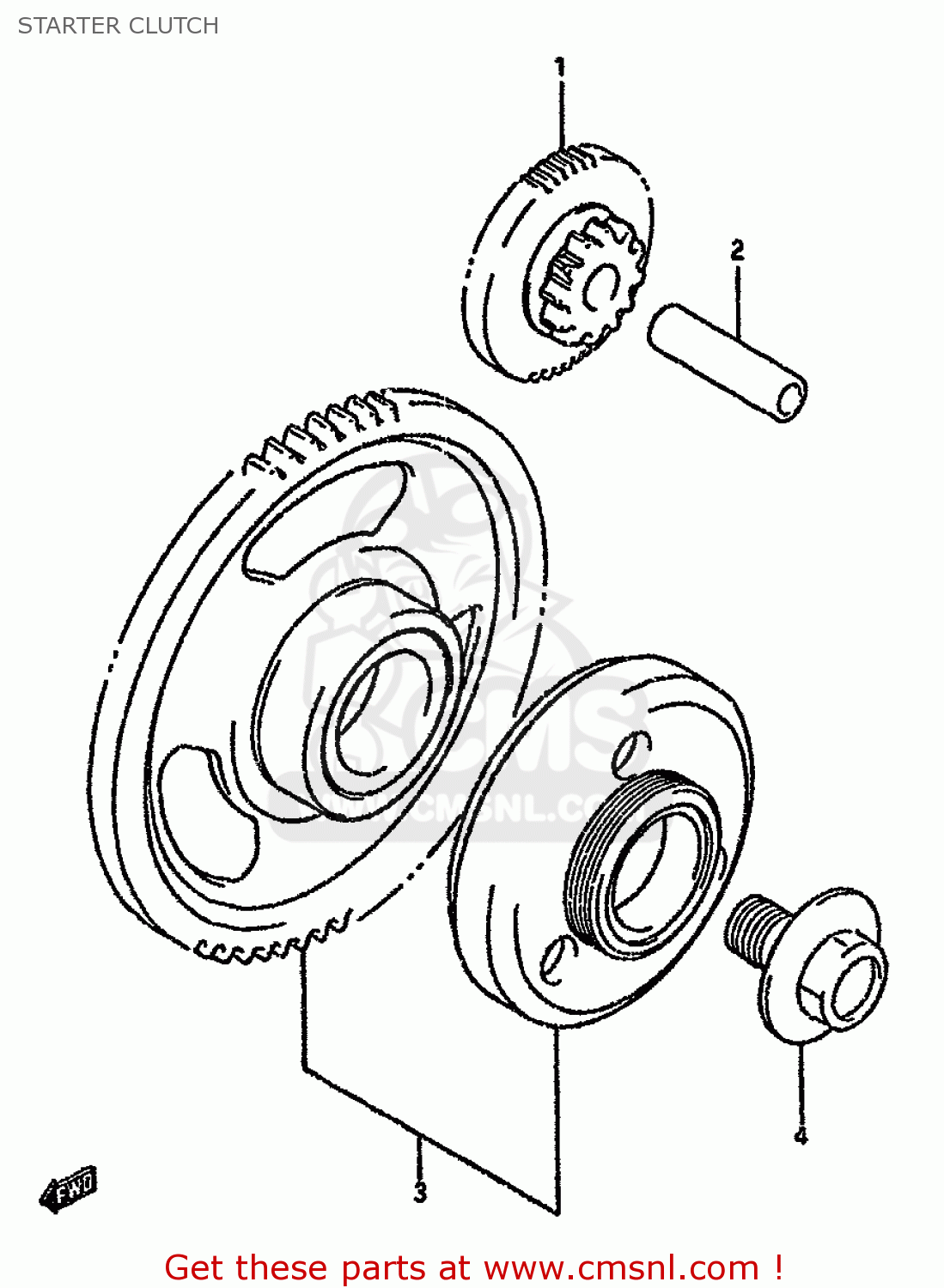

Starter clutch diagram GSX600F 1996 (T) (E02 E17 E22 E25 E34)

STARTER CLUTCH GSX600F 1996 (T) (E02 E17 E22 E25 E34)

STARTER CLUTCH GSX600F 1996 (T) (E02 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3-1

1260017811
ref: 3-1
MODEL J/K/L/M/N/P

CLUTCH SET,STARTER

€ 377.50

3-2

1260048811
ref: 3-2
MODEL R/S/T

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
