BATTERY (MODEL K/L/M/N/P/R/S/T)

GSX600F KATANA 1994 (R) USA (E03)

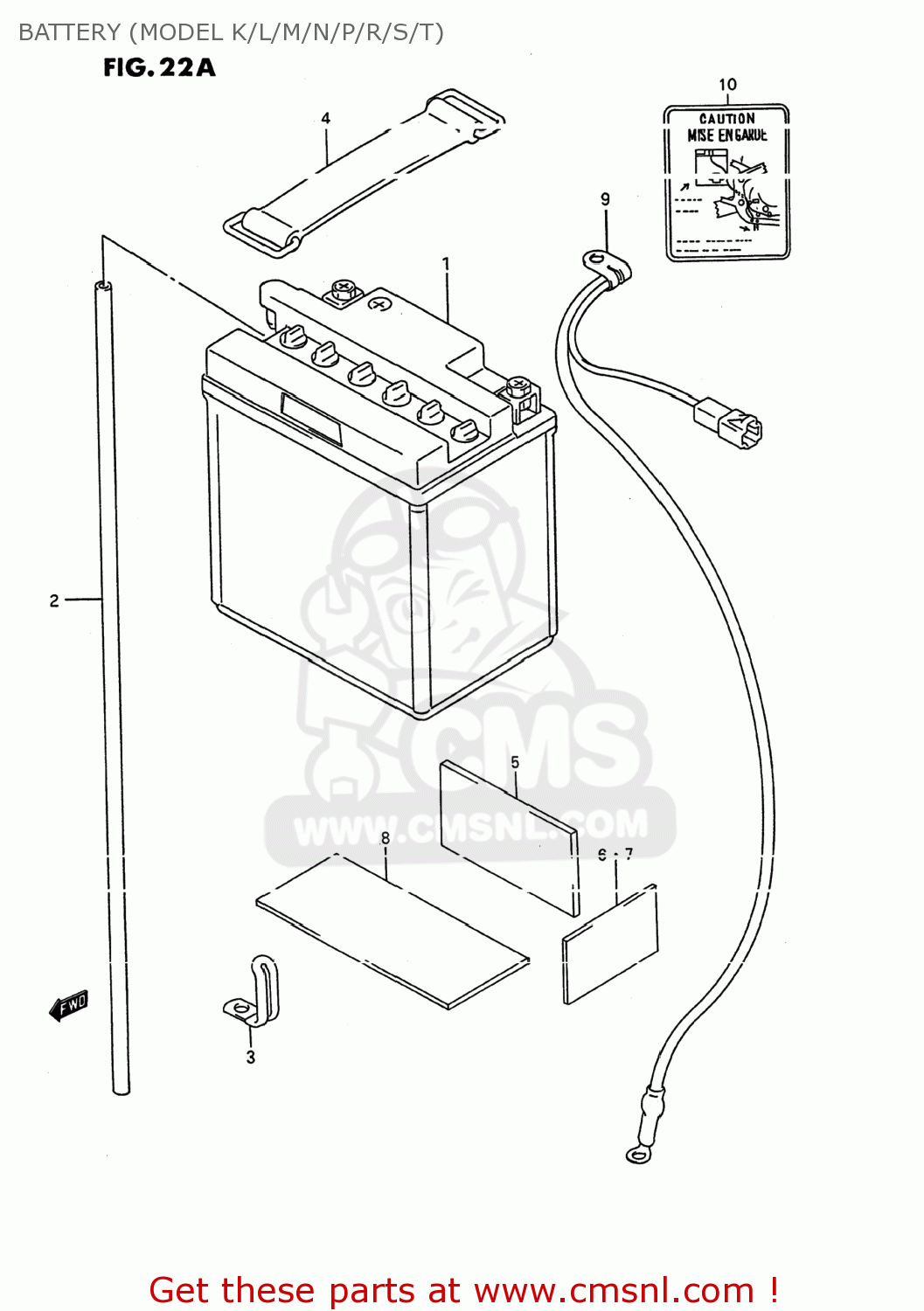

Battery (model k/l/m/n/p/r/s/t) diagram GSX600F KATANA 1994 (R) USA (E03)

BATTERY (MODEL K/L/M/N/P/R/S/T) GSX600F KATANA 1994 (R) USA (E03)

BATTERY (MODEL K/L/M/N/P/R/S/T) GSX600F KATANA 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361004A20
ref: 1

BATTERY(YB10L-B2,12V11.6AH)

€ 78.50

2-1

3368031003
ref: 2-1
33680-16A10

HOSE,BATTERY EXHAUST

€ 4.50

2-2

3368016A10
ref: 2-2

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

3-1

0940406606
ref: 3-1
09404-06432

CLAMP(L:35)

€ 2.00

3-2

0940406206
ref: 3-2
09404-06432

CLAMP(L:45)

€ 2.50

4

0946200043
ref: 4

BAND

€ 4.50

5-1

3365229100
ref: 5-1
33651-37000

PROTECTOR,20X9

€ 5.00

5-2

3365137000
ref: 5-2

PROTECTOR(170X95X3.0)

€ 5.00

5-2

3365137000
ref: 5-2

PROTECTOR(170X95X3.0)

€ 5.00

6

3365220C00
ref: 6

PROTECTOR(50X50X5)

€ 2.50

7

3365137000
ref: 7

PROTECTOR(170X95X3.0)

€ 5.00

7

3365137000
ref: 7

PROTECTOR(170X95X3.0)

€ 5.00

8

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

8

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

9

3386019C00
ref: 9
33860-44B01

WIRE,BATTERY MINUS LEAD

€ 17.50

10

3369019C10
ref: 10

PLATE,BATTERY CAUTION

€ 3.00
