SEAT (MODEL J/K/L/M/N/P)

GSX600F KATANA 1994 (R) USA (E03)

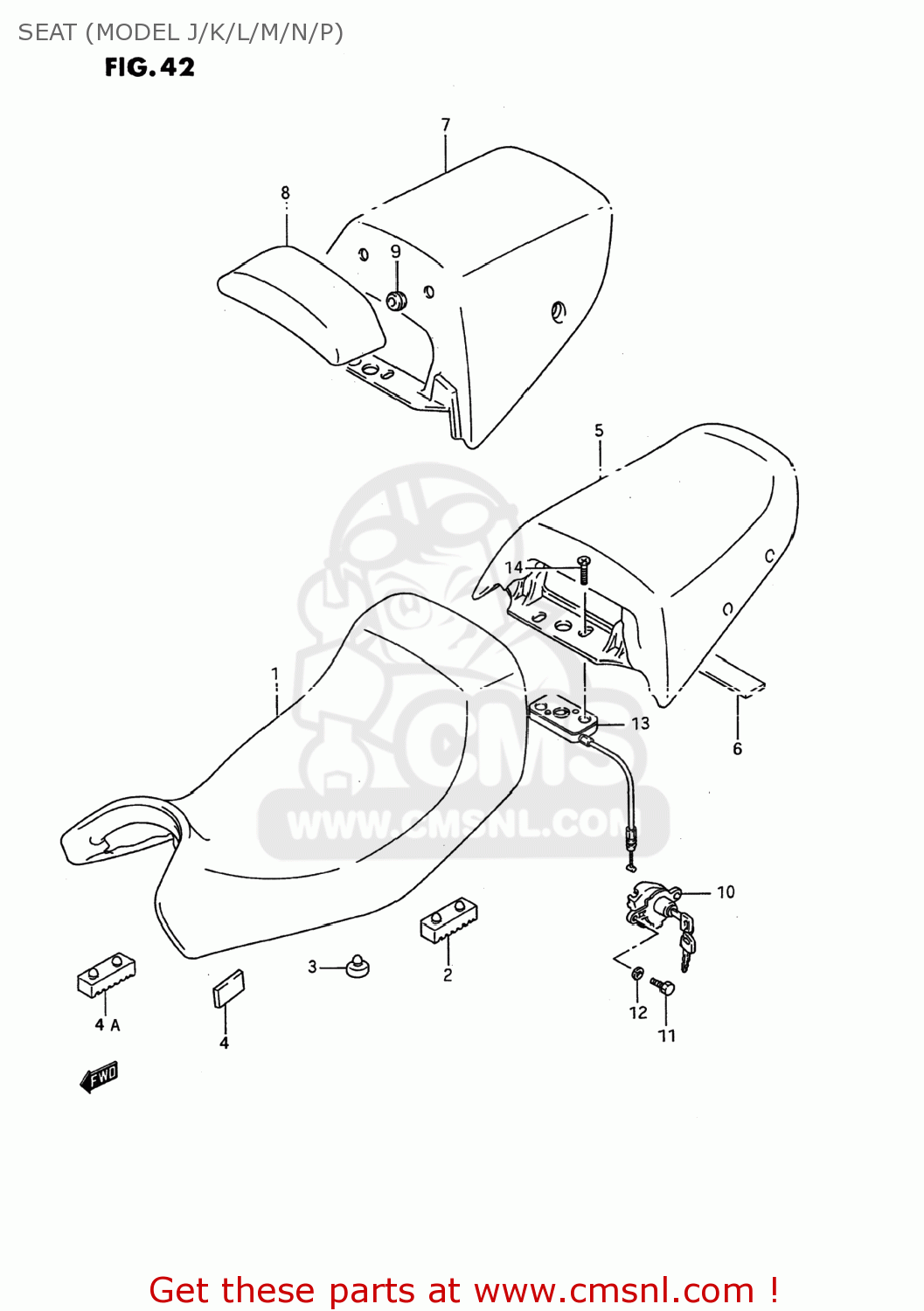

Seat (model j/k/l/m/n/p) diagram GSX600F KATANA 1994 (R) USA (E03)

SEAT (MODEL J/K/L/M/N/P) GSX600F KATANA 1994 (R) USA (E03)
SEAT (MODEL J/K/L/M/N/P) GSX600F KATANA 1994 (R) USA (E03)
SEAT (MODEL J/K/L/M/N/P) GSX600F KATANA 1994 (R) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4510019C004VP
ref: 1-1
SEAT SET
€ 281.50
1-1
4510019C004VP
ref: 1-1
SEAT SET
€ 281.50
1-2
4510019C005FM
ref: 1-2
45100-19C00-58R
SEAT SET
€ 359.00
1-2
4510019C005FM
ref: 1-2
45100-19C00-58R
SEAT SET
€ 359.00
1-3
4510019C0058R
ref: 1-3
SEAT SET
€ 359.00
1-3
4510019C0058R
ref: 1-3
SEAT SET
€ 359.00
2
4514943500
ref: 2
CUSHION,SEAT
4514943500
€ 3.00
3
0932110012
ref: 3
CUSHION
0932110012
€ 3.00
4
4525520920
ref: 4
CUSHION,FRONT
€ 1.50
4A
4514931300
ref: 4A
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
5-1
4530019C004VP
ref: 5-1
45300-19C00-6YD
SEAT SET,PILLION
€ 188.00
5-1
4530019C004VP
ref: 5-1
45300-19C00-6YD
SEAT SET,PILLION
€ 188.00
5-2
4530019C005FM
ref: 5-2
45300-19C00-58R
SEAT SET,PILLION
4530019C005FM
€ 99.50
5-3
4530019C0058R
ref: 5-3
SEAT SET,PILLION
4530019C0058R
€ 99.50
5-3
4530019C0058R
ref: 5-3
SEAT SET,PILLION
4530019C0058R
€ 99.50
5-3
4530019C0058R
ref: 5-3
SEAT SET,PILLION
4530019C0058R
€ 99.50
6
4514719C00
ref: 6
CUSHION,PILLION SEAT,REAR
€ 3.50
7-1
4550019C0022R
ref: 7-1
SEAT TAIL COVER WITH PILLION
€ 462.00
7-2
4550019C0006X
ref: 7-2
SEAT TAIL COVER WITH PILLION
€ 462.00
7-3
4550019C0007P
ref: 7-3
SEAT TAIL COVER WITH PILLION
€ 462.00
7-4
4550019C0038K
ref: 7-4
SEAT TAIL COVER WITH PILLION
€ 462.00
7-5
4550019C0028V
ref: 7-5
SEAT TAIL COVER WITH PILLION
€ 310.50
7-6
4550019C0024V
ref: 7-6
COVER,SEAT TAIL (BLUE)
€ 462.00
7-7
4550019C0033J
ref: 7-7
SEAT TAIL COVER WITH PILLION
€ 310.50
7-8
4550019C0019A
ref: 7-8
TAIL COVER SET
€ 155.50
7-9
4550019C001MW
ref: 7-9
SEAT TAIL COVER WITH PILLION
€ 261.00
8-1
4535019C004VP
ref: 8-1
PAD ASSEMBLY,TAIL COVER (O
4535019C004VP
€ 91.50
8-2
4535019C005FM
ref: 8-2
PAD ASSEMBLY,TAIL COVER (O
4535019C005FM
€ 91.50
8-3
4535019C0058R
ref: 8-3
PAD ASSEMBLY,TAIL COVER
€ 91.50
9
0932009026
ref: 9
09320-09045
CUSHION
0932009026
€ 4.00
10
4570019840
ref: 10
45700-19841
LOCK SET,SEAT
4570019840
€ 59.50
11-1
0110706165
ref: 11-1
01500-0616A
BOLT 6X16
0110706165
€ 2.00
11-2
0113706165
ref: 11-2
01570-0616A
BOLT
€ 2.50
11-3
0157006167
ref: 11-3
BOLT
0157006167
€ 2.50
12
0832121064
ref: 12
08321-0106A
WASHER,LOCK
0832121064
€ 2.00
13
4522019C00
ref: 13
BRACKET,SEAT SUPPORT RR
4522019C00
€ 22.50
14-1
0212206305
ref: 14-1
02122-0630B
SCREW
€ 2.00
14-2
0212206308
ref: 14-2
02122-0630B
SCREW
€ 2.00
