CARBURETOR (MODEL L/M/N/P/R/S/T)

GSX600F KATANA 1994 (R) USA (E03)

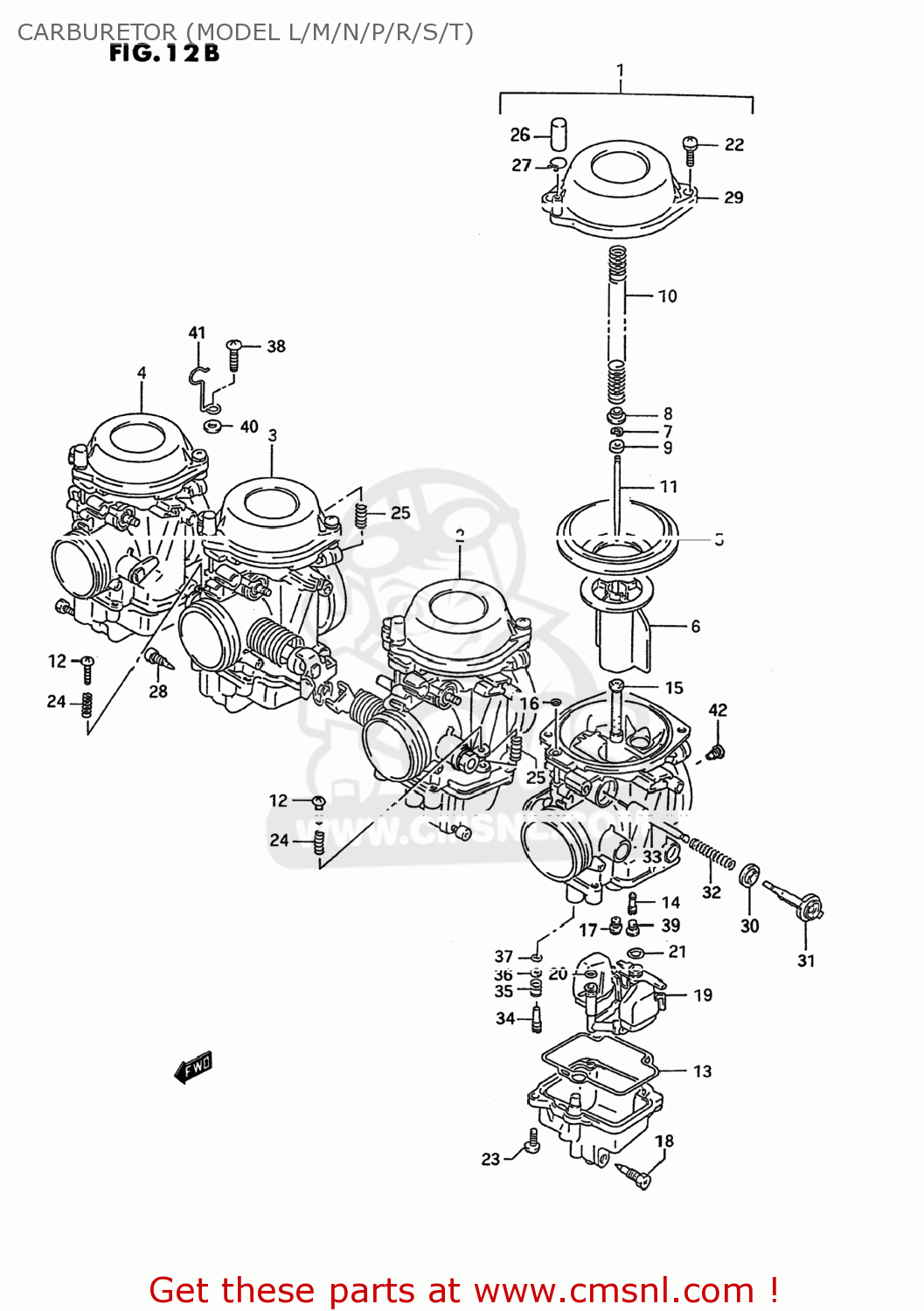

Carburetor (model l/m/n/p/r/s/t) diagram GSX600F KATANA 1994 (R) USA (E03)

CARBURETOR (MODEL L/M/N/P/R/S/T) GSX600F KATANA 1994 (R) USA (E03)
CARBURETOR (MODEL L/M/N/P/R/S/T) GSX600F KATANA 1994 (R) USA (E03)
CARBURETOR (MODEL L/M/N/P/R/S/T) GSX600F KATANA 1994 (R) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1320144C01
ref: 1
CARBURETOR ASSY
€ 411.50
2
1320244C01
ref: 2
CARBURETOR.ML
€ 407.50
3
1320344C01
ref: 3
CARBURETOR.MR
€ 411.50
4
1320444C01
ref: 4
CARBURETOR.RH
€ 407.50
5-1
1350717C00
ref: 5-1
13507-17C01
DIAPHRAGM
€ 24.50
5-2
1350717C01
ref: 5-2
DIAPHRAGM
1350717C01
€ 24.50
6
1350101D00
ref: 6
VALVE,PISTON
1350101D00
€ 69.00
7
1339440D20
ref: 7
E RING
1339440D20
€ 4.50
8
1338242A00
ref: 8
RING
1338242A00
€ 3.50
9
1338747010
ref: 9
RING
1338747010
€ 7.50
10
1341742A00
ref: 10
SPRING
1341742A00
€ 6.00
11
1338344C20
ref: 11
NEEDLE,JET
1338344C20
€ 13.00
12
1326744B00
ref: 12
SCREW
1326744B00
€ 3.50
13
1325844B00
ref: 13
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
14
0949232006
ref: 14
JET,PILOT(32.5)
0949232006
€ 8.50
15
0949400763
ref: 15
JET,NEEDLE(P-3)
0949400763
€ 23.00
16
1350917C00
ref: 16
O RING
1350917C00
€ 4.50
17
0949122016
ref: 17
JET,MAIN(110)
0949122016
€ 7.00
18
1324724500
ref: 18
PLUG,DRAIN
1324724500
€ 12.00
19
1325044C00
ref: 19
13250-13D00
FLOAT/NEEDLE VALVE ASSEMBLY
€ 124.50
20
1337446710
ref: 20
O RING
1337446710
€ 4.50
21
1337444080
ref: 21
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
22-1
1360234390
ref: 22-1
02112-7516A
SCREW
1360234390
€ 2.50
22-1
1360234390
ref: 22-1
02112-7516A
SCREW
1360234390
€ 2.50
22-2
0211275163
ref: 22-2
02112-7516A
SCREW
0211275163
€ 2.50
22-2
0211275163
ref: 22-2
02112-7516A
SCREW
0211275163
€ 2.50
23-1
1360205128
ref: 23-1
02112-05127
SCREW
€ 2.50
23-2
0211205127
ref: 23-2
SCREW
0211205127
€ 2.50
24
1327144B00
ref: 24
SPRING
1327144B00
€ 4.00
25
1326817C10
ref: 25
SPRING
1326817C10
€ 7.00
26
1350817C00
ref: 26
CAP
1350817C00
€ 4.50
27
1367133600
ref: 27
13671-05A40
CLIP
1367133600
€ 4.00
28
1324713A00
ref: 28
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
29
1350201D00
ref: 29
COVER,DIAPHRAGM
1350201D00
€ 36.00
30
1341817C00
ref: 30
CAP,STARTER
1341817C00
€ 5.00
31
1341817C10
ref: 31
HOLDER,GUIDE
1341817C10
€ 14.00
32
1341709110
ref: 32
SPRING
1341709110
€ 6.00
33
1341101D00
ref: 33
PLUNGER ASSY
1341101D00
€ 28.50
34
1327947070
ref: 34
SCREW,PILOT
1327947070
€ 11.50
35
1326847070
ref: 35
SPRING
1326847070
€ 5.00
36
1329129900
ref: 36
WASHER
1329129900
€ 2.00
37
1329529900
ref: 37
O RING,PILOT AIR SCREW
1329529900
€ 4.00
38
0211205164
ref: 38
SCREW
0211205164
€ 2.00
39
1335734C00
ref: 39
PLUG
1335734C00
€ 4.50
40
0832201053
ref: 40
08322-0105A
WASHER
0832201053
€ 2.50
41
1367120C20
ref: 41
CLIP
1367120C20
€ 5.50
42
0949326004
ref: 42
JET,AIR(1.3)
0949326004
€ 14.50
