FRAME (MODEL J/K/L/M/N/P)

GSX600F KATANA 1994 (R) USA (E03)

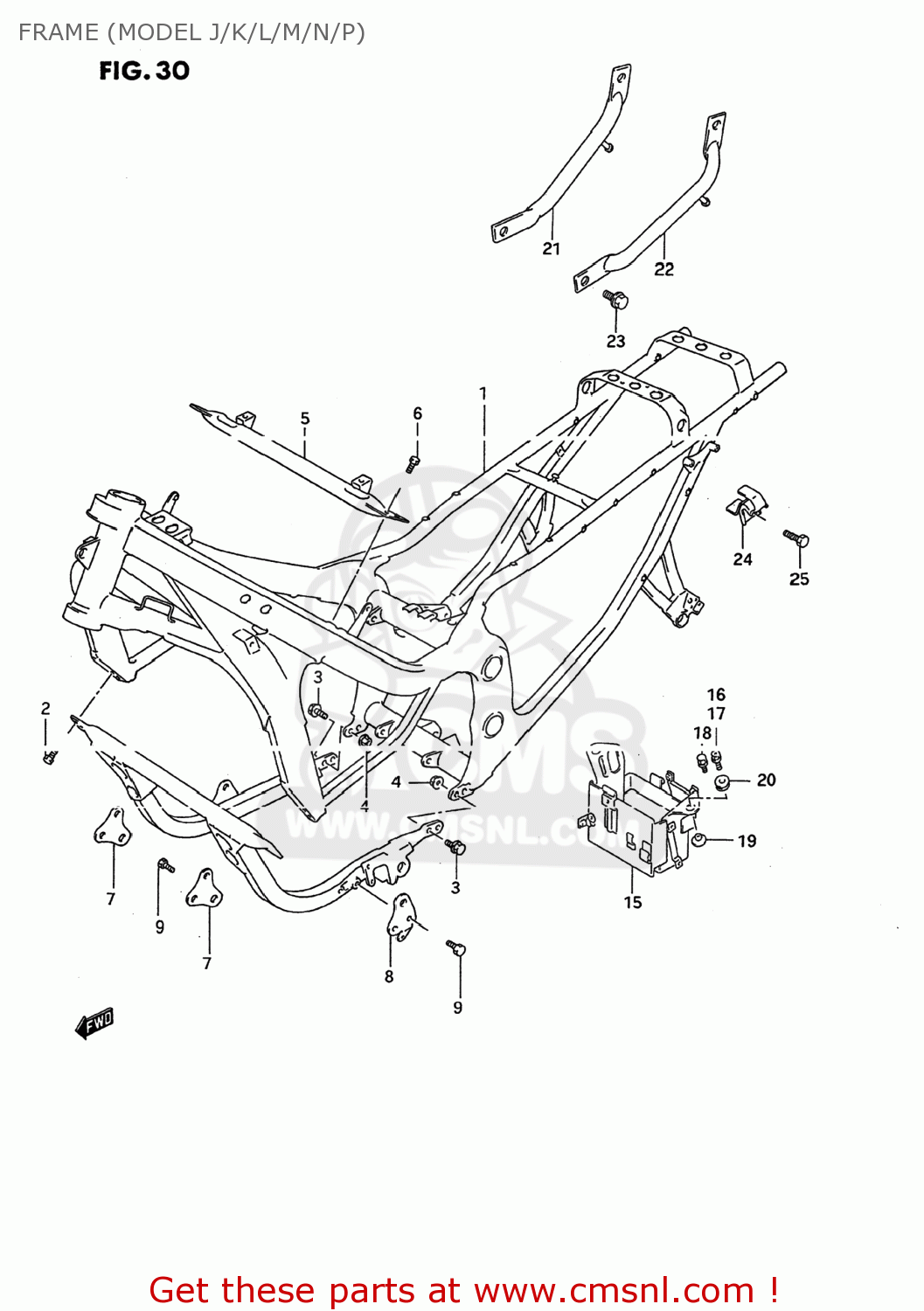

Frame (model j/k/l/m/n/p) diagram GSX600F KATANA 1994 (R) USA (E03)

FRAME (MODEL J/K/L/M/N/P) GSX600F KATANA 1994 (R) USA (E03)
FRAME (MODEL J/K/L/M/N/P) GSX600F KATANA 1994 (R) USA (E03)
FRAME (MODEL J/K/L/M/N/P) GSX600F KATANA 1994 (R) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4110019880019
ref: 1-1
41101-19830-019
FRAME
€ 839.50
1-2
4110019881291
ref: 1-2
41101-19830-291
FRAME
€ 839.50
2-1
4114019C00019
ref: 2-1
TUBE COMP,FRAME DOWN
€ 220.00
2-2
4114019C00291
ref: 2-2
TUBE,FRAME
€ 192.00
3-1
0110708205
ref: 3-1
01500-0820A
BOLT
€ 2.00
3-2
0113708205
ref: 3-2
01570-0820A
BOLT
€ 2.00
3-3
0150008257
ref: 3-3
BOLT
0150008257
€ 2.50
4-1
0832121084
ref: 4-1
08321-0108A
WASHER,LOCK,8.
0832121084
€ 2.50
4-2
0832101087
ref: 4-2
WASHER,LOCK
0832101087
€ 2.00
5
0151708254
ref: 5
01550-0825A
BOLT
0151708254
€ 2.50
6
0151708304
ref: 6
01550-0830A
BOLT
0151708304
€ 3.00
7
0831931085
ref: 7
08319-3108A
NUT
€ 2.50
8-1
4175019C00
ref: 8-1
41750-34C00
TUBE,FRAME
€ 44.00
8-2
4175034C00
ref: 8-2
TUBE,FRAME BRIDGE NO.2
4175034C00
€ 44.00
9-1
0110708165
ref: 9-1
01500-0816B
BOLT
€ 2.00
9-2
0113708165
ref: 9-2
01570-0816A
BOLT
€ 2.00
9-3
0157008167
ref: 9-3
BOLT
0157008167
€ 2.50
9-4
0910308266
ref: 9-4
BOLT(8X20)
0910308266
€ 2.50
10
0832121084
ref: 10
08321-0108A
WASHER,LOCK,8.
0832121084
€ 2.50
11-1
4191119C00019
ref: 11-1
PLATE,ENG MTG NO.1
€ 5.00
11-2
4191119C00291
ref: 11-2
41911-19C00-019
PLATE,ENGINE MOUNTING
€ 5.00
12-1
4194019C00019
ref: 12-1
41940-20C00-019
PLATE,ENGINE MOUNTING
€ 10.00
12-2
4194019C00291
ref: 12-2
41940-20C00-019
PLATE,ENGINE MOUNTING
€ 10.00
13-1
0110708165
ref: 13-1
01500-0816B
BOLT
€ 2.00
13-2
0113708165
ref: 13-2
01570-0816A
BOLT
€ 2.00
13-3
0157008167
ref: 13-3
BOLT
0157008167
€ 2.50
14
0832121084
ref: 14
08321-0108A
WASHER,LOCK,8.
0832121084
€ 2.50
15-1
4154019C00
ref: 15-1
41540-19C02
HOLDER,BATTERY
€ 38.00
15-2
4154019C02
ref: 15-2
HOLDER,BATTERY
€ 38.00
16
0912806010
ref: 16
SCREW(6X30)
0912806010
€ 1.50
17
0832101067
ref: 17
WASHER,LOCK
0832101067
€ 2.50
18
0913706014
ref: 18
01570-0630A
BOLT L:30
€ 2.00
19
4157019C00
ref: 19
09169-06065
PLATE,BATTERY HOLDER
€ 3.50
20
0932008021
ref: 20
CUSHION
0932008021
€ 4.00
21-1
4397019C00
ref: 21-1
43970-19C02
GRIP,REAR,RIGHT
4397019C00
€ 21.00
21-2
4397019C01
ref: 21-2
43970-19C02
GRIP,REAR,RIGHT
€ 21.00
22-1
4398019C00
ref: 22-1
43980-19C02
GRIP,REAR
4398019C00
€ 14.00
22-2
4398019C01
ref: 22-2
43980-19C02
GRIP,REAR
€ 14.00
23
0151708165
ref: 23
01550-0816A
BOLT, LOWER
0151708165
€ 3.00
24
9572020C00
ref: 24
HOLDER,HELMET
€ 7.50
25
0157006163
ref: 25
01570-0616A
BOLT
0157006163
€ 2.50
