CARBURETOR
GSX600F KATANA 2004 (K4) USA (E03)

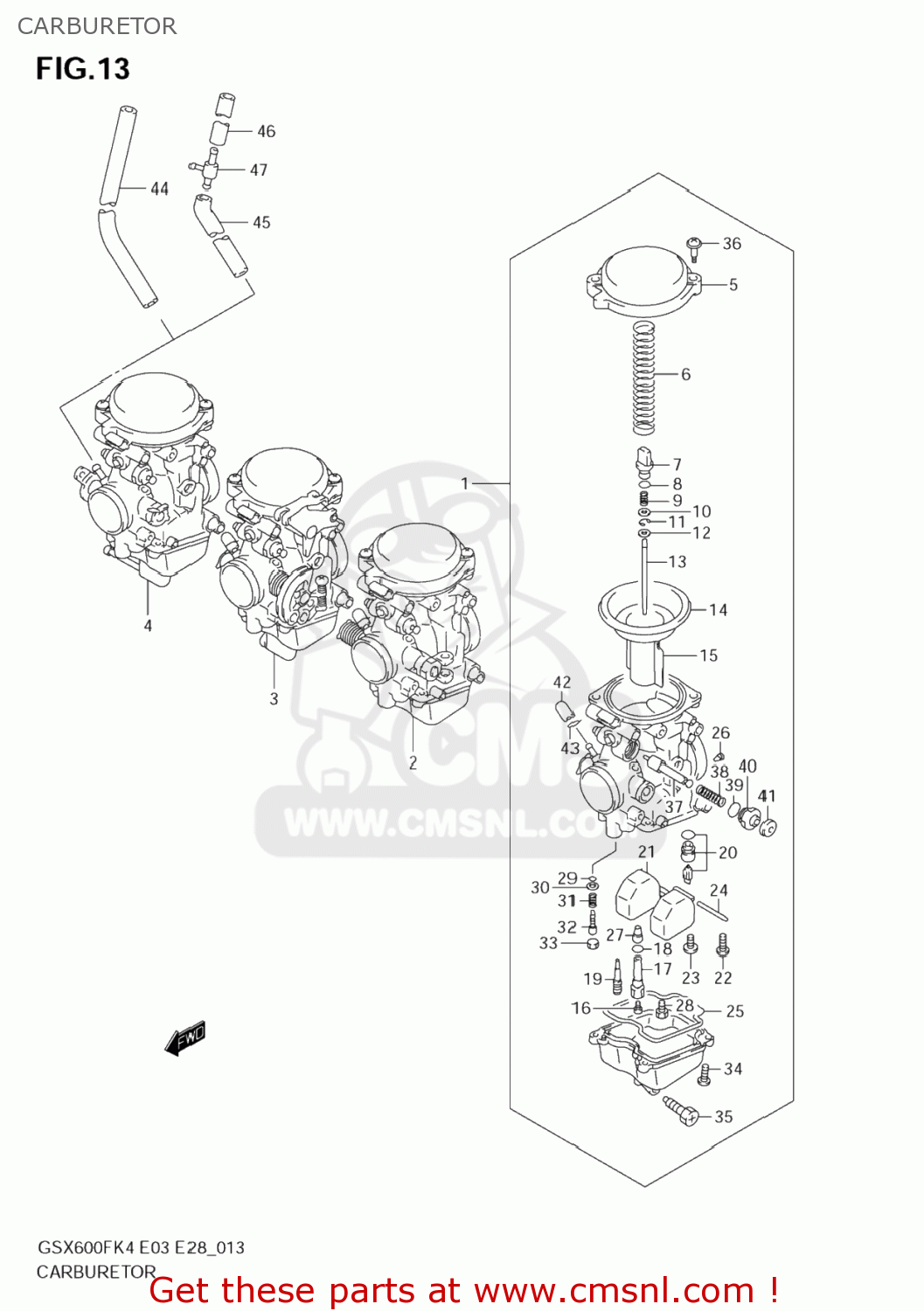

Carburetor diagram GSX600F KATANA 2004 (K4) USA (E03)
CARBURETOR GSX600F KATANA 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320119E31
ref: 1-1
CARBURETOR ASSY,L
€ 250.50
1-2
1320119E41
ref: 1-2
CARBURETOR ASSY,L
€ 250.50
2-1
1320219E31
ref: 2-1
CARBURETOR ASSY,ML
€ 250.50
2-2
1320219E41
ref: 2-2
CARBURETOR ASSY,ML
€ 250.50
3-1
1320319E31
ref: 3-1
CARBURETOR ASSY,MR
€ 289.50
3-2
1320319E41
ref: 3-2
CARBURETOR ASSY,MR
€ 250.50
4-1
1320419E31
ref: 4-1
CARBURETOR ASSY,R
€ 250.50
4-2
1320419E41
ref: 4-2
CARBURETOR ASSY,R
€ 250.50
5
1350219E00
ref: 5
COVER,DIAPHRAGM
€ 47.00
6
1357319E00
ref: 6
SPRING
€ 7.50
7
1341833E00
ref: 7
HOLDER
€ 4.50
8
0928005004
ref: 8
O RING(D:1.9,ID:4.8)
€ 2.00
9
1348104F00
ref: 9
SPRING
€ 2.50
10
1338219E00
ref: 10
WASHER
€ 3.00
11
1339417E60
ref: 11
E RING,MULTIPLE JET NOZZLE
€ 1.50
12
1338744030
ref: 12
RING
€ 5.00
13
1338319E30
ref: 13
NEEDLE,JET
€ 0.00
14
1350719E00
ref: 14
DIAPHRAGM
€ 33.50
15
1350119E30
ref: 15
VALVE,PISTON
€ 87.00
16-1
0949123012
ref: 16-1
JET,MAIN(115)
€ 11.50
16-2
0949122014
ref: 16-2
JET,MAIN(112.5)
€ 16.50
17
1338519E00
ref: 17
HOLDER,JET
€ 31.50
18
1324643010
ref: 18
O RING
€ 4.00
19
0949400921
ref: 19
JET,NEEDLE(P-0M)
€ 44.50
20
1337007F00
ref: 20
VALVE ASSY,NEEDLE(ID:2.3)
€ 72.00
21
1325004F00
ref: 21
FLOAT ASSY
€ 27.50
22
0211204083
ref: 22
02112-0408A
SCREW
€ 2.00
23
1360205A10
ref: 23
SCREW
€ 4.00
24
1325401010
ref: 24
PIN,FLOAT
€ 3.00
25
1325804F00
ref: 25
GASKET (NAS)
€ 9.00
26-1
0949332007
ref: 26-1
JET,AIR(160)
€ 11.50
26-2
0949230013
ref: 26-2
JET,POWER(150)
€ 13.00
27
0949212008
ref: 27
JET,PILOT(12.5)
€ 14.00
28
0949150006
ref: 28
JET,STARTER(50)
€ 15.00
29
1329529900
ref: 29
O RING,PILOT AIR SCREW
€ 4.00
30
1329129900
ref: 30
WASHER
€ 2.00
31
1326848700
ref: 31
SPRING,THROTTLE SCREW
€ 3.50
32-1
1327933E00
ref: 32-1
ADJUSTER
€ 9.50
32-2
1327933E00
ref: 32-2
ADJUSTER
€ 9.50
33
1328105A00
ref: 33
PLUG
€ 3.50
34
0211204107
ref: 34
SCREW
€ 2.00
35
1324713A00
ref: 35
13247-02340
SCREW,DRAIN
€ 5.50
36
1324733E00
ref: 36
SCREW
€ 3.00
37
1341105300
ref: 37
PLUNGER
€ 23.50
38
1341726D00
ref: 38
SPRING
€ 5.50
39
1327847090
ref: 39
O RING
€ 2.00
40
1341844080
ref: 40
GUIDE SCREW,PLUNGER
€ 8.00
41
1368231210
ref: 41
CAP,STARTER VALVE
€ 5.00
42
1327484000
ref: 42
CAP
€ 5.50
43
0940106101
ref: 43
CLIP
€ 2.50
44
0935550105600
ref: 44
44421-13ER0
HOSE(5X10X600)
€ 7.50
44
0935550105600
ref: 44
44421-13ER0
HOSE(5X10X600)
€ 7.50
45
0935250901600
ref: 45
HOSE(5X9X600)
€ 6.50
46
0935250903600
ref: 46
HOSE(5X9X600)
€ 28.50
47
1368548B00
ref: 47
NIPPLE
€ 9.00
