CYLINDER
GSX600F KATANA 2004 (K4) USA (E03)

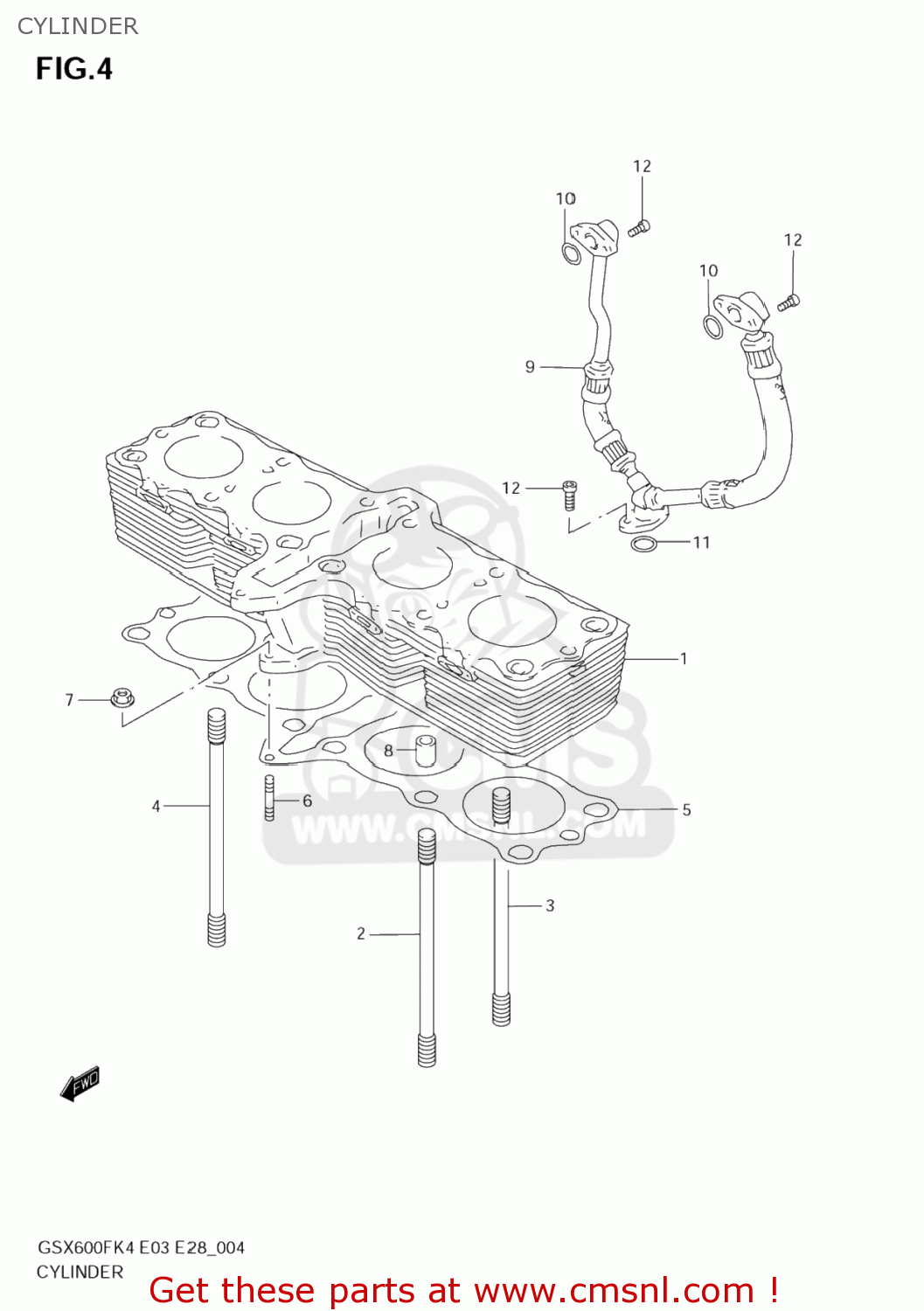

Cylinder diagram GSX600F KATANA 2004 (K4) USA (E03)
CYLINDER GSX600F KATANA 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121026E000F0
ref: 1-1
CYLINDER
€ 791.00
1-2
1121026E100F0
ref: 1-2
CYLINDER
€ 777.50
1-2
1121026E100F0
ref: 1-2
CYLINDER
€ 777.50
2
0910810144
ref: 2
BOLT,STUD
€ 11.00
3
0910810073
ref: 3
BOLT,STUD
€ 9.50
4
0910810144
ref: 4
BOLT,STUD
€ 11.00
5
1124127A04
ref: 5
GASKET,CYLINDER (NAS)
€ 20.00
6
0142106203
ref: 6
01421-0620A
STUD,M6X1X32
€ 2.50
7
0831610063
ref: 7
08316-1006B
NUT
€ 2.50
8
0920613017
ref: 8
PIN(13X10.4X20)
€ 9.00
9
1132827A04
ref: 9
HOSE,OIL HEAD COOLER
€ 241.00
10
0928014011
ref: 10
O RING(D:2.5,ID:13.8)
€ 3.50
11
0928015007
ref: 11
O RING(D:2.4,ID:15.8)
€ 2.00
12
0713006163
ref: 12
07130-0616B
BOLT,OIL FILLE
€ 3.00
