TURNSIGNAL LAMP (MODEL K6)

GSX600F KATANA 2004 (K4) USA (E03)

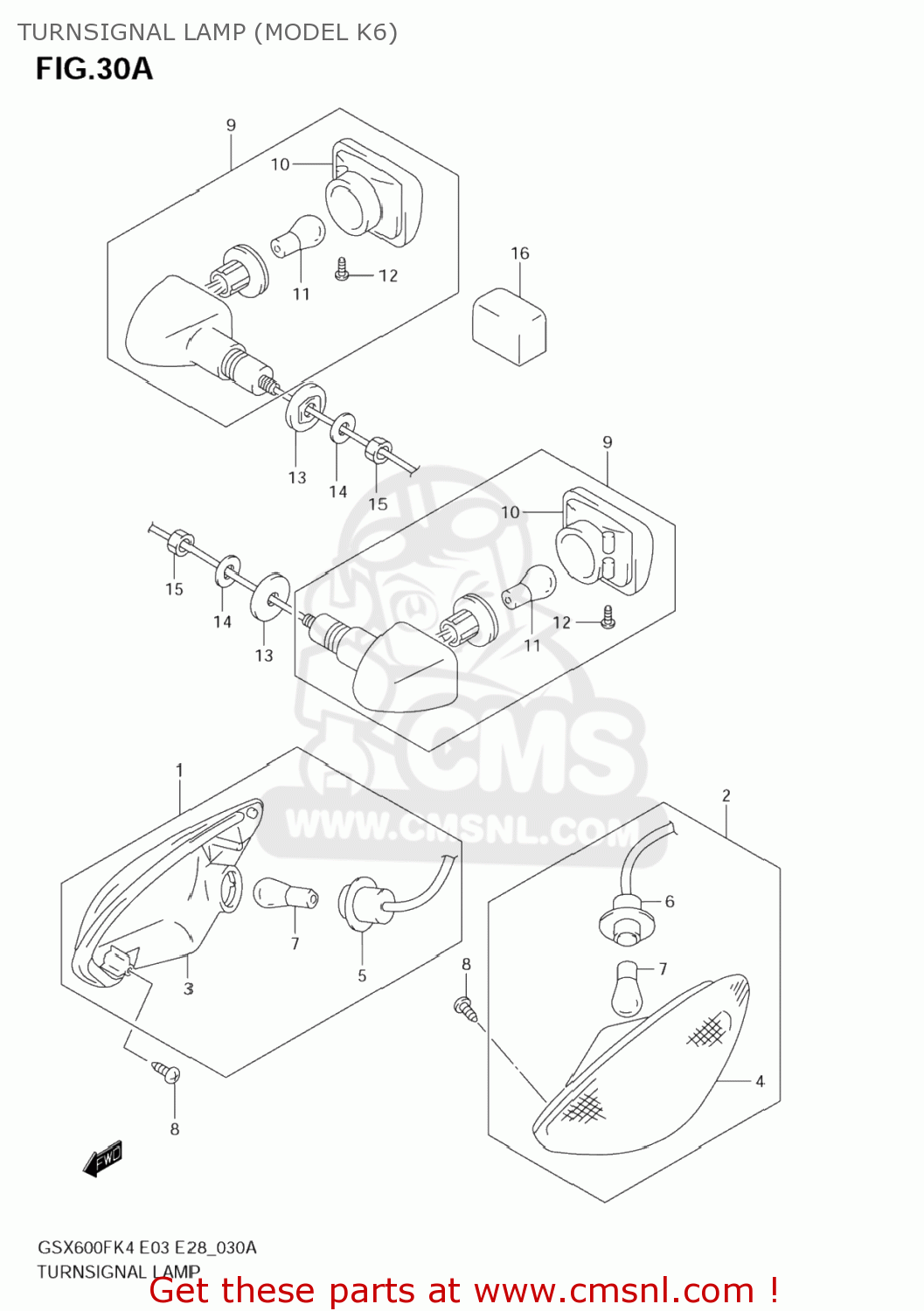

Turnsignal lamp (model k6) diagram GSX600F KATANA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

3560108F10
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 65.00

3560208F10
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 65.00

3561008F10
ref: 3

LAMP UNIT,R

€ 47.50

3563008F10
ref: 4

LAMP UNIT,L

€ 47.50

3561808F10
ref: 5

SOCKET & CORD,R

€ 26.00

3563808F10
ref: 6

SOCKET & CORD,L

€ 186.00

0947112186
ref: 7

BULB(12V21W,AMBER)

€ 2.50

0354105163
ref: 8
03541-0516A

SCREW

€ 1.50

9-1

3560324F30
ref: 9-1

LAMP ASSY,RR TURNSIGNAL,R

€ 110.00

9-2

3560424F30
ref: 9-2

LAMP ASSY,RR TURNSIGNAL,L

€ 75.50

3561024F30
ref: 10

LAMP UNIT

€ 48.00

0947112186
ref: 11

BULB(12V21W,AMBER)

€ 2.50

0324204123
ref: 12
03242-0412B

SCREW

€ 2.00

3569517C00
ref: 13

SPACER,RR TURNSIGNAL

€ 3.00

0916010501
ref: 14

WASHER(10.5X30X2.3)

€ 2.50

0831000103
ref: 15
08310-0010A

NUT

€ 2.00

3861003F00
ref: 16

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50

TURNSIGNAL LAMP (MODEL K6)

all assemblies
