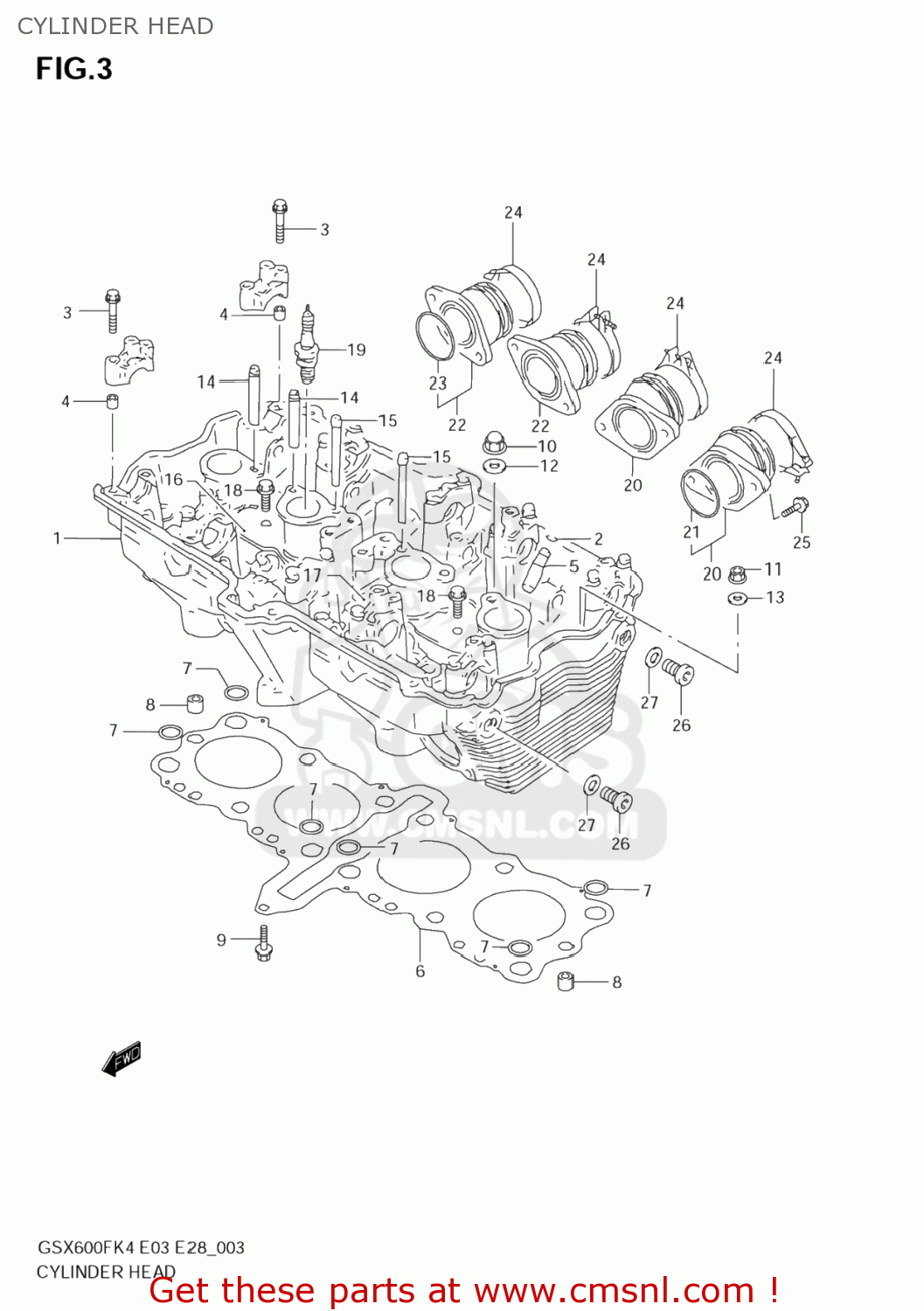

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110026E00
ref: 1-1

HEAD ASSEMBLY,CYLINDER

€ 1,508.50

1-2

1110026E10
ref: 1-2

HEAD ASSY,CYLINDER

€ 1,508.50

1-2

1110026E10
ref: 1-2

HEAD ASSY,CYLINDER

€ 1,508.50

2

0938110004
ref: 2

RING,SNAP

€ 1.50

3

0910306026
ref: 3

BOLT(6X39)

€ 2.00

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

1111606B70
ref: 5

GUIDE,VALVE

€ 43.00

6

1114119C03
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 63.00

7

0928012013
ref: 7

O RING(D:2.6,ID:12.1)

€ 7.50

8

0421111169
ref: 8

PIN

€ 2.00

9

0155006303
ref: 9
01550-0630A

BOLT

€ 2.50

10

0915910054
ref: 10

NUT

€ 7.50

11

0831610103
ref: 11
08316-1010B

NUT

€ 2.00

12

0916810031
ref: 12

GASKET(10.2X20X2).3 (NAS)

€ 2.00

13

0916010060
ref: 13
09160-10039

WASHER (10.5X22X2.3)

€ 2.50

14

1113127A00
ref: 14

PIPE,OIL NO.1

€ 6.00

15

1113327A00
ref: 15

PIPE,OIL NO.3

€ 7.00

16

1113527A02
ref: 16

PLATE,OIL PIPE,R

€ 4.00

17

1113627A02
ref: 17

PLATE,OIL PIPE,L

€ 4.00

18

0155006123
ref: 18
01550-0612A

BOLT

€ 2.50

19-1

0948200410
ref: 19-1

PLUG,SPARK(CR9EK)

€ 10.50

19-2

0948200411
ref: 19-2
09482-00459

PLUG,SPARK(U27ETR)

€ 8.50

19-3

0948200412
ref: 19-3

PLUG,SPARK(CR8EK)

€ 11.00

19-4

0948200413
ref: 19-4

PLUG,SPARK(U24ETR)

€ 11.00

19-5

0948200462
ref: 19-5

PLUG,SPARK(CR10EK)

€ 10.50

19-6

0948200463
ref: 19-6

PLUG,SPARK(U31ETR)

€ 10.50

20

1310119E00
ref: 20

PIPE ASSY,INTAKE NO.1

€ 46.00

21

0928040010
ref: 21

O RING(D:2.4,ID:39.7)

€ 3.50

22

1310319E00
ref: 22

PIPE ASSY,INTAKE NO.3

€ 45.50

23

0928040010
ref: 23

O RING(D:2.4,ID:39.7)

€ 3.50

24

0940248208
ref: 24

CLAMP

€ 4.50

25

0712006163
ref: 25
07120-0616B

BOLT MAGNETO S

€ 2.50

26-1

0924814010
ref: 26-1

PLUG

€ 5.00

26-2

0924814012
ref: 26-2

PLUG,14X12

€ 5.00

27

0916814002
ref: 27
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

all assemblies
