UNDER COWLING (MODEL K6)

GSX600F KATANA 2006 (K6) USA (E03)

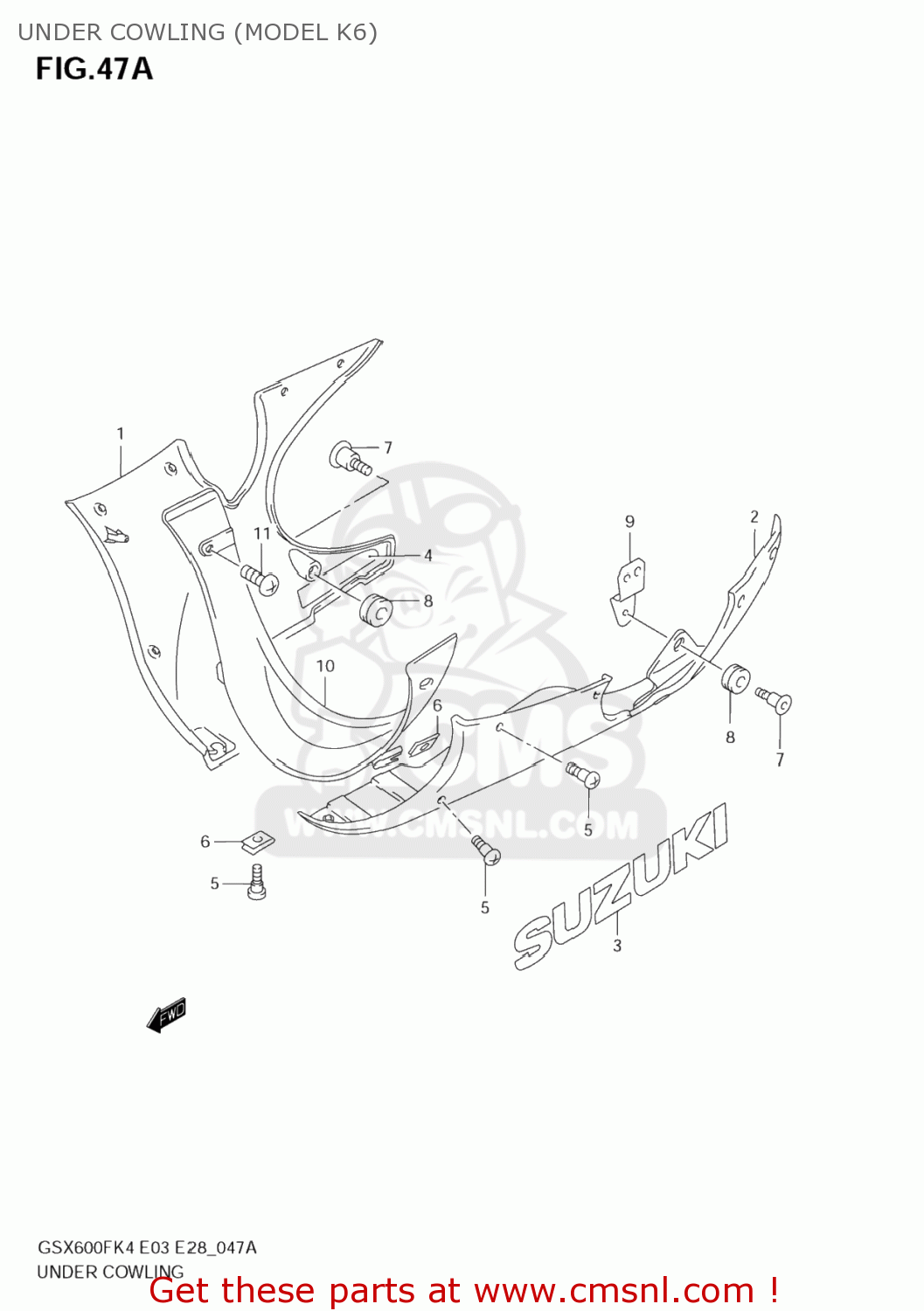

Under cowling (model k6) diagram GSX600F KATANA 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9440708F10019
ref: 1-1

COWLING ASSY,UNDER,R

€ 153.50

1-2

9440708F10YBD
ref: 1-2

COWLING ASSY,UNDER,R

€ 140.50

2-1

9448008F10019
ref: 2-1

COWLING,UNDER,L(BLACK)

€ 168.50

2-2

9448008F10YBD
ref: 2-2

COWLING,UNDER,L(WHITE)

€ 168.50

3-1

6818117D00YD8
ref: 3-1

EMBLEM,SUZUKI

€ 11.50

3-2

6818117D00019
ref: 3-2

EMBLEM,COWLING UNDER,L

€ 23.50

9447208F00
ref: 4

SHIELD,COWLING UNDER,R NO.1

€ 9.00

0913905054
ref: 5

SCREW(5X16)

€ 6.00

9448424F00
ref: 6

NUT,COWL

€ 4.00

0913906126
ref: 7

SCREW(6X20)

€ 4.00

0932009016
ref: 8

CUSHION

€ 2.50

9457008F00
ref: 9

BRACKET,UNDER COWL,L & FRAME

€ 7.00

9447508F00
ref: 10

COWLING,UNDER CTR

€ 54.00

0354105123
ref: 11
03541-0512A

SCREW

€ 2.00

UNDER COWLING (MODEL K6)
