TAIL LAMP
GSX600F KATANA 2006 (K6) USA (E03)

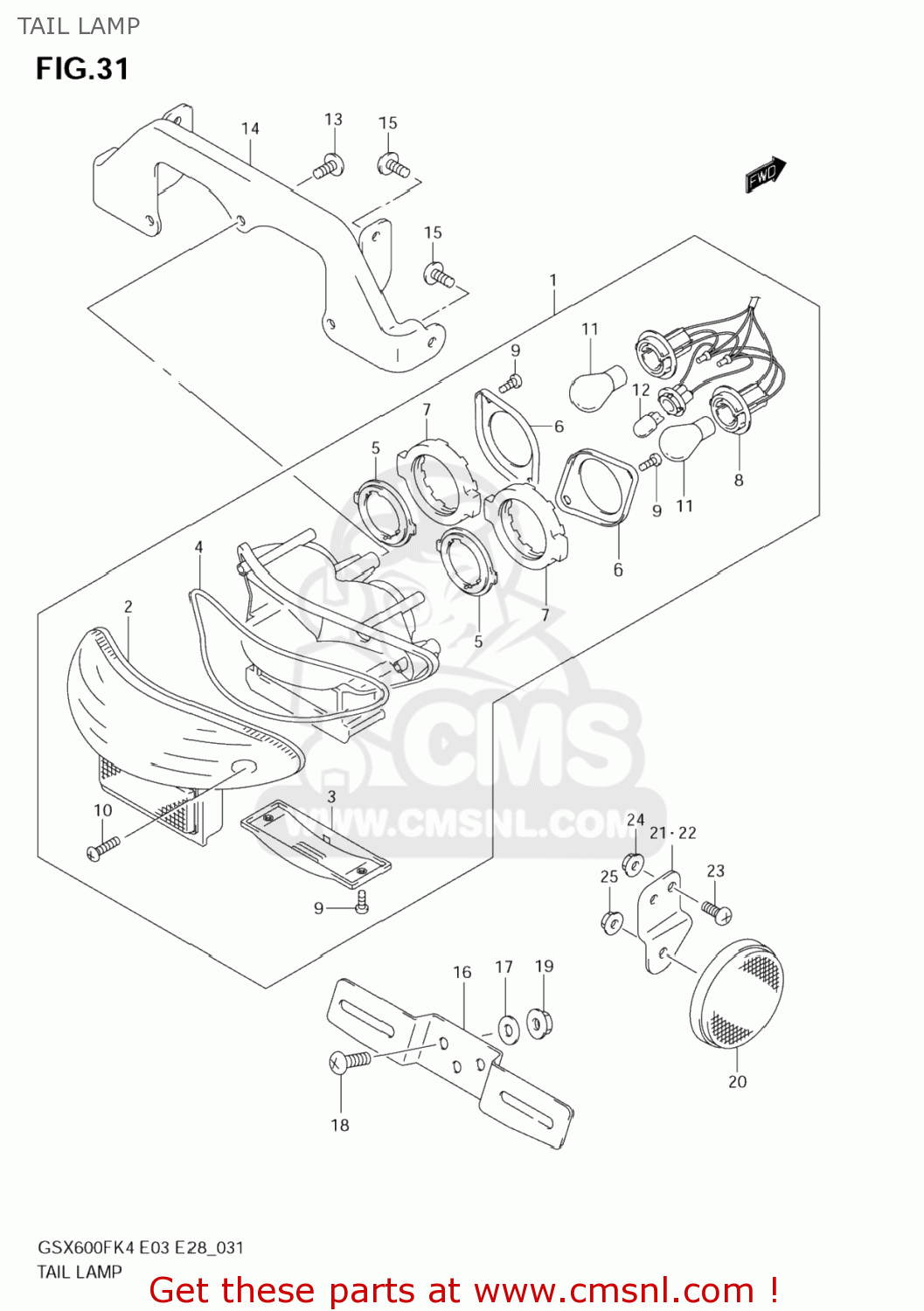

Tail lamp diagram GSX600F KATANA 2006 (K6) USA (E03)
TAIL LAMP GSX600F KATANA 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571024F30
ref: 1
LAMP ASSY,RR COMBINATION
€ 205.00
2
3571224F30
ref: 2
LENS
€ 20.00
3
3591224F00
ref: 3
LENS,LICENSE LAMP
€ 22.00
4
3571324F00
ref: 4
GASKET (NAS)
€ 10.50
5
3571648B21
ref: 5
PLATE NO.1
€ 25.00
6
3573648B21
ref: 6
PLATE NO.2
€ 16.50
7
3576548B21
ref: 7
CUSHION
€ 10.50
8
3571824F00
ref: 8
SOCKET & CORD
€ 103.50
9
0321104123
ref: 9
03211-0412A
SCREW
€ 1.50
10
0321104207
ref: 10
SCREW
€ 1.50
11
0947112083
ref: 11
09471-12128
BULB(12V21/5W)
€ 6.00
12
0947112216
ref: 12
BULB(12V5W)
€ 5.00
13
0354105163
ref: 13
03541-0516A
SCREW
€ 1.50
14
3572608F00
ref: 14
BRACKET,RR COMBINATION LAMP
€ 16.50
15
0354105163
ref: 15
03541-0516A
SCREW
€ 1.50
16
3592724F00
ref: 16
BRACKET,LICENSE PLATE
€ 0.00
17
0916006088
ref: 17
WASHER(6.5X20X1.6)
€ 2.00
18
0214206163
ref: 18
02142-0616A
SCREW
€ 2.50
19
0831610063
ref: 19
08316-1006B
NUT
€ 2.50
20
3597014A20
ref: 20
REFLECTOR ASSY,RR SIDE
€ 11.00
21
3597508F10
ref: 21
BRACKET,RR SIDE RR,R
€ 0.00
22
3597608F10
ref: 22
BRACKET,RR SIDE RR,L
€ 0.00
23
0211205123
ref: 23
02112-0512A
SCREW
€ 1.50
24
0831610053
ref: 24
08316-1005A
NUT
€ 2.50
25
0831610053
ref: 25
08316-1005A
NUT
€ 2.50
