GSX600F KATANA 2006 (K6) USA (E03)

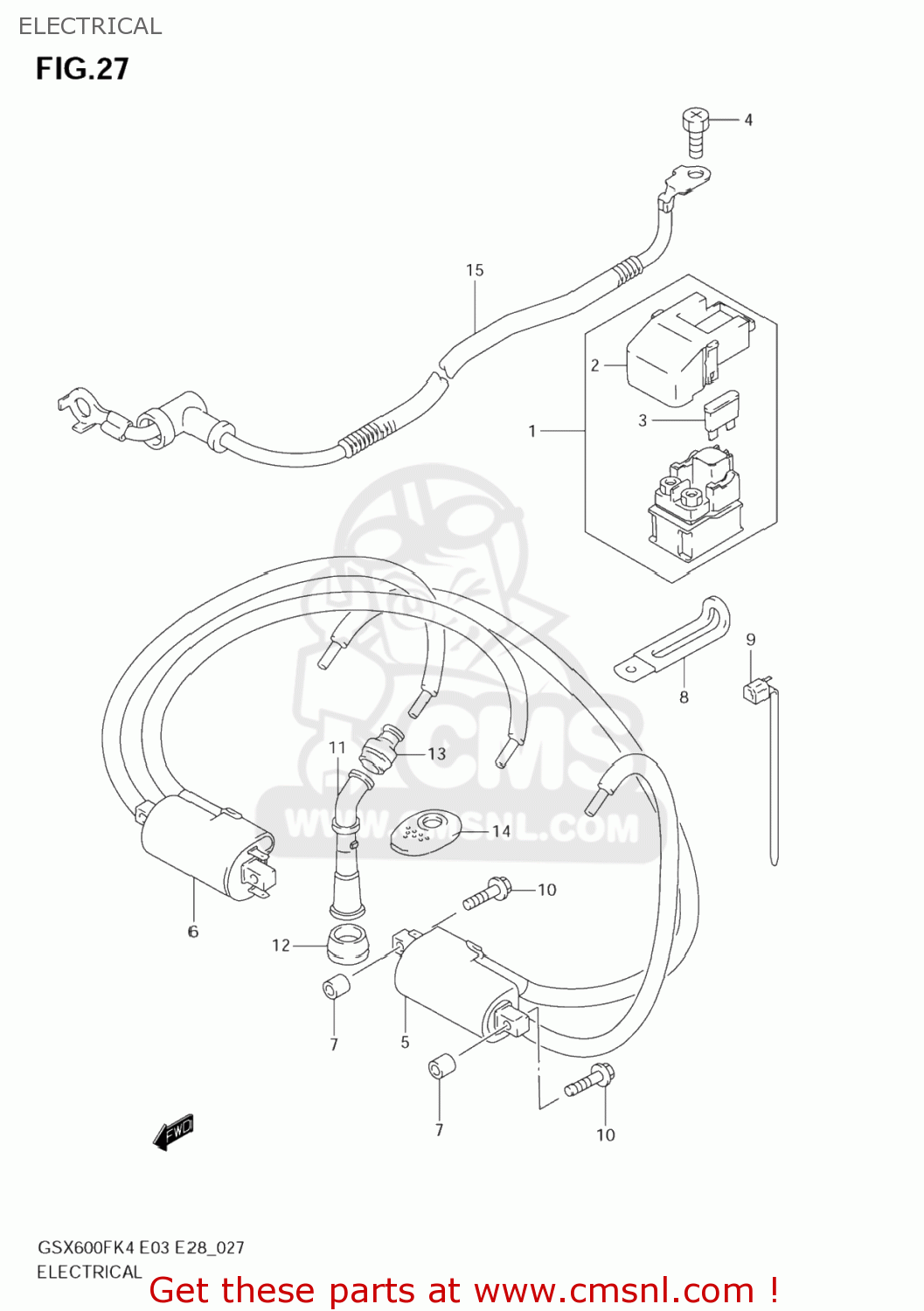

Electrical diagram GSX600F KATANA 2006 (K6) USA (E03)
ELECTRICAL GSX600F KATANA 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180021E20
ref: 1
RELAY ASSY,STARTING MOTOR
€ 69.00
2
3186147E00
ref: 2
COVER
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3341019C01
ref: 5
COIL ASSY,IGNITION
€ 147.00
6
3342019C01
ref: 6
COIL ASSY,IGNITION
€ 162.50
7
0918006174
ref: 7
SPACER(6.2X12X14)
€ 5.50
8
0940406433
ref: 8
CLAMP(L:80)
€ 3.00
9
0940718402
ref: 9
CLAMP(L:165)
€ 2.50
10
0155006453
ref: 10
01550-0645A
BOLT (6X45)
€ 2.50
11
3351048B10
ref: 11
CAP,SPARK PLUG
€ 29.50
12
3354123E01
ref: 12
SEAL,SPARK PLUG CAP
€ 7.00
13
3354238B00
ref: 13
SEAL,HIGH TENSION CORD
€ 4.50
14
3354348B00
ref: 14
COVER,SPARK PLUG CAP
€ 12.50
15
3381008F00
ref: 15
WIRE,BATTERY MINUS
€ 24.50
