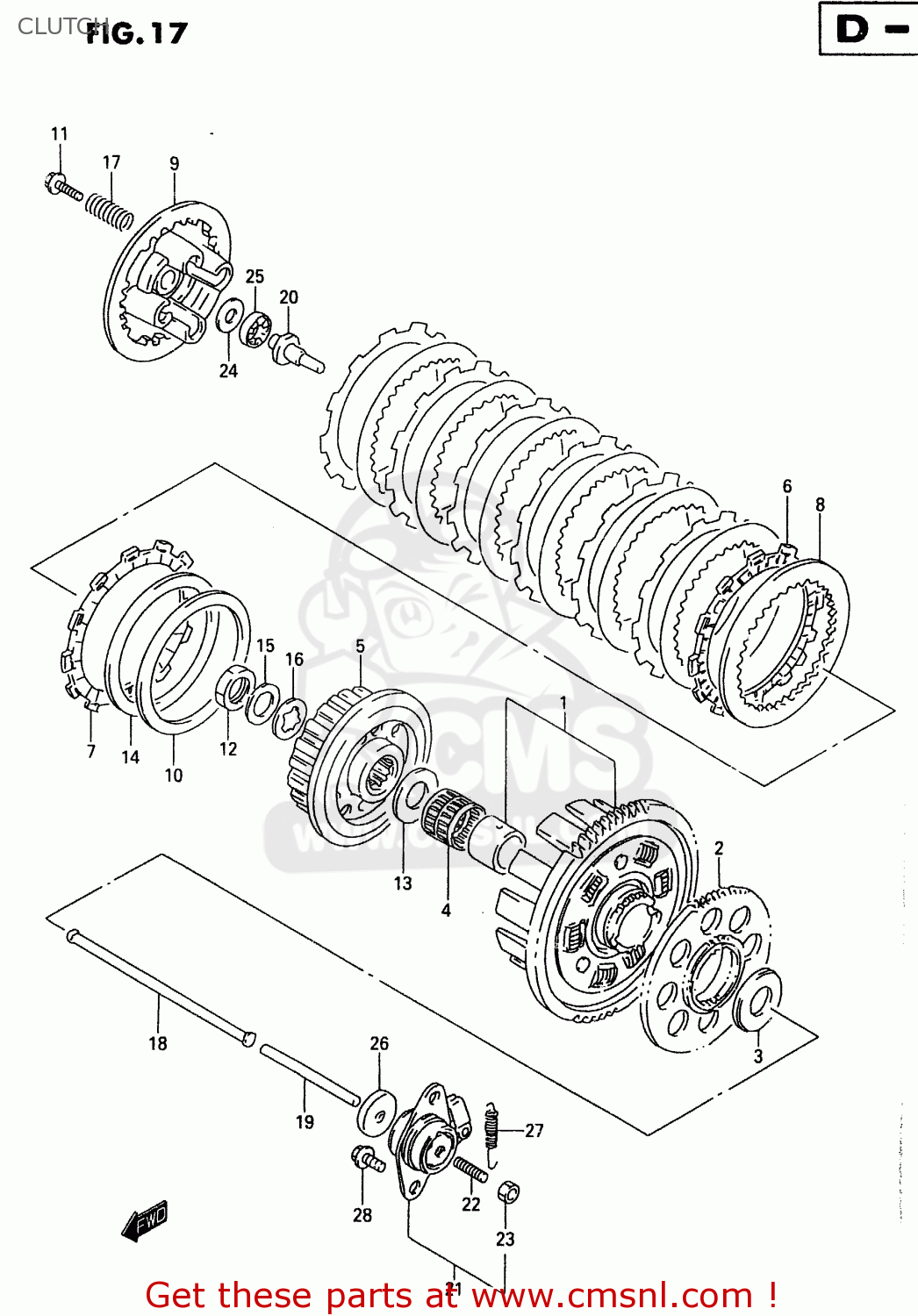

CLUTCH

ref

part #

description

quantity

1

2120026832
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 426.00

2

2272117D02
ref: 2

GEAR,GENERATOR DRIVE

€ 140.00

3

0916025037
ref: 3

WASHER(25X54X2.5)

€ 9.00

4

0926335017
ref: 4

BEARING(35X40X35.8)

€ 36.50

5

2141027A02
ref: 5

HUB,CLUTCH SLEEVE

€ 134.50

6

2144137430
ref: 6

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

7

2144237401
ref: 7

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

8

2145105A00
ref: 8

PLATE,CLUTCH DRIVEN (NAS)

€ 9.00

9

2146227A00
ref: 9

DISC,CLUTCH PRESSURE

€ 37.00

10

2147137400
ref: 10

SEAT,WAVE WASHER(T:1.4)

€ 8.00

11

0911606167
ref: 11

BOLT(6X20)

€ 2.00

12

0914022008
ref: 12

NUT

€ 4.50

13

0916025056
ref: 13

WASHER(25X50X2.5)

€ 9.50

14

0916400004
ref: 14

WASHER

€ 9.00

15

0916422007
ref: 15

WASHER

€ 5.00

16

0918122251
ref: 16

SHIM(22X36X1)

€ 3.50

17

0944020020
ref: 17

SPRING

€ 8.50

18

2311020C00
ref: 18

ROD,CLUTCH PUSH,R

€ 23.00

19

2311115501
ref: 19

ROD,CLUTCH PUSH,L

€ 11.50

20

2312127A00
ref: 20

PIECE,CLUTCH PUSH

€ 21.50

21

2320031300
ref: 21

SCREW ASSY,CLUTCH RELEASE

€ 104.50

22

0913406010
ref: 22

SCREW(6X25)

€ 3.00

23

0831000067
ref: 23

NUT

€ 2.50

24

0916015045
ref: 24

WASHER(15.5X28X1)

€ 4.00

25

0926315003
ref: 25

BEARING(15X28X2)

€ 7.00

26

0928506015
ref: 26

SEAL,OIL(6X34X5.5)

€ 8.50

27

0944307038
ref: 27

SPRING

€ 4.00

28

0155006163
ref: 28

BOLT

€ 2.50

all assemblies
