SIGNAL GENERATOR

GSX600FU 1998 (W) GERMANY (E22)

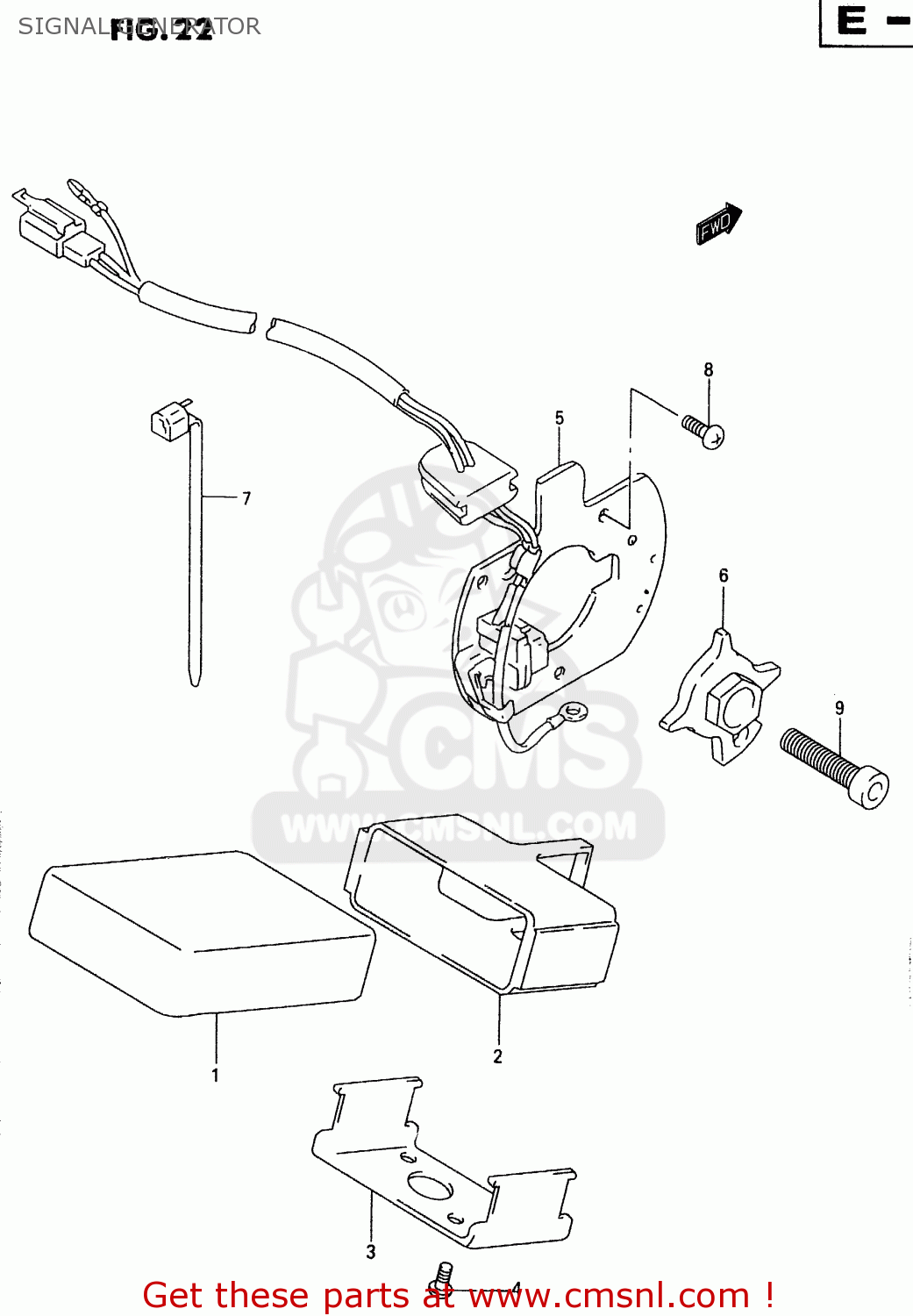

Signal generator diagram GSX600FU 1998 (W) GERMANY (E22)

SIGNAL GENERATOR GSX600FU 1998 (W) GERMANY (E22)

SIGNAL GENERATOR GSX600FU 1998 (W) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

3290008F30
ref: 1

IGNITER ASSY

€ 508.00

2

3298040C01
ref: 2

CUSHION,IGNITOR

€ 9.50

3

3293308F00
ref: 3

BRACKET,IGNITOR

€ 4.50

4

0211275103
ref: 4

SCREW

€ 1.50

5

3311017C00
ref: 5

GENERATOR ASSY,SIGNAL

€ 324.00

6

3312019C20
ref: 6

ROTOR,SIGNAL GENERATOR

€ 182.00

7

0940714403
ref: 7

CLAMP(L:125)

€ 2.50

8

0211205103
ref: 8

SCREW

€ 2.00

9

0713008303
ref: 9

BOLT

€ 3.00
