HEADLAMP (E4, E17, E22, E25, E34)

GSX600FU 1998 (W) GERMANY (E22)

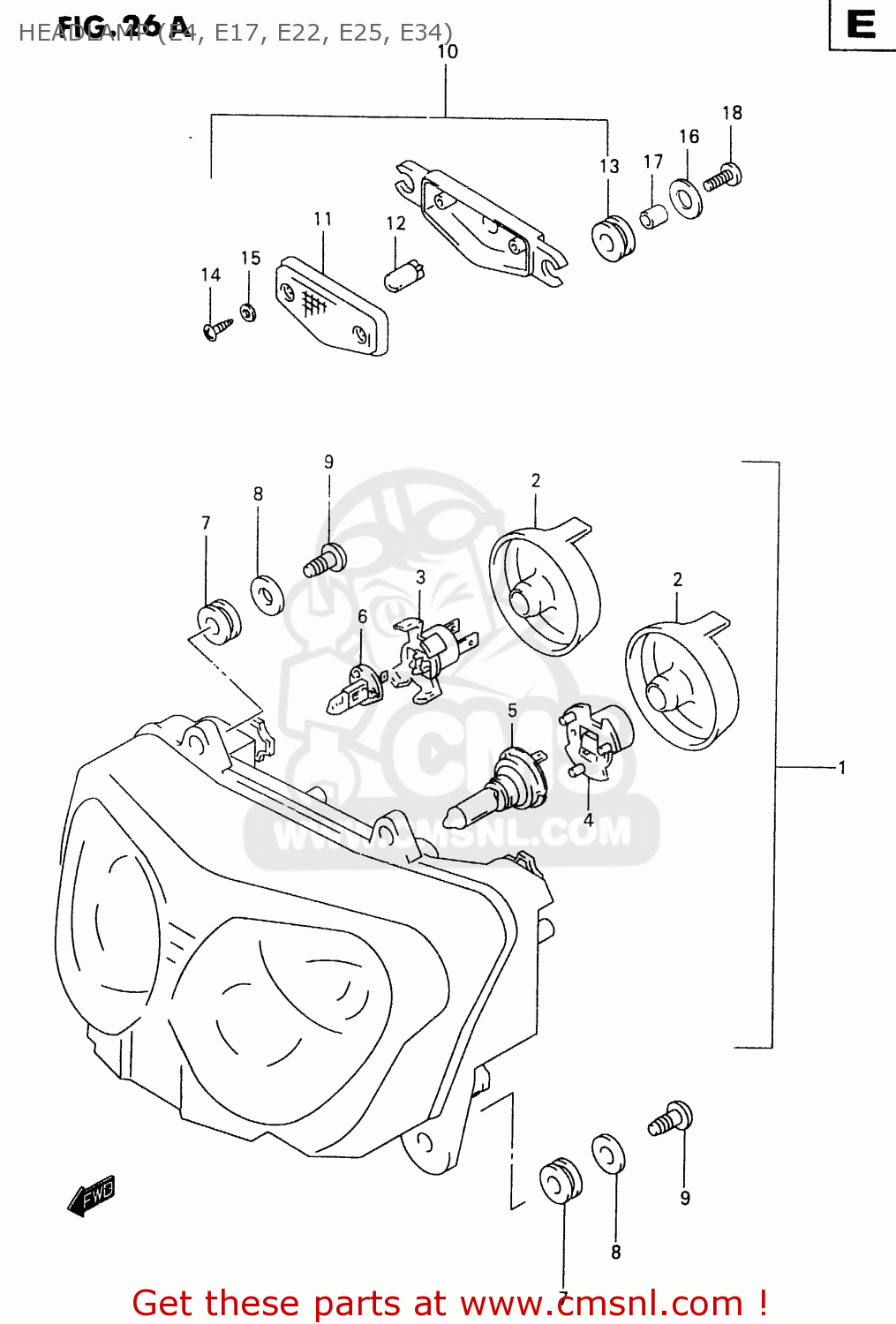

Headlamp (e4, e17, e22, e25, e34) diagram GSX600FU 1998 (W) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

3510008F10999
ref: 1

HEADLAMP ASSY

€ 472.00

3512574F00
ref: 2

COVER,SOCKET

€ 11.50

3517518E50
ref: 3
FOR 09471-12122

ADAPTER ASSY

€ 21.00

3417533E50
ref: 4
FOR 09471-12188

ADAPTER ASSY

€ 20.50

0947112188
ref: 5
PURCHASE LOCALLY, LH

BULB(12V55W/H7/PX26D/PHILIPS)

€ 12.50

0947112122
ref: 6
PURCHASE LOCALLY, RH

BULB(12V55W/H1/P14.5S/OSRA,PHI

€ 4.00

3513733E00
ref: 7

CUSHION,HEADLAMP

€ 3.00

0916005045
ref: 8

WASHER(5.5X18X1)

€ 2.00

0351105163
ref: 9

SCREW,SIDE HOL

€ 2.50

3611008F00
ref: 10

LAMP ASSY,FR POSITION

€ 59.50

3611208F00
ref: 11

LENS

€ 9.50

0947112081
ref: 12

BULB(12V5W)

€ 1.50

0932008001
ref: 13

CUSHION

€ 3.50

0321104123
ref: 14

SCREW

€ 1.50

3611708F00
ref: 15

WASHER

€ 3.50

0916005045
ref: 16

WASHER(5.5X18X1)

€ 2.00

0918005048
ref: 17

SPACER(5.5X8X10.5)

€ 2.00

0214205203
ref: 18

SCREW 5X20

€ 2.00
