HEADLAMP (E2)

GSX600FU 1998 (W) GERMANY (E22)

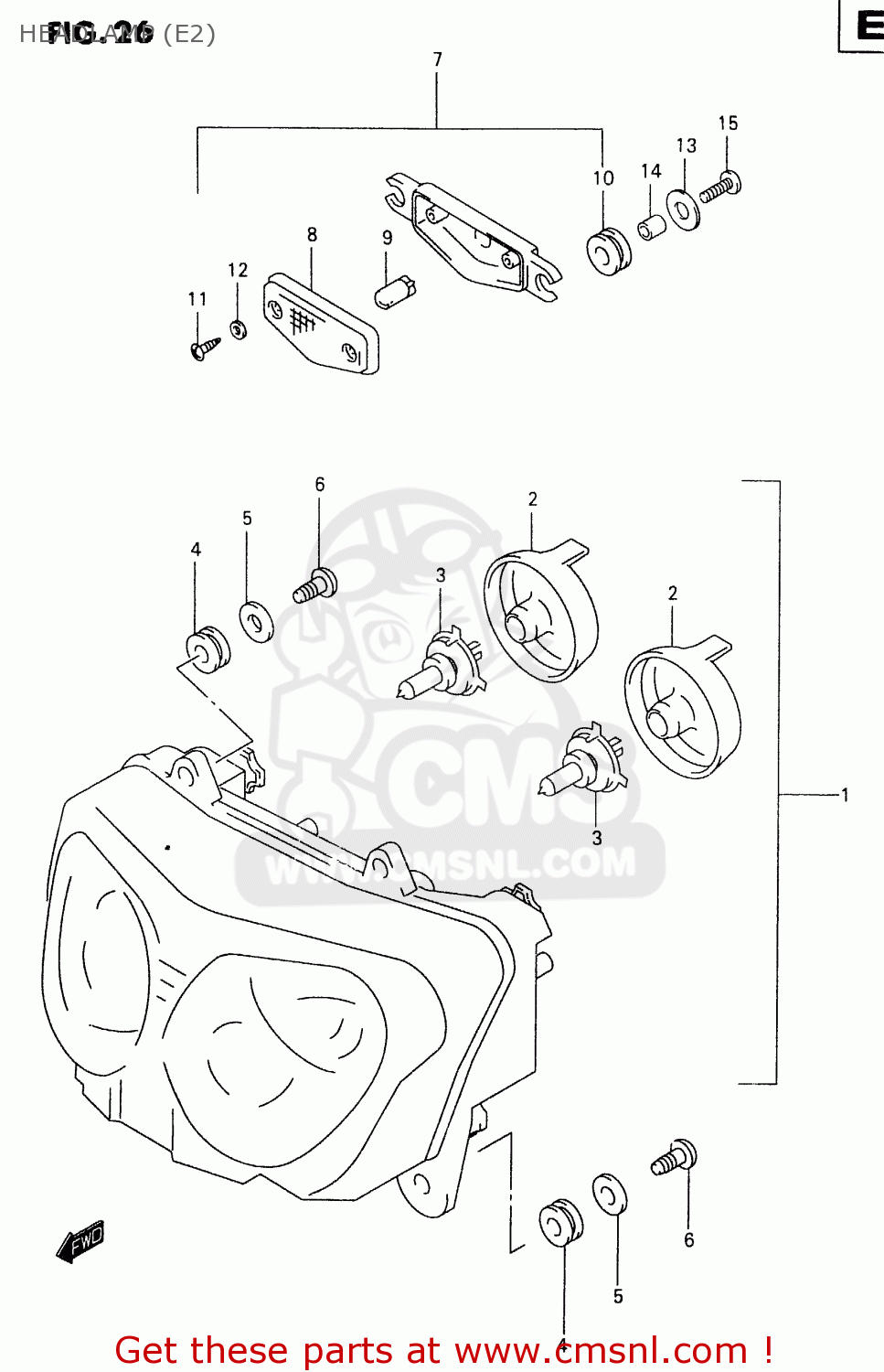

Headlamp (e2) diagram GSX600FU 1998 (W) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

3510008F00999
ref: 1

HEADLAMP ASSEMBLY

€ 437.00

3512574F00
ref: 2

COVER,SOCKET

€ 11.50

0947112185
ref: 3

BULB(12V60/55W,H4)

€ 8.00

3513733E00
ref: 4

CUSHION,HEADLAMP

€ 3.00

0916005045
ref: 5

WASHER(5.5X18X1)

€ 2.00

0351105163
ref: 6

SCREW,SIDE HOL

€ 2.50

3611008F00
ref: 7

LAMP ASSY,FR POSITION

€ 59.50

3611208F00
ref: 8

LENS

€ 9.50

0947112081
ref: 9

BULB(12V5W)

€ 1.50

0932008001
ref: 10

CUSHION

€ 3.50

0321104123
ref: 11

SCREW

€ 1.50

3611708F00
ref: 12

WASHER

€ 3.50

0916005045
ref: 13

WASHER(5.5X18X1)

€ 2.00

0918005048
ref: 14

SPACER(5.5X8X10.5)

€ 2.00

0214205203
ref: 15

SCREW 5X20

€ 2.00

HEADLAMP (E2)
