BATTERY

GSX750 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

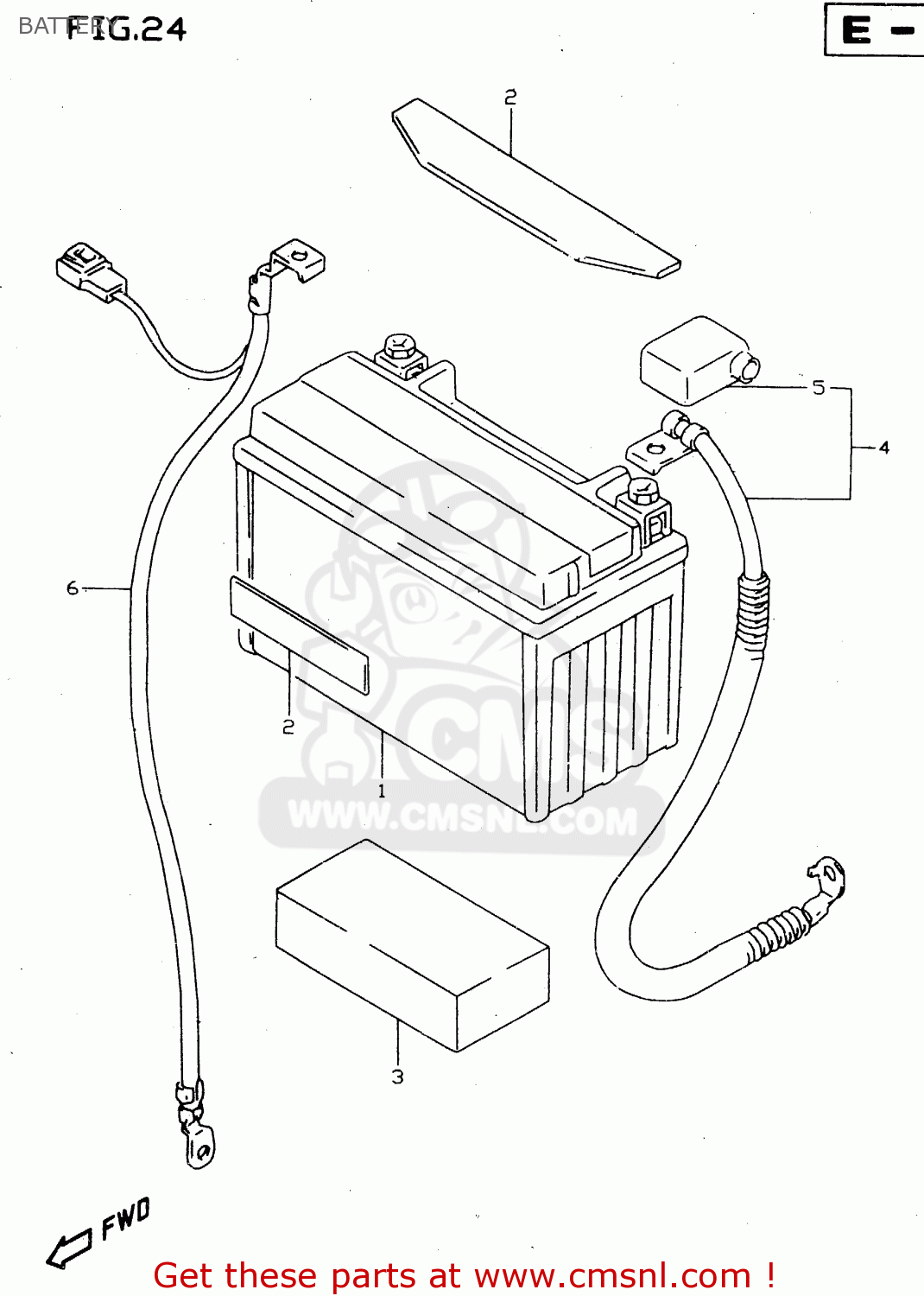

Battery diagram GSX750 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

BATTERY GSX750 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

BATTERY GSX750 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

2

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3

3365247D01
ref: 3

CUSHION,BATTERY

€ 7.00

4

3382003F00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 22.00

5

3362410D00
ref: 5

CAP,BATTERY PLUS

€ 4.00

6

3386003F00
ref: 6

WIRE,BATT. MIN

€ 17.50
