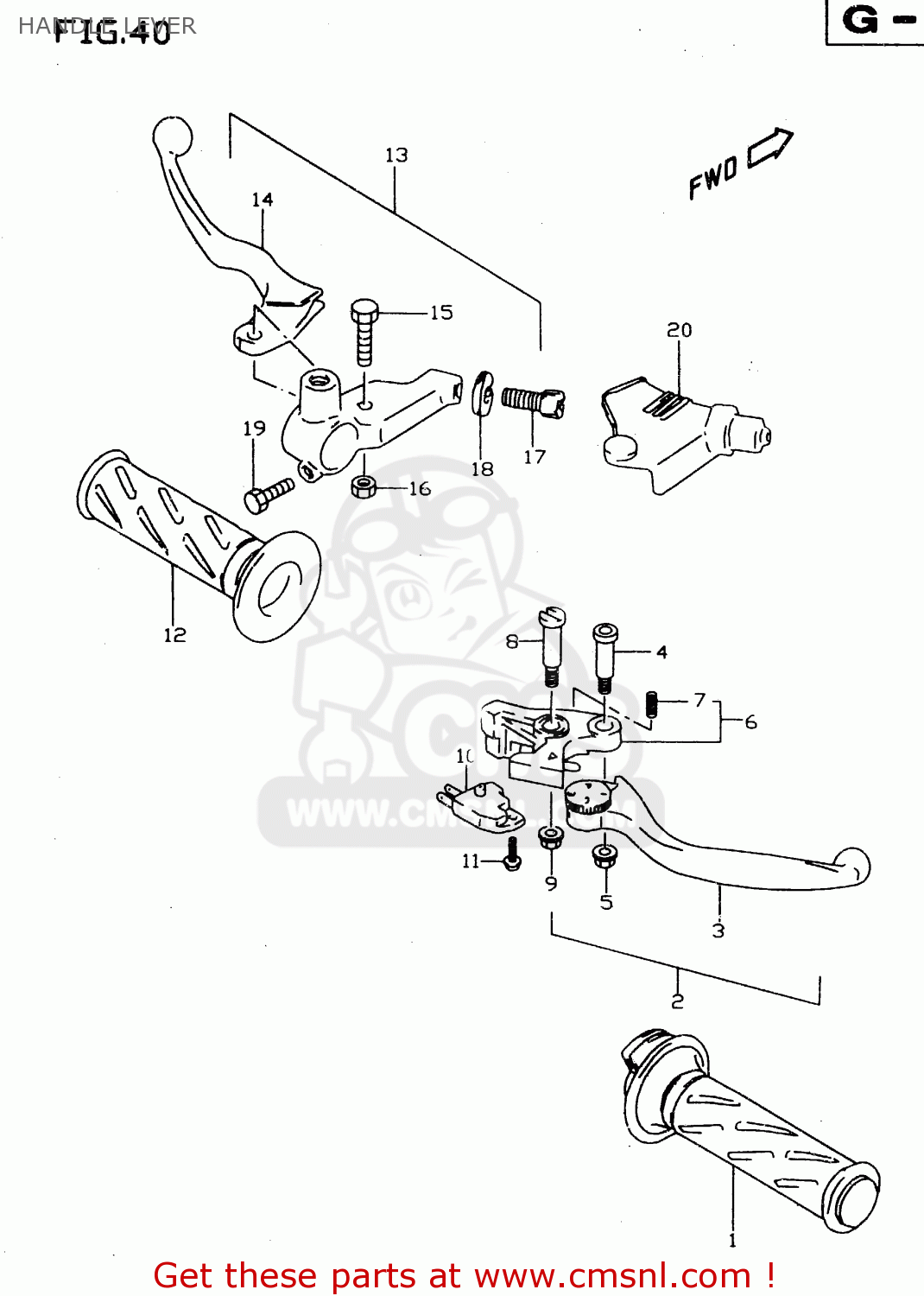

HANDLE LEVER

ref

part #

description

quantity

1

5711046E01
ref: 1

GRIP,THROTTLE

€ 26.00

2

5730040C10
ref: 2

LEVER ASSY,BRAKE

€ 75.00

3

5742032C00
ref: 3

LEVER,ADJUST

€ 39.50

4

5743732C01
ref: 4

BOLT,LEVER

€ 6.50

5

0831931063
ref: 5

NUT

€ 2.50

6

5743040C00
ref: 6
MODEL W

KNOCKER

€ 51.00

6

5743040C10
ref: 6
MODEL X

RNOCKER

€ 51.00

7

5743832C00
ref: 7

SPRING

€ 4.00

8

5743117C00
ref: 8

BOLT,LEVER PIVOT

€ 8.00

9

0831610063
ref: 9

NUT

€ 2.50

10

5746017C00
ref: 10

SWITCH ASSEMBLY,STOP

€ 32.50

11

5746517C00
ref: 11

SCREW

€ 1.50

12

5721122D01
ref: 12

GRIP,LEFT

€ 11.50

13

5750001D01
ref: 13

LEVER ASSY,CLUTCH

€ 59.00

14

5762001D00
ref: 14

LEVER,CLUTCH

€ 37.00

15

5753114A00
ref: 15

BOLT,LEVER SET

€ 8.50

16

0831921063
ref: 16

NUT

€ 2.50

17

5744111010
ref: 17

ADJUSTER,CABLE

€ 8.00

18

5744211010
ref: 18

NUT,CABLE ADJUSTER

€ 4.00

19

0154706203
ref: 19

SCREW

€ 2.50

20

5766133400
ref: 20

COVER,CLUTCH LEVER

€ 7.50

all assemblies
