HEADLAMP

GSX750 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

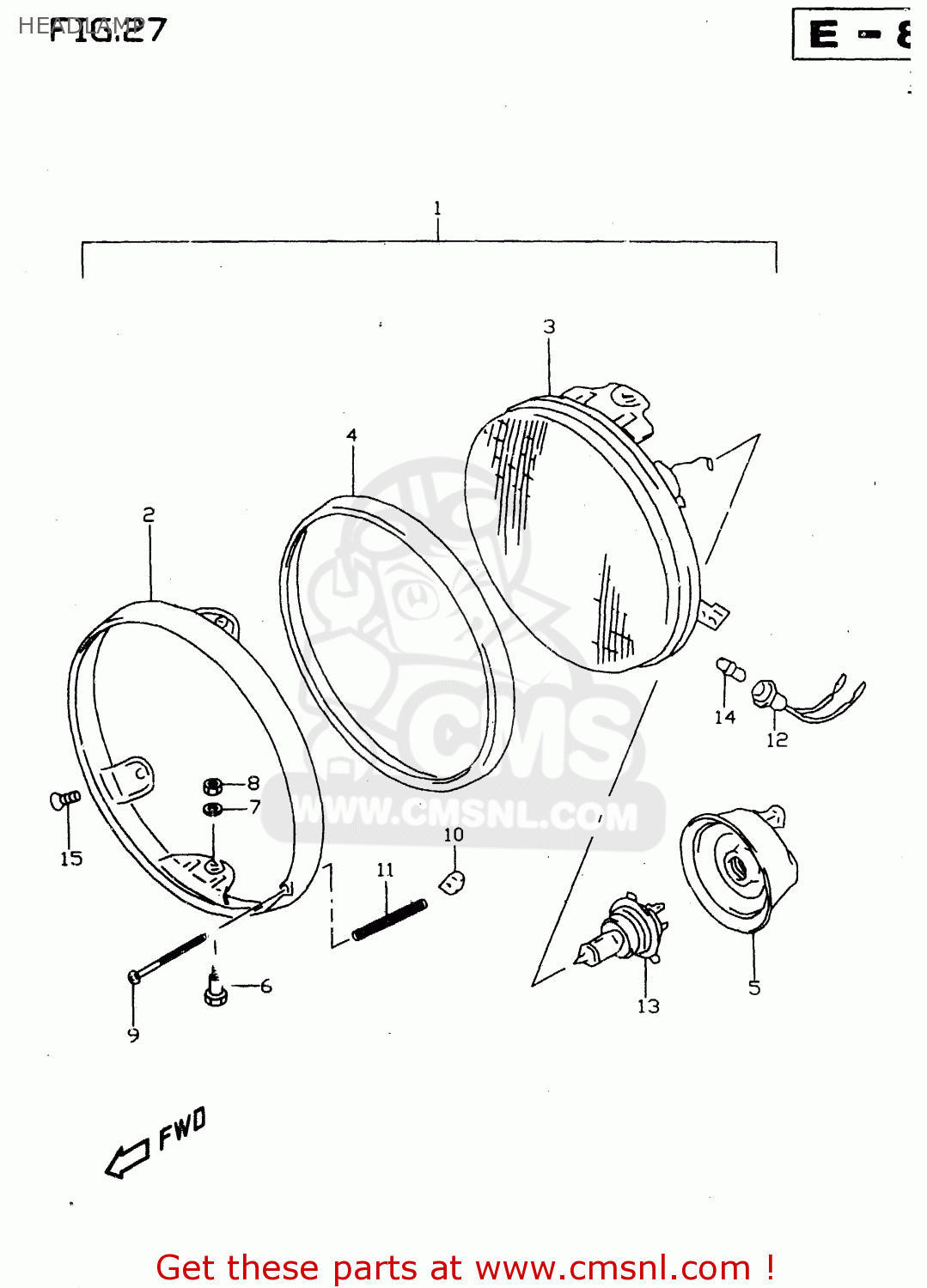

Headlamp diagram GSX750 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

3510026D20999
ref: 1

HEADLAMP ASSY

€ 175.50

3510026D51999
ref: 1
E4, E17, E18, E22, E

HEADLAMP ASSY

€ 272.00

3511101D20
ref: 2

RIM,HEADLAMP

€ 55.50

3512110D20
ref: 3

LAMP UNIT

€ 147.00

3512110D41
ref: 3
E4, E18, E22, E25, E

LAMP UNIT

€ 147.00

3512710D20
ref: 4

RING

€ 22.00

3517320A01
ref: 5

COVER,SOCKET

€ 14.50

3518115611
ref: 6

H/LAMP LENS UNIT FITING SCRE

€ 3.00

0832101057
ref: 7

WASHER,LOCK

€ 2.00

0831000043
ref: 8

NUT

€ 2.00

3515145900
ref: 9

SCREW

€ 4.00

3515215611
ref: 10

NUT

€ 3.50

3515431900
ref: 11

SPRING,ADJUSTING

€ 3.50

3611826D50
ref: 12

SOCKET,PARKING LAMP

€ 19.00

0947112060
ref: 13

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 14

BULB(12V4W)

€ 6.00

0912605003
ref: 15

SCREW(5X12)

€ 2.50
