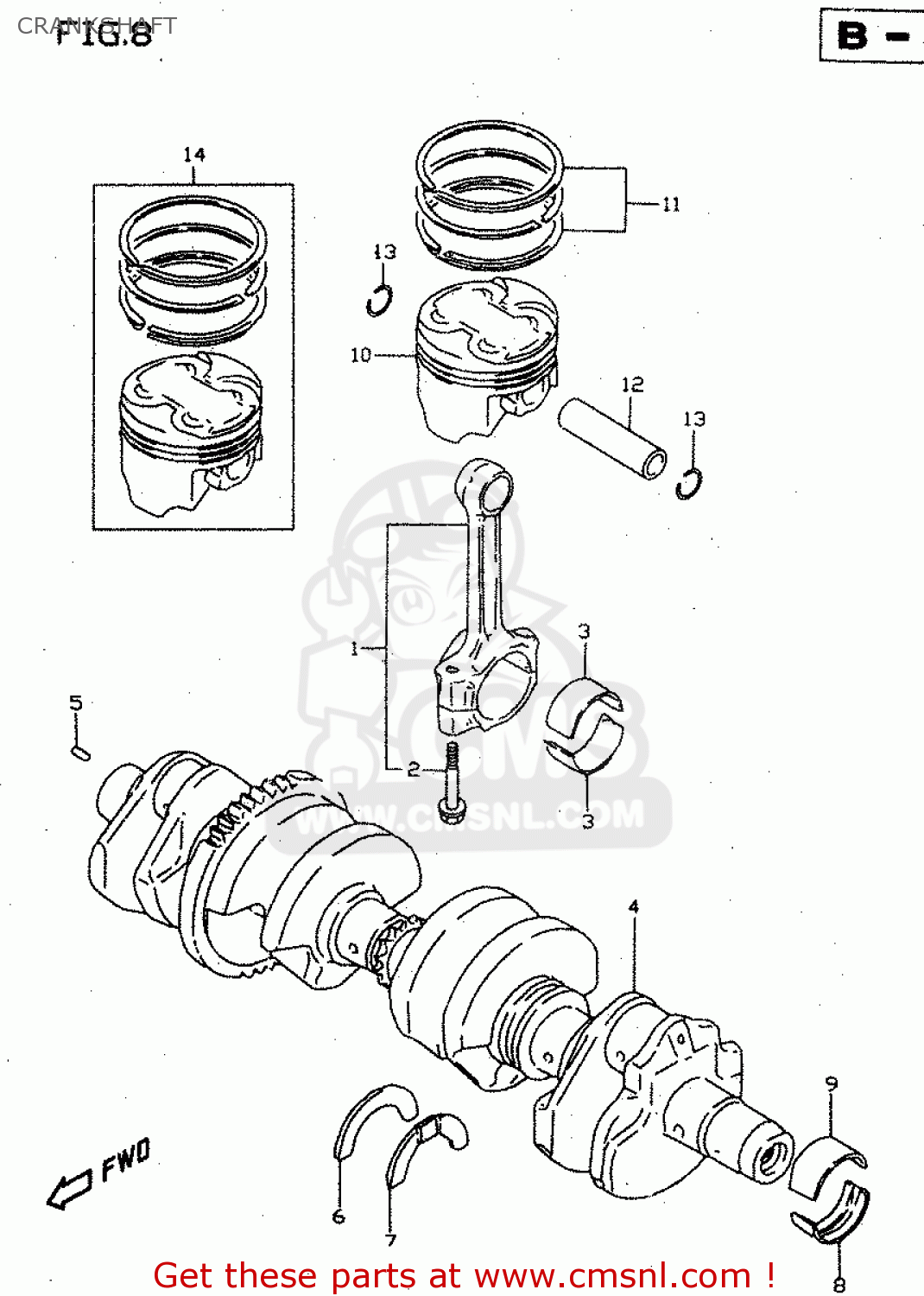

CRANKSHAFT

ref

part #

description

quantity

1

1216017E00
ref: 1
~E.NO.R730-102300, ~

CONNECTING ROD ASSEMBLY

€ 197.00

1

1216017E01
ref: 1
E.NO.R730-102301~, E

CONNECTING ROD ASSY

€ 197.00

2

1216327A52
ref: 2

BOLT,CONNECTING ROD

€ 20.00

3

1216426E000A0
ref: 3

BEARING,CRANK PIN

€ 8.00

3

1216426E000B0
ref: 3

BEARING,CRANK PIN

€ 14.50

3

1216426E000C0
ref: 3

BEARING,CRANK PIN

€ 15.00

3

1216426E000D0
ref: 3

BEARING,CRANK PIN

€ 15.50

4

1220003810
ref: 4
MODEL W

CRANKSHAFT SET

€ 1,238.50

4

1200003810
ref: 4
MODEL X

CRANKSHAFT SET

€ 1,238.50

5

0422104089
ref: 5

PIN

€ 1.50

6

1222843414
ref: 6

PLATE,CRANK THRUST

€ 9.50

7

1222843411
ref: 7

PLATE,CRANK THRUST

€ 8.50

7

1222843412
ref: 7

PLATE,CRANK THRUST

€ 8.50

7

1222843413
ref: 7

PLATE,CRANK THRUST

€ 8.00

7

1222843414
ref: 7

PLATE,CRANK THRUST

€ 9.50

7

1222843415
ref: 7

BEARING,THRUST

€ 8.50

7

1222843416
ref: 7

PLATE,CRANK THRUST

€ 9.50

8

1222927A000A0
ref: 8
LOWER

BEARING,CRANKSHAFT LWR

€ 12.00

8

1222927A000B0
ref: 8

BEARING,CRANKSHAFT LWR

€ 12.00

8

1222927A000C0
ref: 8

BEARING,CRANKSHAFT LWR

€ 12.00

8

1222927A000D0
ref: 8

BEARING,CRANKSHAFT LWR

€ 12.00

9

1222927A100A0
ref: 9
UPPER

BEARING,CRANKSHAFT UPR

€ 12.00

9

1222927A100B0
ref: 9

BEARING,CRANKSHAFT UPR

€ 12.00

9

1222927A100C0
ref: 9

BEARING,CRANKSHAFT UPR

€ 12.00

9

1222927A100D0
ref: 9

BEARING,CRANKSHAFT UPR

€ 11.50

10

1211103F000F0
ref: 10

PISTON

€ 79.00

11

1214003F00
ref: 11

RING SET,PISTON

€ 88.00

12

1215107D00
ref: 12

PIN,PISTON

€ 13.50

13

0938118003
ref: 13

CIRCLIP

€ 3.00

14

1210003F00050
ref: 14
OPT

PISTON SET(OS:0.5)

€ 135.00

14

1210003F00100
ref: 14
OPT

PISTON SET (OS:1.0)

€ 112.50
