FRAME COVER (MODEL W/X)

GSX750F KATANA 2002 (K2) USA (E03)

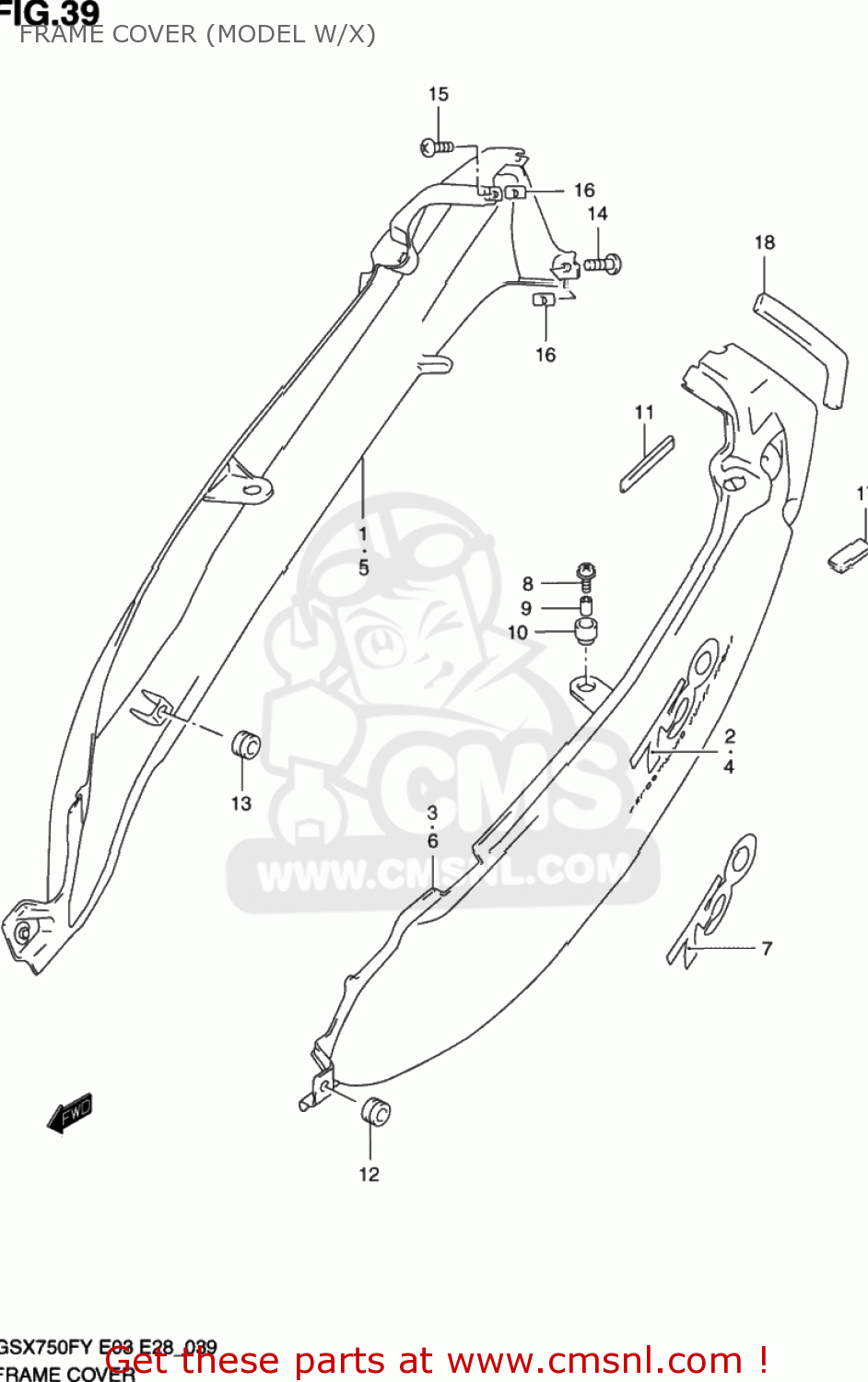

Frame cover (model w/x) diagram GSX750F KATANA 2002 (K2) USA (E03)

FRAME COVER (MODEL W/X) GSX750F KATANA 2002 (K2) USA (E03)

FRAME COVER (MODEL W/X) GSX750F KATANA 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711008F1033J
ref: 1-1

COVER,FRAME,R(BLACK)

€ 183.50

1-2

4711008F10Y4M
ref: 1-2

COVER,FRAME,R(MAROON)

€ 183.50

2-1

6813108F10K5T
ref: 2-1

EMBLEM,FRAME COVER,R

€ 19.00

2-2

6813108F10K5V
ref: 2-2

EMBLEM,FRAME COVER,RIGHT

€ 19.00

3-1

4721008F1033J
ref: 3-1

COVER,FRAME,L(BLACK)

€ 31.50

3-2

4721008F10Y4M
ref: 3-2

COVER,FRAME,L(MAROON)

€ 183.50

4-1

6814108F10K5T
ref: 4-1

EMBLEM,FRAME COVER,L

€ 15.00

4-2

6814108F10K5V
ref: 4-2

EMBLEM,FRAME COVER,L

€ 15.00

5-1

4711008F30Y4M
ref: 5-1

COVER,FRAME,R(MAROON)

€ 171.00

5-2

4711008F30Y7H
ref: 5-2

COVER,FRAME,R(BLUE)

€ 119.00

6-1

4721008F30Y4M
ref: 6-1

COVER,FRAME,L(MAROON)

€ 181.50

6-2

4721008F30Y7H
ref: 6-2

COVER,FRAME,L(BLUE)

€ 181.50

7-1

6813108F30M4Z
ref: 7-1

EMBLEM,FRAME COVER

€ 14.50

7-2

6813108F30M5A
ref: 7-2

EMBLEM,FRAME COVER

€ 15.00

8

0913606105
ref: 8

SCREW(6X20)

€ 2.00

9

0918006286
ref: 9

SPACER(6.5X10X9.4)

€ 2.50

10

0932010045
ref: 10

CUSHION

€ 3.50

11

9447638C00
ref: 11

CUSHION,UNDER COWLING NO.1

€ 2.00

12

0932008028
ref: 12

CUSHION

€ 2.50

13

0932008018
ref: 13

CUSHION

€ 4.00

14

0324115163
ref: 14
03241-1516A

SCREW

€ 2.00

15

0324115123
ref: 15
03241-1512B

SCREW

€ 2.50

16

0914805038
ref: 16

NUT

€ 2.50

17

4489424A00
ref: 17

CUSHION

€ 1.50

18

4716108F00
ref: 18

CUSHION,FRAME COVER

€ 6.00
