UNDER COWLING (MODEL W/X/Y)

GSX750F KATANA 2002 (K2) USA (E03)

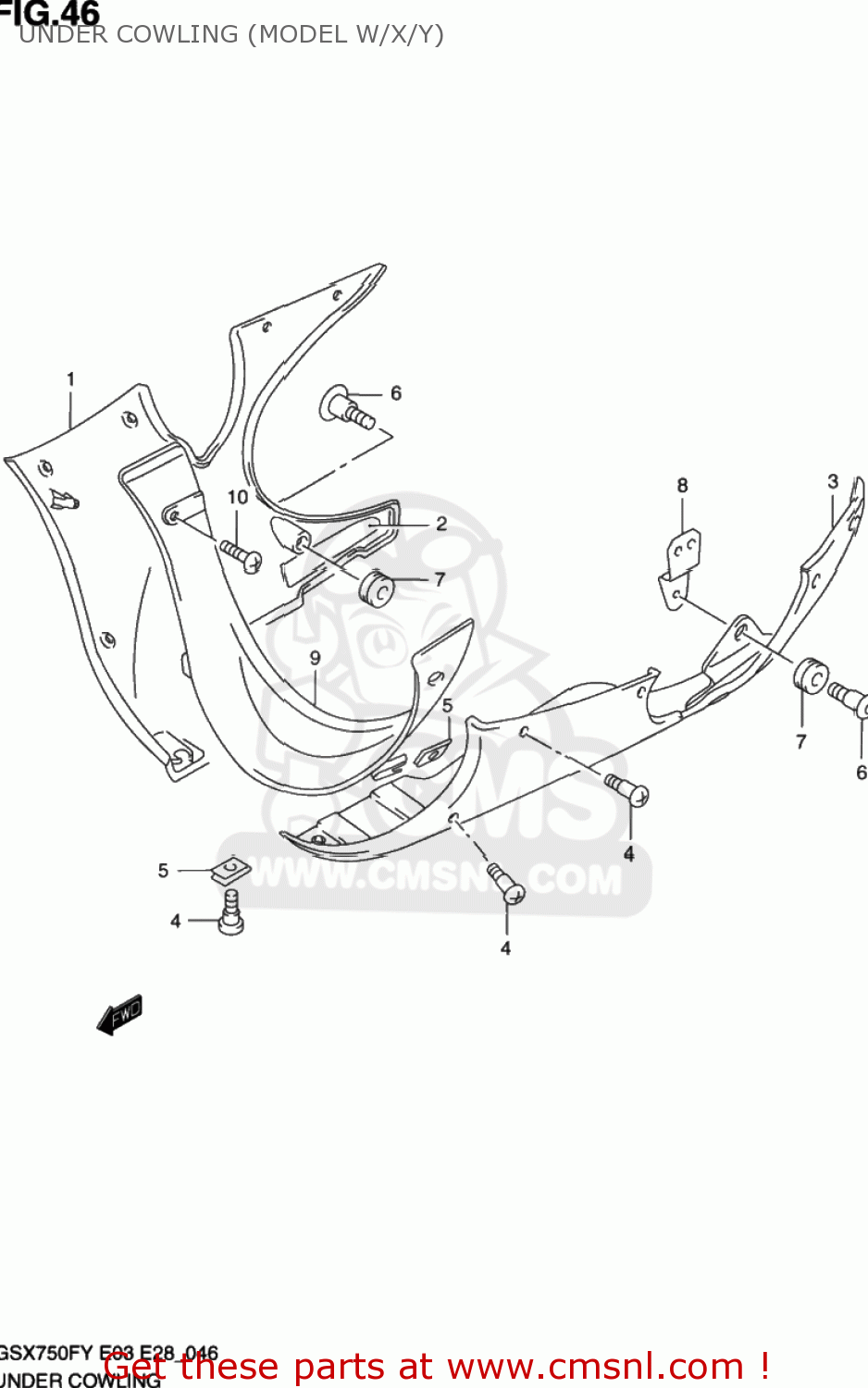

Under cowling (model w/x/y) diagram GSX750F KATANA 2002 (K2) USA (E03)

UNDER COWLING (MODEL W/X/Y) GSX750F KATANA 2002 (K2) USA (E03)
UNDER COWLING (MODEL W/X/Y) GSX750F KATANA 2002 (K2) USA (E03)
UNDER COWLING (MODEL W/X/Y) GSX750F KATANA 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9447008F00Y4P
ref: 1-1
COWLING,UNDER,R(GRAY)
9447008F00Y4P
€ 737.50
1-2
9447008F00Y7L
ref: 1-2
COWLING,UNDER,R(BLACK)
9447008F00Y7L
€ 148.50
2
9447208F00
ref: 2
SHIELD,COWLING UNDER,R NO.1
9447208F00
€ 9.00
3-1
9448108F00Y4P
ref: 3-1
COWLING,UNDER,L
€ 168.50
3-2
9448108F00Y7L
ref: 3-2
COWLING,UNDER,L
€ 168.50
4
0913905054
ref: 4
SCREW(5X16)
0913905054
€ 6.00
5-1
9448432B00
ref: 5-1
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
5-2
9448424F00
ref: 5-2
NUT,COWL
9448424F00
€ 4.00
6
0913906087
ref: 6
09139-06126
SCREW(6X20)
0913906087
€ 4.00
7
0932009016
ref: 7
CUSHION
0932009016
€ 2.50
8
9457008F00
ref: 8
BRACKET,UNDER COWL,L & FRAME
€ 7.00
9
9447508F00
ref: 9
COWLING,UNDER CTR
9447508F00
€ 54.00
10
0354105123
ref: 10
03541-0512A
SCREW
0354105123
€ 2.00
